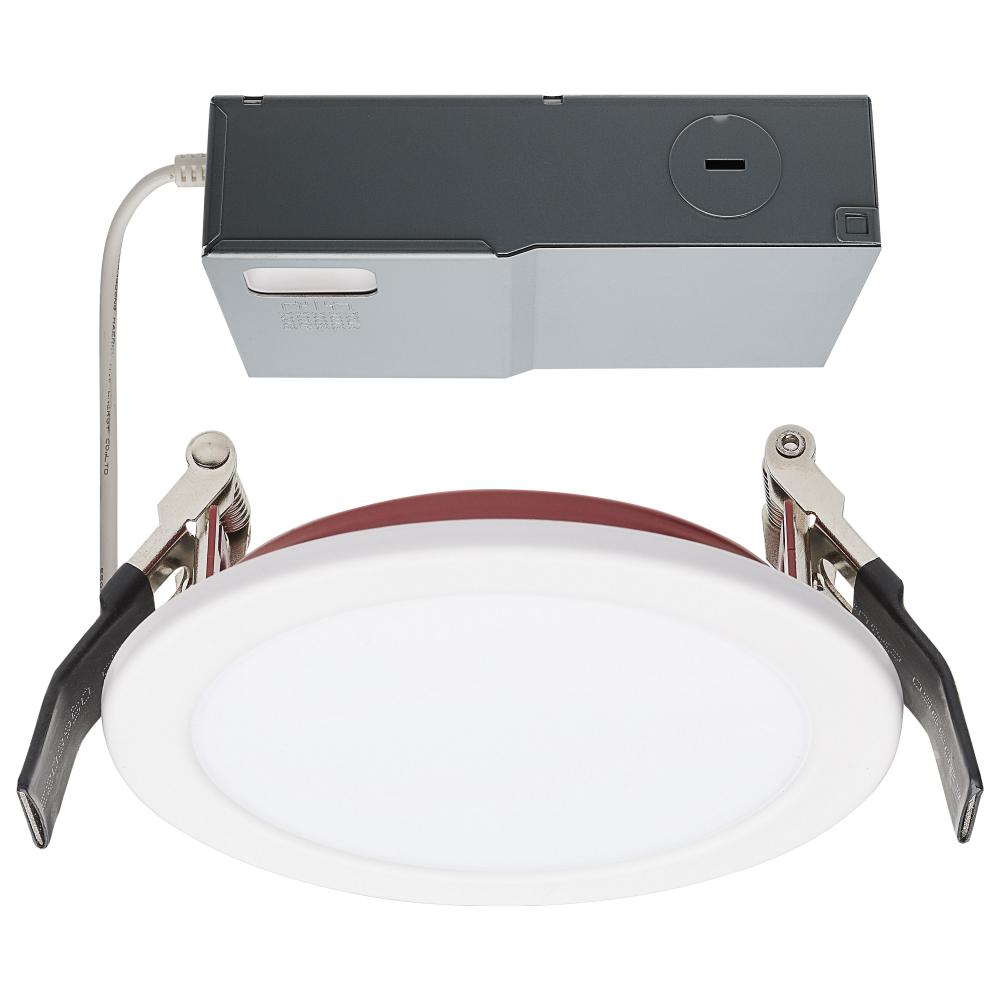

10 Watt LED; Fire Rated 4 Inch; Direct Wire Downlight; Round Shape; White Finish; CCT Selectable; (X3QDD)

Image may not reflect selected features
No Image
Available
10 Watt LED; Fire Rated 4 Inch; Direct Wire Downlight; Round Shape; White Finish; CCT Selectable;
additional image
BASE PRICE:
$
44
50
/ / 1
($44.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3QDD
Dimensions:
Height: 0.69"
Width: 4.75"
White / Red
Availability:
  • Manufacturer has 4013 items available.
Recommended Items
Description
Details
Downloads
10 Watt LED; Fire Rated 4 Inch; Direct Wire Downlight; Round Shape; White Finish; CCT Selectable; 120-277 Volts; Dimmable
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
Combination Finishes , White , Red
Option:
Energy Star , LED , Prop 65
Lumens:
450-800
Kelvin:
4001-4500
Category:
Recessed
Sub Category:
Direct Wire
Style:
Specialty
Additional Info:
2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07; White Trim/Red Backplate
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
4.75
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.6010
Lumens:
800L
Ship Carton Height:
6.1
Ship Carton Length:
5.83
Ship Carton Width:
2.68
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.083-0.036A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
110
CA Prop-65:
Lead
Carton Cubic Feet:
0.0552
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
3.875 in. Cutout
Clearance Height:
4.134
Connection:
Direct Wired
Country Of Origin:
Cambodia
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
Efficacy:
80.00 LPW
Enclosure Rating:
No
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2473604
FCC Compliant:
Yes
Feature 1:
Fire rated up to 2-hours
Feature 2:
Red painted backplate for easy identification
Feature 3:
5 CCT Selectable
Feature 4:
90 CRI
Feature 5:
Wet Location Rated
Feature 6:
Dimmable
Feature 7:
IC Rated
Feature 8:
Air Tight Rated
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's Dual Mode 4 inch Flat Lens Fire Rated Downlight is the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, this downlight provides two hours of protection in the event of a fire. Inc
Material:
Aluminum / Steel
Max Drywall Thickness:
1.181 in.
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
61
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's Fire Rated Downlights are the perfect solution for installations with low ceiling clearance. Designed to provide exceptional illumination, these downlights provide two hours of protection in the event of a fire. Increase safety and peace o
Safety Listing:
cULus - Certified
SDS class:
LED_Lamp
Short Description:
10WLED/4/CFR/CCT/SLF/RD/FL/RND
Sloped Ceiling Compatible:
No
Specification Notes:
Driver Dimensions: 4.50" x 3.00" x 1.25"
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Trim Color:
White
Trim Material:
Metal
Wattage Selectable:
No
Weight Lb.:
1.2
