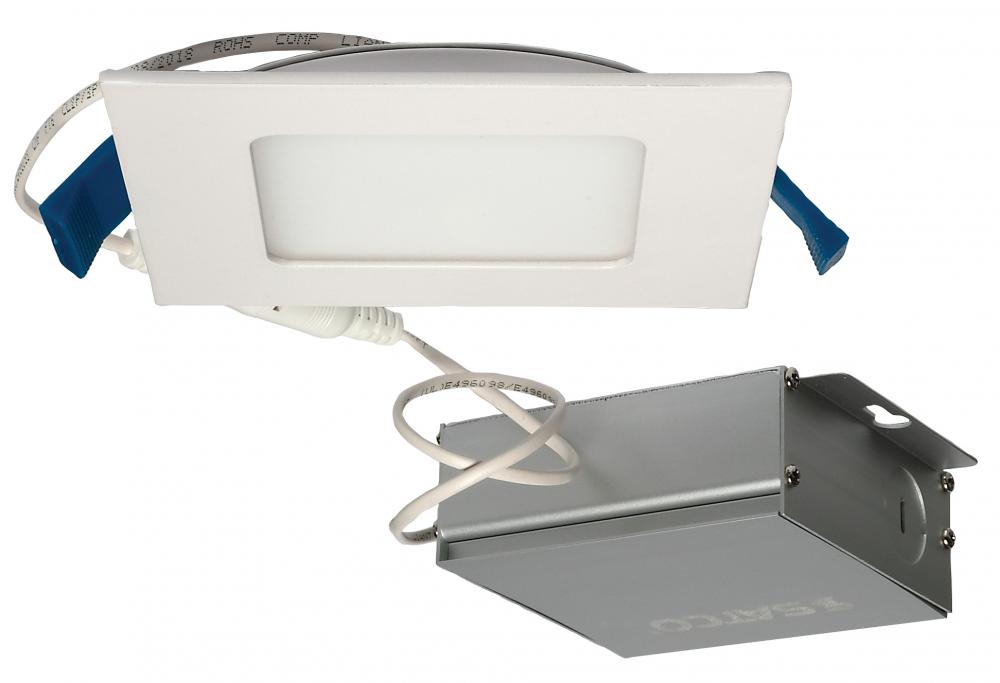

10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote (X3FMX)

Image may not reflect selected features
No Image
Available
10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote
BASE PRICE:
$
37
50
/ / 1
($37.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3FMX
Dimensions:
Height: 0.94"
Width: 4.75"
White
Availability:
  • Manufacturer has 415 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Recommended Items
Description
Details
Downloads
10 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable; Square; Remote Driver
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
LED , Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Additional Info:
Integrated j-box for direct wire installation
Bulb Hours:
50000
Bulb Kelvin:
Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Length:
4.75
Lumens:
620L
Ship Carton Height:
5.39
Ship Carton Length:
6.65
Ship Carton Width:
2.13
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.083A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
108
CA Prop-65:
Lead
Carton Cubic Feet:
0.0442
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
4.125 in. Cutout
Clearance Height:
2
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy:
62.00 LPW
FCC Compliant:
Yes
Finish Family:
White
Fixture shape:
Square
Has Driver:
Yes
IC Rated:
Yes
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
Installation Notes:
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Material:
Aluminum
Max Drywall Thickness:
5/8 in.
Mounting Procedure:
Ceiling
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
Rec Spacing Between Fixtures:
3 ft. to 4 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
10WLED/DW/EL/4/940/SQ/RD
Sloped Ceiling Compatible:
No
Temperature (CCT):
4000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.82
