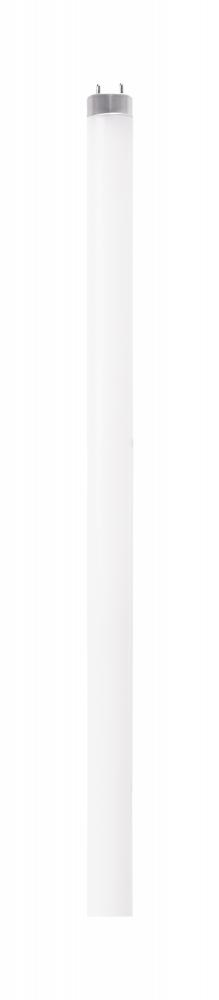

11 Watt T8 LED; 3500K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required (LNDL6)

Image may not reflect selected features
No Image
Available
11 Watt T8 LED; 3500K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required
additional image
BASE PRICE:
$
12
50
/ / 1
($12.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LNDL6
Dimensions:
Width: 1.00"
White
Availability:
  • Manufacturer has 3529 items available.
Description
Details
Downloads
11 Watt T8 LED; 3500K; 120-277 Volt; Medium Bi Pin base; Type C; External Driver required
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
1101-1600
Kelvin:
3501-4000
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3500K
Bulb Shape:
T8
Diameter:
1
EA Length:
35.7
Harmonized Codes:
8539.52.0051
Length:
36
Lumens:
1600L
Shap Carton Width:
1
Ship Carton Height:
1
Ship Weight:
0.34
Warranty:
5 Year Limited - LED Type C Bulbs
Weight:
0.34
AC/DC:
120-277VAC 39VDC 290mA
Additional Info:
Not for emergency lighting
BAA Compliant:
No
Ballast Bypass Direct:
Replace with external driver
Ballasting Requirements:
Ballast replaced with external driver
Beam Spread:
220
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0207
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White
Country Of Origin:
China
CRI:
82
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLE306JZGWQU
DLC Primary Use:
2-lamp External Driver (UL Type C) Lamps
Efficacy:
145.45 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Neutral white light
Feature 2:
Damp rated for indoor use
Feature 3:
Enclosed Rated Lamp
Feature 4:
L:36.00 D:1.00
Feature 5:
T8, Frosted Finish
Flourescent Equivalent:
25W
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C:
Type C
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Long Description:
SATCO|NUVO's S11935 11-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this
Material:
Glass
Nominal Length:
36
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 11-watt LED, T8 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp de
SDS class:
LED_Lamp
Short Description:
11T8/LED/36-835/XD
Style:
Utility
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
20%
Tube Guard Use:
Yes
Wattage Selectable:
No
Watts:
11W
