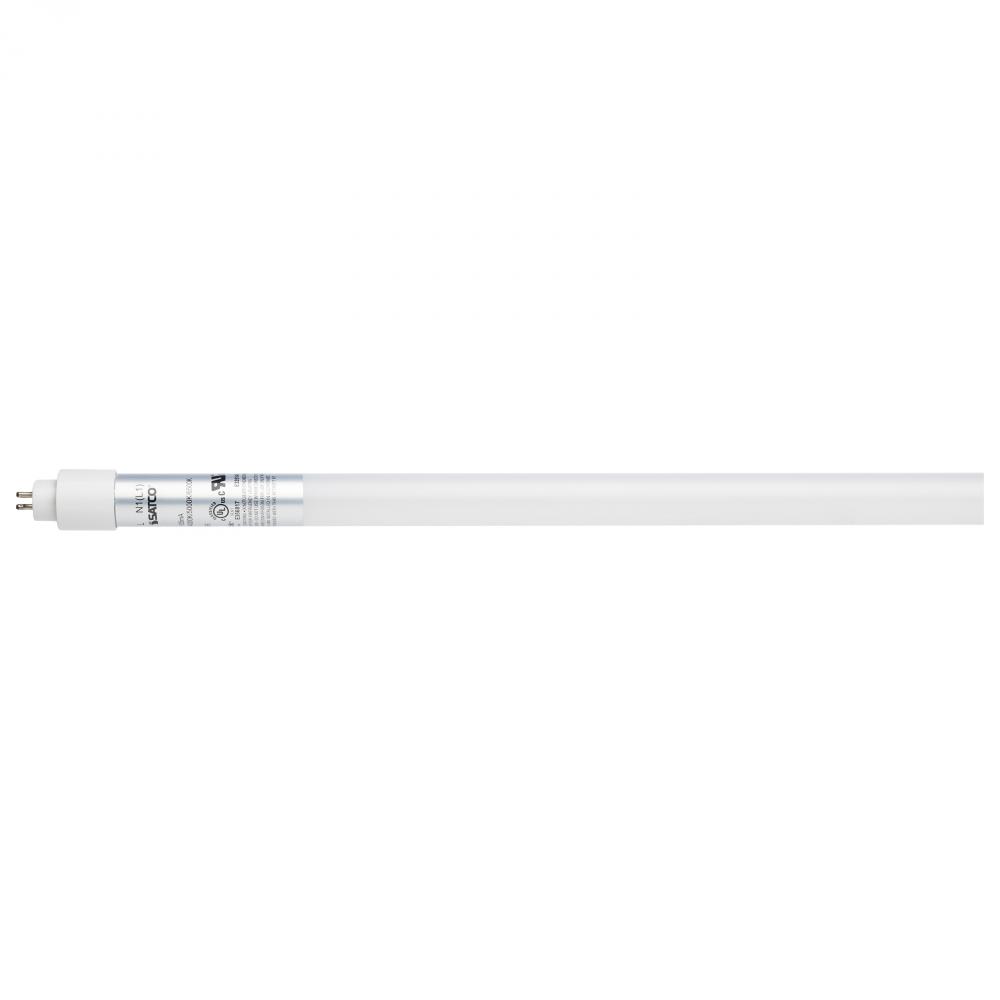

12 Watt 2 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended (X6J9P)

Image may not reflect selected features

No Image
Available

12 Watt 2 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended

BASE PRICE:

/ / 1

($20.50 / 1)

WAS

Call for Price

Item #:

X6J9P

Dimensions:

Width: 0.88"

Finish Family:

White

Availability:

Manufacturer has 2303 items available.

Description

Details

Downloads

12 Watt 2 Foot T5 LED; CCT Selectable; G5 Base; Type B; Ballast Bypass; Single or Double Ended Wiring; White Finish; 120-277 Volt

Category:

Light Bulbs

Subcategory:

Fluorescent Light Bulbs

Lumens:

1101-1600

Kelvin:

3001-3500

Wattage:

12w

Category:

LED

Sub-Category:

LED T5

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

Diameter:

0.88

EA Length:

21.65

Harmonized Codes:

8539.52.0051

Length:

22.17

Lumens:

1500L/1575L/1600L/1650L/1550L

Shap Carton Width:

0.87

Ship Carton Height:

0.87

Ship Weight:

0.34

Warranty:

5 Year Limited - T5 LED Bulbs - Ballast Bypass

Weight:

0.2

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

160

Bulb ANSI Base:

Bulb Base:

Miniature Bi Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0095

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

China

CRI:

DLC Approved:

Efficacy:

125.00/131.25/137.50 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

2-foot length

Feature 2:

24-Watt Fluorescent equivalent

Feature 3:

1650 max lumens

Feature 4:

Range voltage: 120V-277V

Feature 5:

Wiring: Single Ended, Double Ended

Feature 6:

Enclosed Fixture Rated

Feature 7:

Beam angle of 160 degrees

Feature 8:

Functional life of 50,000 hours

Feature 9:

Type B Ballast Bypass

Flourescent Equivalent:

24W

Housing Color:

White

Incandescent Equivalent:

60W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Lens Finish:

Frost

Lens Material:

Glass

Location Rating:

Damp

Long Description:

The Satco S11563 LED T5 lamp is a durable and functional lighting solution for a variety of applications. Its sleek, white design and shatterproof PET glass construction make it ideal for use in high-traffic areas and damp locations, such as bathrooms and

Material:

Plastic

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO LED T5 lamps are the perfect replacement for fluorescent tubes. They are easy to install, energy efficient, and long-lasting. Available in 2-foot, 3-foot, and 4-foot lengths, these lamps are also five CCT selectable, so you can choose the perfec

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

12T5/LED/24-CCT/BP/HO/SE-DE

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

<25%

Tube Guard Use:

Wattage Selectable:

Watts:

12W
