12 Watt Commercial LED Downlight; 4 in.; CCT Adjustable; 120-277 volt; Econo (X3GLR)

Image may not reflect selected features
No Image
Available

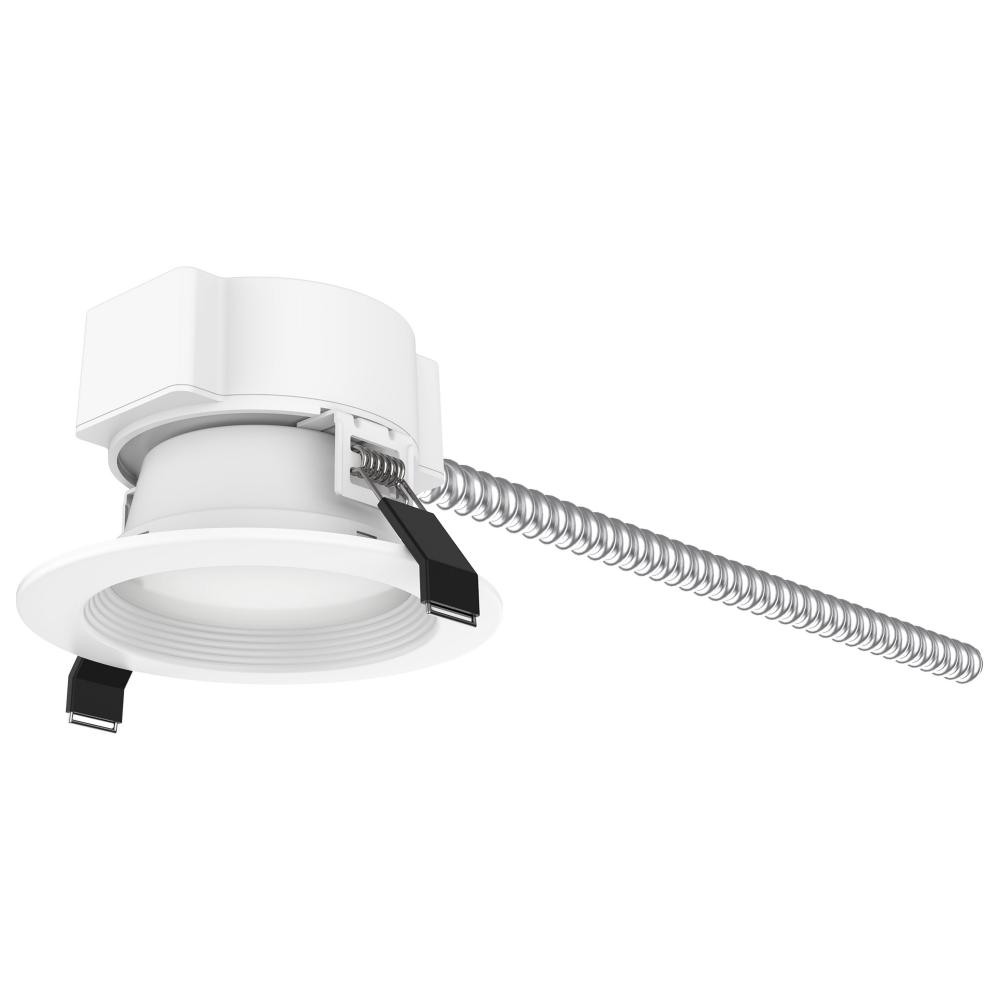

12 Watt Commercial LED Downlight; 4 in.; CCT Adjustable; 120-277 volt; Econo
additional image
BASE PRICE:
$
44
50
/ / 1
($44.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3GLR
Dimensions:
Height: 3.16"
Width: 4.96"
White
Availability:
  • Manufacturer has 234 items available.
Recommended Items
Description
Details
Downloads
12 Watt Commercial LED Downlight; 4 in.; CCT Adjustable; 120-277 volt; Econo
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Energy Star , LED , Prop 65
Lumens:
1101-1600
Kelvin:
4001-4500
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm to Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
4.96
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.42.6000
Lumens:
1200L
Ship Carton Height:
7.09
Ship Carton Length:
5.51
Ship Carton Width:
4.33
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.120A
ANSI Base:
Integrated
Beam Spread:
90
CA Prop-65:
Lead
Can Size:
4 in.
Carton Cubic Feet:
0.0979
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Ceiling Aperture:
4.17 in. Cutout
Country of Origin:
China
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
Efficacy:
100.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2401356
FCC Compliant:
Yes
Feature 1:
Diameter: 4.96 inches, Height: 3.16 inches
Feature 2:
Wet location rated for both indoor and outdoor use
Feature 3:
White Finish
Feature 4:
4 inch can size
Feature 5:
CCT Selectable
Feature 6:
Rated for 50,000 hours
Feature 7:
Dimmable
Feature 8:
5 Year Limited Warranty
Feature 9:
Superior 80 CRI light quality
Finish Family:
White
Fixture shape:
Round
Flr Equiv:
1 x 18W CFL
Has Driver:
Yes
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
J-box required but not included
IOT Enabled:
No
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:
Satco's S11850 12 watt commercial LED downlight offers versatility and functionality in commercial applications. The round fixture in white finish is a practical solution for energy efficient lighting. This dimmable, recessed downlight is CCT selectabl
Material:
Aluminum
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Satco's 12 watt commercial LED downlight offers versatility and functionality in commercial applications. The round fixture in white finish is a practical solution for energy efficient lighting. This dimmable, recessed downlight is CCT selectable, offe
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
12WLED/CDL/4/CCT/120-277
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.89
