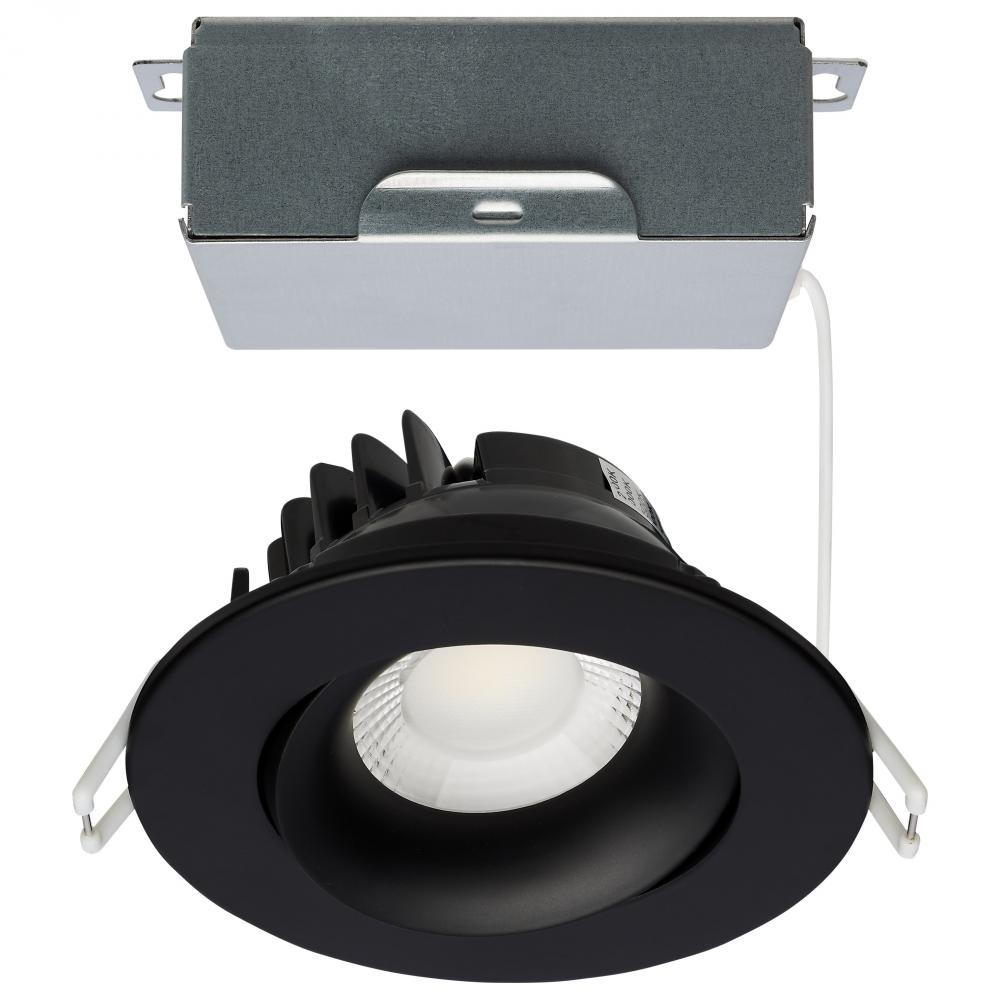

12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Round; Remote Driver; Black (X6M63)

Image may not reflect selected features
No Image
Available
12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Round; Remote Driver; Black
additional image
BASE PRICE:
$
38
50
/ / 1
($38.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6M63
Dimensions:
Height: 2.10"
Width: 4.38"
Black
Availability:
  • Manufacturer has 1050 items available.
Recommended Items
Description
Details
Downloads
12 Watt LED Direct Wire Downlight; Gimbaled; 3.5 Inch; CCT Selectable; Round; Remote Driver; Black Finish; 840 Lumens; 120 Volt
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Additional Info:
360 Degree Rotation; 30 Degree Tilt
Bulb Hours:
50000
Bulb Type:
LED
Diameter:
4.38
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
840L
Ship Carton Height:
5.31
Ship Carton Length:
5.31
Ship Carton Width:
3.74
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.100A
BAA Compliant:
No
Beam Spread:
40
CA Prop-65:
Lead
Carton Cubic Feet:
0.0685
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90
Dimmable Down To:
100 to 20 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy:
70.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2684097
FCC Compliant:
Yes
Feature 1:
90 CRI
Feature 10:
Aluminum Construction with PMMA Lens
Feature 2:
5 CCT Selectable
Feature 3:
Dimmable
Feature 4:
Wet location rated
Feature 5:
Title 24 Compliant
Feature 6:
Remote J-Box
Feature 7:
360-Degree Rotation, 30-Degree Tilt
Feature 8:
IC Rated
Feature 9:
Aluminum Construction with PMMA Lens
Finish Family:
Black
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO|NUVO’s S11625R1 LED Directional Architectural Downlight is made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Inst
Material:
Aluminum
Mounting Procedure:
Recessed Direct Wire
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
51
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO’s LED Directional Architectural Downlights are made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Install as
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
12W/DW/GBL/3.5/CCT/RND/RD/BK
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
0.98
