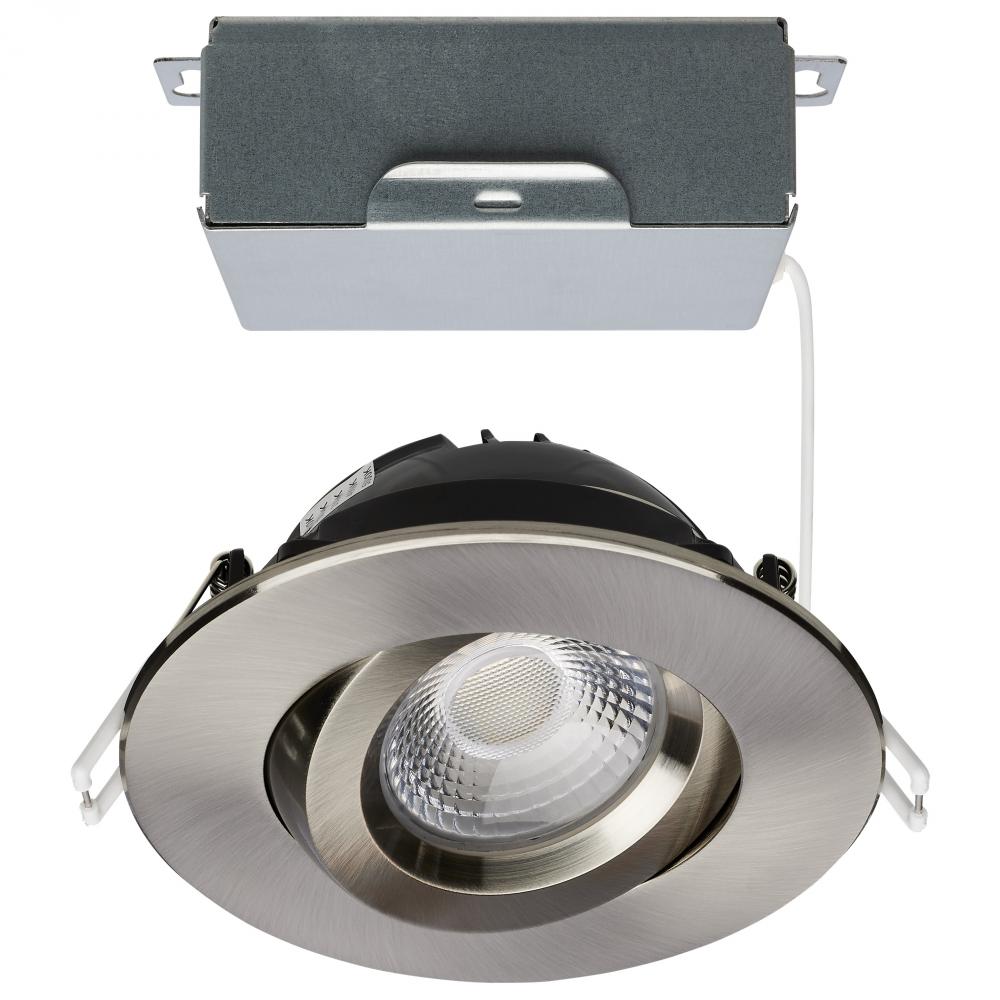

12 Watt LED Direct Wire Downlight; Gimbaled; 4 Inch; CCT Selectable; Round; Remote Driver; Brushed (X6M5Y)

Image may not reflect selected features
No Image
Available
12 Watt LED Direct Wire Downlight; Gimbaled; 4 Inch; CCT Selectable; Round; Remote Driver; Brushed
additional image
BASE PRICE:
$
38
50
/ / 1
($38.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6M5Y
Dimensions:
Height: 2.00"
Width: 5.04"
Brushed Nickel
Availability:
  • Manufacturer has 746 items available.
Recommended Items
Description
Details
Downloads
12 Watt LED Direct Wire Downlight; Gimbaled; 4 Inch; CCT Selectable; Round; Remote Driver; Brushed Nickel Finish; 850 Lumens; 120 Volt
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Additional Info:
360 Degree Rotation; 30 Degree Tilt
Bulb Hours:
50000
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
5.04
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
850L
Ship Carton Height:
5.43
Ship Carton Length:
6.3
Ship Carton Width:
3.46
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.100A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
40
CA Prop-65:
Lead
Carton Cubic Feet:
0.06850000000000001
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
4.25 in. Cutout
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90
Dimmable Down To:
100 to 20 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy:
70.83 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2684098
FCC Compliant:
Yes
Feature 1:
90 CRI
Feature 2:
5 CCT Selectable
Feature 3:
Dimmable
Feature 4:
Wet location rated
Feature 5:
Title 24 Compliant
Feature 6:
Remote J-Box
Feature 7:
360-Degree Rotation, 30-Degree Tilt
Feature 8:
IC Rated
Feature 9:
Aluminum Construction with PMMA Lens
Finish Family:
Nickel
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO|NUVO’s S11620R1 LED Directional Architectural Downlight is made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Inst
Material:
Aluminum
Mounting Procedure:
Recessed Direct Wire
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
51
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO’s LED Directional Architectural Downlights are made to offer focused illumination. With 360-degree rotation and 30-degree tilt, lighting can be installed to highlight artwork, entryways, or aimed to create the perfect reading nook. Install as
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
12W/DW/GBL/4/CCT/RND/RD/BN
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
1.11
