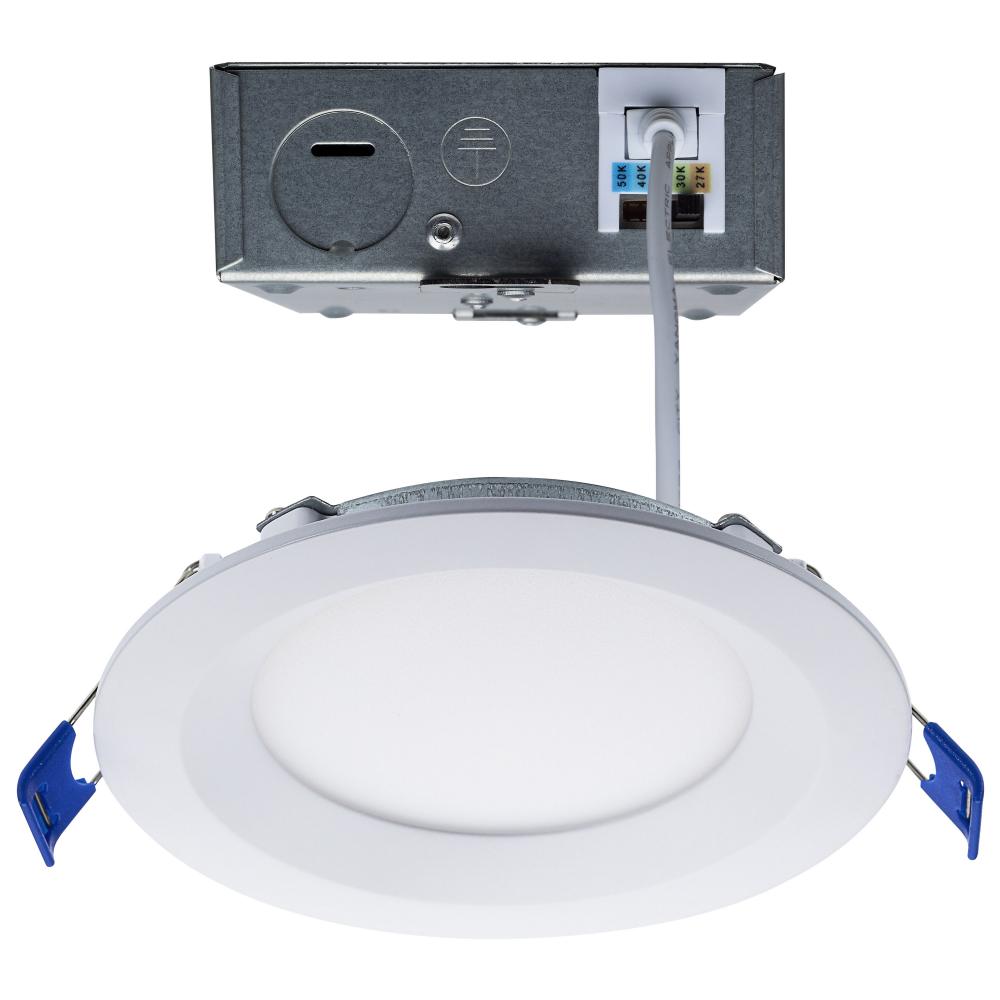

12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Round (X3PEW)

Image may not reflect selected features
No Image
Available
12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Round
additional image
BASE PRICE:
$
22
50
/ / 1
($22.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3PEW
Dimensions:
Height: 1.25"
Width: 5.06"
White
Availability:
  • Manufacturer has 1052 items available.
Recommended Items
Description
Details
Downloads
12 Watt LED Low Profile Regress Baffle Downlight; 4 Inch; Remote Driver; CCT Selectable; Round Shape; White Finish; 120 Volt
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Energy Star , LED , Prop 65
Lumens:
801-1100
Kelvin:
4001-4500
Wattage:
12w
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
5.06
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
850L
Ship Carton Height:
5.31
Ship Carton Length:
5.79
Ship Carton Width:
3.35
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.100A
ANSI Base:
Integrated
Beam Spread:
112
CA Prop-65:
Lead
Carton Cubic Feet:
0.0596
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
4.25 in. Cutout
Closet Rated:
No
Connection:
Direct Wired
Country Of Origin:
Thailand
CRI:
90
Dimmable Down To:
100 to 10 percent
Efficacy:
70.83 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2408267
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:
90 CRI
Feature 3:
Dimmable
Feature 4:
Wet location rated
Feature 5:
Rated for 50,000 hours
Feature 6:
5-Year warranty
Feature 7:
FCC and RoHS compliant
Finish Family:
White
Fixture shape:
Round
Has Driver:
Yes
IC Rated:
Yes
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
Installation Notes:
Driver Dimensions: 4.27 x 3.62 x 1.44
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
Yes
Lens Finish:
White
Lens Material:
Polystyrene (PS)
Long Description:
SATCO|NUVO's S11870 Slim Fit 4 inch white round Downlight fixture delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and minimal glare. Offering a range of five color temperatures from
Material:
Aluminum
Mounting Procedure:
Recessed Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
0.97
Quantity In Pack:
1
R9 Value:
84
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
The Slim Fit Downlight from SATCO|NUVO delivers an efficient LED solution with its sleek, low-profile design and smooth baffle for uniform light distribution and minimal glare. Offering a range of five color temperatures from 2700K to 5000K, you can custom
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
12WLED/DW/4/CCT-SEL/RND/RD/WH
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Wattage Selectable:
No
Weight Lb.:
0.92
