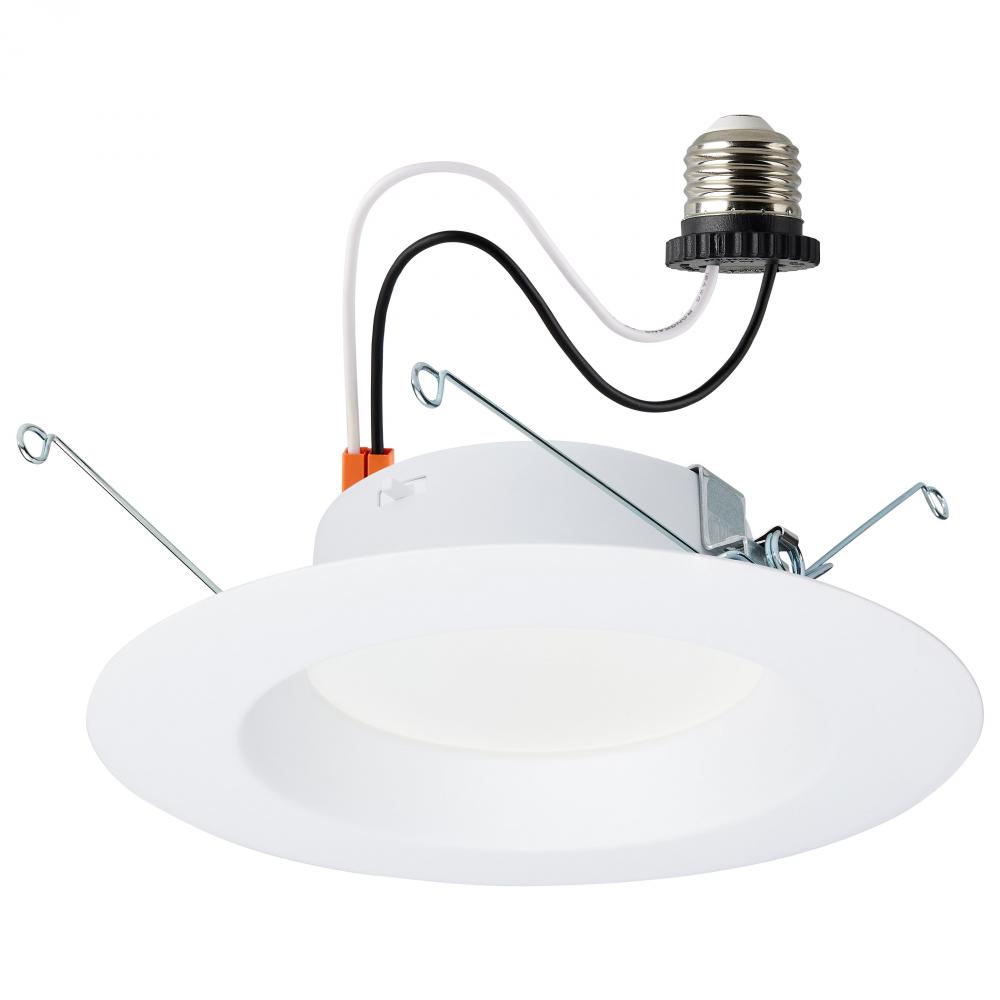

12.5 Watt LED High Lumen Downlight Retrofit; 5-6 Inch; 27K/30K/35K/40K/50K CCT Selectable; 120 (X6M6D)

Image may not reflect selected features
No Image
Available
12.5 Watt LED High Lumen Downlight Retrofit; 5-6 Inch; 27K/30K/35K/40K/50K CCT Selectable; 120
additional image
BASE PRICE:
$
18
50
/ / 1
($18.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6M6D
Dimensions:
Height: 1.97"
Width: 7.36"
White
Availability:
  • Manufacturer has 5021 items available.
Recommended Items
Description
Details
Downloads
12.5 Watt LED High Lumen Downlight Retrofit; 5-6 Inch; 27K/30K/35K/40K/50K CCT Selectable; 120 Volts; Dimmable; White Finish
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Option:
LED , Prop 65
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.36
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
1100L
Ship Carton Height:
8.07
Ship Carton Length:
8.07
Ship Carton Width:
2.76
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.104A
ANSI Base:
E26 Adapter
Beam Spread:
100
CA Prop-65:
Lead
Can Size:
5-6 in.
Carton Cubic Feet:
0.104
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.36 in. Cutout
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
88.00 LPW
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:
High Lumen Output 90 CRI for High Quality Lighting
Feature 3:
Round, Smooth Baffle with White Trim
Feature 4:
E26 Adapter Included
Feature 5:
T20 and T24 Compliant
Feature 6:
Aluminum Construction with PolyCarbonate Lens
Feature 7:
50,000 Hour Functional Life
Finish Family:
White
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's LED CCT Selectable 5-6 inch High Lumen Retrofit Downlight, S11646, will elevate the lighting in any space. Designed with impeccable 90 CRI color rendering, you can make your space brighter while saving energy with this 1,100 high lumen LED
Material:
Aluminum
Minimum Compartment Size:
For the 5 in. Recessed Luminaire: Dia: 5.38, Height: 7.5; For the 6 in. Recessed Luminaire: Dia: 6 In, Height: 7.5 in
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
55
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED CCT Selectable 5-6 inch High Lumen Retrofit Downlight will elevate the lighting in any space. Designed with impeccable 90 CRI color rendering, you can make your space brighter while saving energy with this 1,100 high lumen LED downligh
Safety Listing:
cULus - Classified;cULus - Listed
Short Description:
12.5WLED/DLR/5-6/CCT-SEL/RD/WH
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
41.4%
Wattage Selectable:
No
Weight Lb.:
0.6
