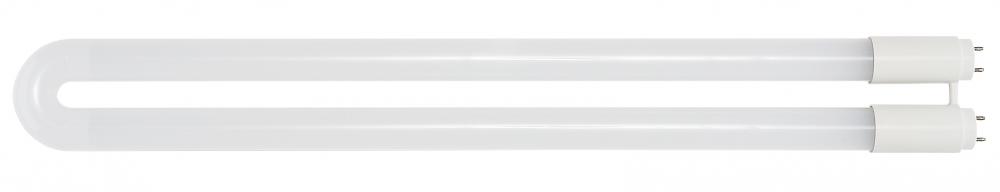

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 5000K; Type A/B; Ballast (LNGGZ)

Image may not reflect selected features
No Image
Available
13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 5000K; Type A/B; Ballast
additional image
BASE PRICE:
$
27
50
/ / 1
($27.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LNGGZ
Dimensions:
Width: 1.00"
White
Availability:
  • Manufacturer has 159 items available.
Description
Details
Downloads
13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 2000 Lumens; 5000K; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
1601-2600
Kelvin:
4501-5000
Wattage:
13w
Category:
LED
Sub-Category:
LED T8 U Bend
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
T8
Diameter:
1
EA Length:
23.2
Harmonized Codes:
8539.52.0051
Length:
22.59
Lumens:
2000L
Shap Carton Width:
2.8
Ship Carton Height:
1.2
Ship Weight:
0.55
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.5
Additional Info:
Replaces FB31T8/U1
BAA Compliant:
No
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
160
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0451
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80
DLC Approved:
Yes
DLC Classification:
Standard; Standard
DLC ID:
PLL0X0VFL6OP; PLY5P1LK7Z5W
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B); Replacement Lamps (Plug and Play) (UL Type A)
Efficacy:
153.85 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 22.59 inches, MOD: 1.00 inch
Feature 2:
Superior 80 CRI light quality, 2000 lumens, 5000K natural light, with a 160 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp location rated
Feature 5:
13 watt LED replaces 31 watt fluorescent
Feature 6:
Frost finished U-bend plastic bulb with plastic housing
Feature 7:
DLC Certified and qualifies for rebates where available
Feature 8:
5 Year Limited Warranty
Flourescent Equivalent:
31W
Housing Color:
White
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Leg Spacing:
1.625
Lens:
Yes
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Location Rating:
Damp
Long Description:
SATCO|NUVO's S18453 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spa
Material:
Plastic
Nominal Length:
22.5
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
6
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 13 watt T8 LED U-bend tube shaped linear bulb with medium bi pin base is designed to fit into troffers and other fixtures where there is limited space. Comparable to linear bulbs found in offices, healthcare and other commercial spaces, th
SDS class:
LED_Lamp
Shatter Proof Text:
Yes
Short Description:
13T8/U1-G13/LED/850/DUAL
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.7KV
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
13W
