15 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 6 Inch Round; Remote Driver; Black (X3PDR)

Image may not reflect selected features
No Image
Available
15 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 6 Inch Round; Remote Driver; Black
additional image
BASE PRICE:
$
48
50
/ / 1
($48.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3PDR
Dimensions:
Height: 2.17"
Width: 7.48"
Black
Availability:
  • Manufacturer has 1364 items available.
Recommended Items
Description
Details
Downloads
15 Watt; CCT Selectable; LED Direct Wire Downlight; Gimbaled; 6 Inch Round; Remote Driver; Black
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star , LED , Prop 65
Lumens:
1101-1600
Kelvin:
4001-4500
Wattage:
15w
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm to Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.48
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
1280L-1400L
Ship Carton Height:
8.19
Ship Carton Length:
8.109999999999999
Ship Carton Width:
3.94
Warranty:
5 Year Limited - LED Commercial Downlights
Air Tight:
Yes
Amps:
0.125A
ANSI Base:
Integrated
Beam Spread:
40
CA Prop-65:
Lead
Can Size:
6 in.
Carton Cubic Feet:
0.1514
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
6.313 in. Cutout
Clearance Height:
3
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase
Efficacy:
85.33/89.33/93.33 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2470768
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:
360 Degree Rotation
Feature 3:
0 to 80 Degree aiming angle
Feature 4:
Damp location rated
Feature 5:
Long life, 50,000 hours
Feature 6:
Energy Star certified
Finish Family:
Black
Fixture shape:
Round
Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
Installation Notes:
**If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
IOT Enabled:
No
IP Rating:
IP42
JA8 Compliant:
Yes
Lens Finish:
Clear
Lens Material:
Plastic
Long Description:

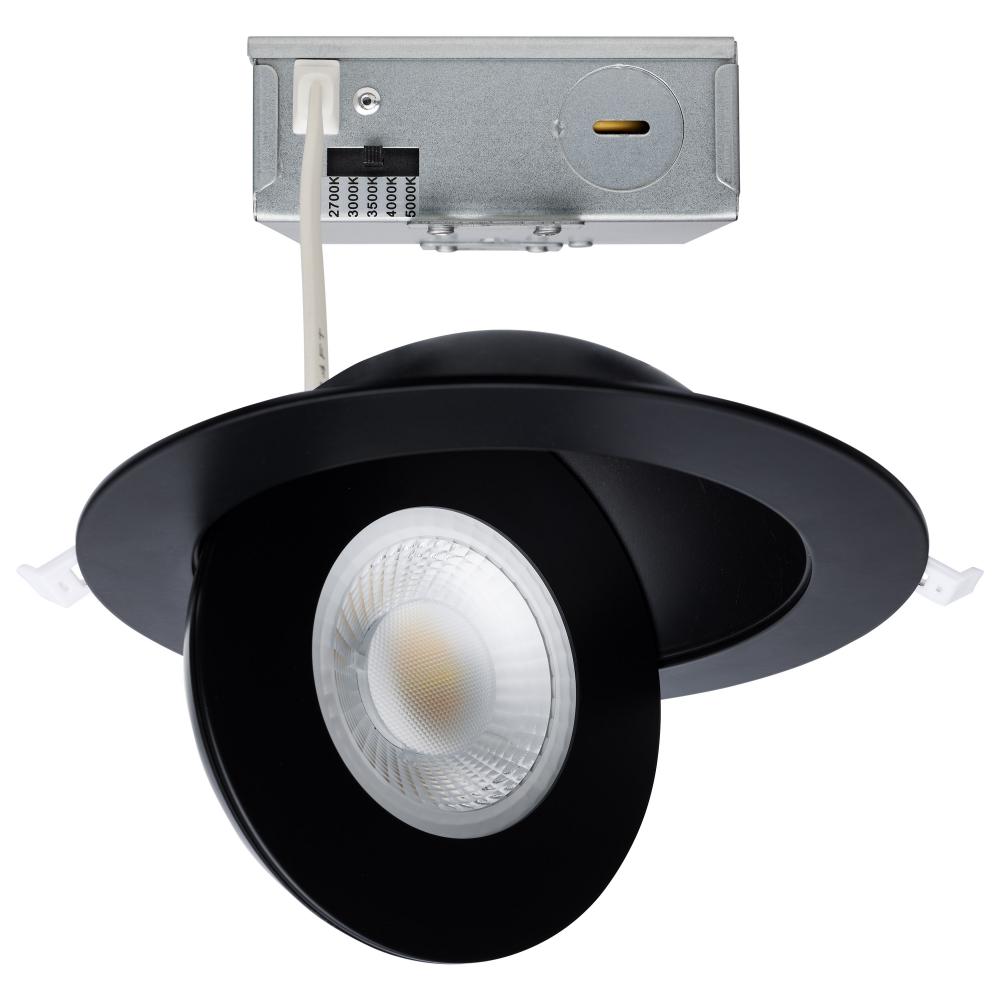

The black, six inch round, Satco S11862 gimbaled downlight delivers multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect
Material:
Aluminum
Max Drywall Thickness:
1 in.
Mounting Procedure:
Recessed Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
59
Rec Spacing Between Fixtures:
3 ft. to 4 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
These low profile, CCT selectable remote driver downlights deliver multiple advantages to any general recessed lighting project. Our ColorQuick technology allows the user to choose the color temperature from five different settings and brings the perfect l
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
15WLED/GBL/6/CCT/RND/BLK
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Wattage Selectable:
No
Weight Lb.:
1.06
