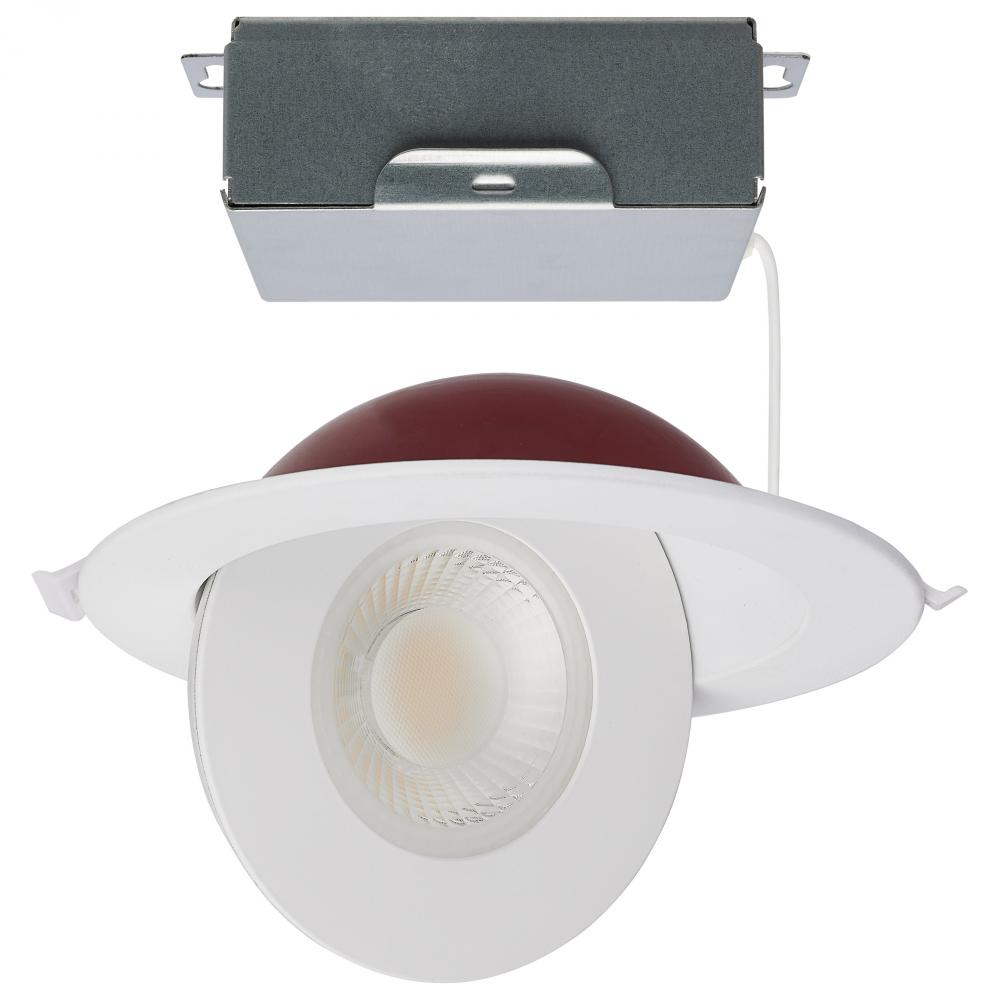

15 Watt LED; Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT (X6M6T)

Image may not reflect selected features
No Image
Available
15 Watt LED; Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT
additional image
BASE PRICE:
$
48
50
/ / 1
($48.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6M6T
Dimensions:
Height: 2.17"
Width: 7.48"
White
Availability:
  • Manufacturer has 2081 items available.
Recommended Items
Description
Details
Downloads
15 Watt LED; Fire Rated; 6 Inch Direct Wire Directional Downlight; Round Shape; White Finish; CCT Selectable; Dimmable; 120 Volts
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Additional Info:
2HR Fire Rated: Tested to comply with UL 263/ASTM E119/CAN-ULC S101-07
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
7.48
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
1280L
Ship Carton Height:
8.27
Ship Carton Length:
8.19
Ship Carton Width:
3.94
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.14A
BAA Compliant:
No
Beam Spread:
40
CA Prop-65:
Lead
Can Size:
6 in.
Carton Cubic Feet:
0.1544
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
6.313 in. Cutout
Clearance Height:
3
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Triac
Efficacy:
85.33 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2684099
FCC Compliant:
Yes
Feature 1:
2-Hour Fire Rated
Feature 10:
IC Rated
Feature 2:
6-inch Round
Feature 3:
Dimmable
Feature 4:
CCT Selectable
Feature 5:
360-Degree Rotation; 80-Degree Tilt
Feature 6:
White Trim
Feature 7:
Red Painted Back Plate
Feature 8:
Wet Location Rated
Feature 9:
90 CRI
Finish Family:
White
Fixture shape:
Round
Has Driver:
Yes
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO|NUVO’s S11881 6-inch Round Fire Rated Directional Downlight is the perfect solution to increase safety and offer focused light. Designed to provide exceptional illumination, this downlight also provides two hours of protection in the event of a fir
Material:
Aluminum
Max Drywall Thickness:
1 in.
Mounting Procedure:
Recessed Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
51
Rec Spacing Between Fixtures:
3 ft. to 4 ft.
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO’s Fire Rated Directional Downlights are the perfect solution to increase safety and offer focused light. Designed to provide exceptional illumination, these downlights also provide two hours of protection in the event of a fire, Improve illumi
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
15WLED/DW-FR/6/CCT-SEL/RND/DIR
Sloped Ceiling Compatible:
Yes
Specification Notes:
Rotation Angle 360 degrees; Tilt Angle 80 degrees
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
1.57
