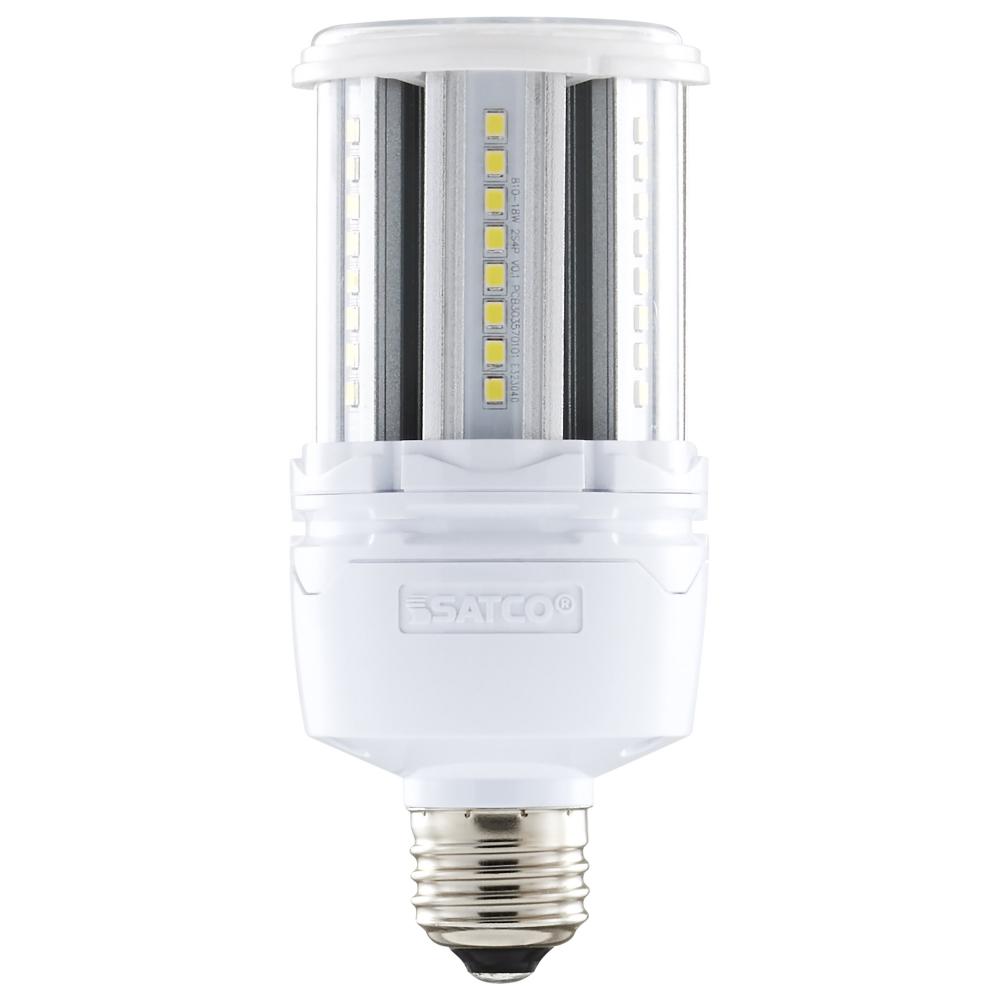

18 Watt LED HID Replacement; 80 CRI; 5000K; Type B; Ballast Bypass; Medium base; Economy Hi-Pro (LVMU5)

Image may not reflect selected features
No Image
Available
18 Watt LED HID Replacement; 80 CRI; 5000K; Type B; Ballast Bypass; Medium base; Economy Hi-Pro
additional image
BASE PRICE:
$
39
50
/ / 1
($39.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LVMU5
Dimensions:
Width: 2.39"
White
Availability:
  • Manufacturer has 1280 items available.
Description
Details
Downloads
18 Watt LED HID Replacement; 80 CRI; 5000K; Type B; Ballast Bypass; Medium base; Economy Hi-Pro
Internal #:
LVMU5
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
1601-2600
Kelvin:
4501-5000
Wattage:
18w
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
35000
Bulb Kelvin:
5000K
Bulb Shape:
Corncob
Diameter:
2.39
EA Length:
2.87
Harmonized Codes:
8539.52.0091
Length:
5.45
Lumens:
2484L
Shap Carton Width:
2.87
Ship Carton Height:
7.09
Ship Weight:
0.83
Warranty:
5-Years
Weight:
0.73
Additional Info:
Safety cable provided with S49395, S49396, S49397, S49675, S49676, S49677 ONLY and is required upon installation of these high bay, base-up applications. (Please See Instructions)
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
300
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0338
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Non-Compliant - <82 CRI
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Color Temprature:
Natural Light
Country Of Origin:
Malaysia
CRI:
80+
DLC Approved:
No
Efficacy:
138.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
High lumen per watt ratio
Feature 2:
Superior LED light output
Feature 3:
Rated for use in enclosed fixtures
Feature 4:
Advanced Thermal Management
Feature 5:
Suitable for use in damp locations
Feature 6:
Up to 35000 Hours of use
Feature 7:
2kV built-in surge protection
Has Camera:
No
Has Emergency Battery:
No
HID Equivalent:
70W
Housing Color:
White
Incandescent Equivalent:
90W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
Satco's S49390 18-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. Th
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 6 in. Width: 6 in. Height: 8.5 in.
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +50C (+122F)
Pack Type:
Box
Photocell:
No
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
13
RoHS Compliant:
Yes
Romance Copy:
Satco's 18-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. This vers
SDS class:
LED_Lamp
Short Description:
18W/LED/HP/850/100-277V/E26
Style:
Contemporary
Surge Protection:
Built-in surge protection - 2KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
18W
