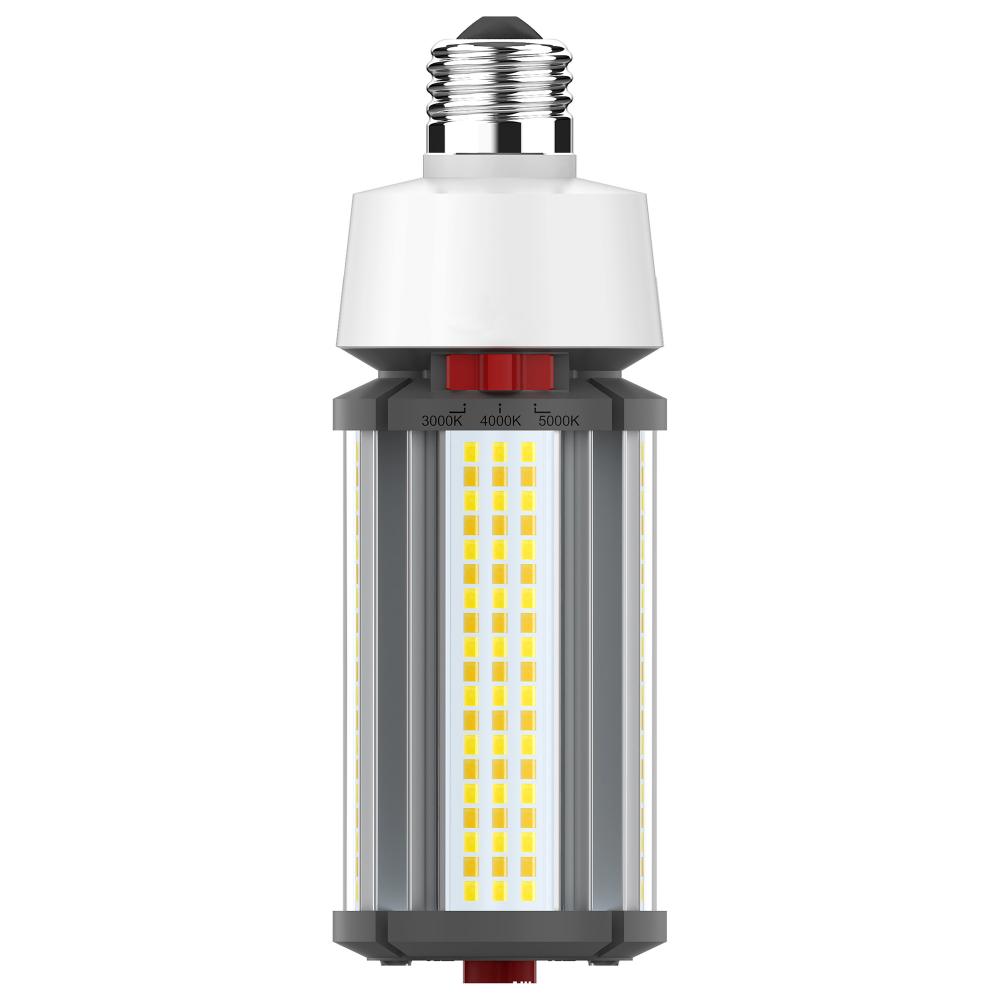

22/18/16 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium (LNLF2)

Image may not reflect selected features
No Image
Available
22/18/16 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium
additional image
BASE PRICE:
$
69
50
/ / 1
($69.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LNLF2
Dimensions:
Width: 2.32"
White
Availability:
  • Manufacturer has 5121 items available.
Description
Details
Downloads
22/18/16 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
3300+
Kelvin:
3001-3500
Wattage:
18w
Category:
LED
Sub-Category:
HID Replacements
Volts:
100V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
Corncob
Diameter:
2.32
EA Length:
8.859999999999999
Harmonized Codes:
8539.52.0091
Length:
6.89
Lumens:
3080L/2520L/2240L
Shap Carton Width:
2.83
Ship Carton Height:
2.83
Ship Weight:
0.86
Warranty:
5 Year Limited - Hi-Pro
Weight:
0.66
Additional Info:
Power selectable
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
300
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0411
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - >2600 Lumens
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Country Of Origin:
China
CRI:
80
Dimmable Function:
Dimmable only via the wattage/lumen selectable dial included on lamp
DLC Approved:
No
Efficacy:
140.00/140.00/140.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Both
FCC Compliant:
Yes
Feature 1:
CCT Selectable-3000K, 4000K, 5000K
Feature 2:
Wattage Selectable
Feature 3:
Enclosed Fixture Rated
Feature 4:
Advanced Thermal Management
Feature 5:
Damp location rated
Feature 6:
4KV Built in Surge Protection
Feature 7:
Rated for 50,000 hours of use
HID Equivalent:
100W/75W/50W
Housing Color:
Dark Gray
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens Material:
Plastic
Location Rating:
Damp
Long Description:
Satco's S23147 wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light outpu
Material:
Plastic (PS)
NSF Approved:
No
Operating Frequency:
50-60Hz
Operating Temp:
-40C (-40F) to +60C (+140F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
The newest generation of our popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp means more ve
SDS class:
LED_Lamp
Short Description:
22W/LED/CCT/100-277V/E26
Style:
Contemporary
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
No
Wattage Selectable:
Yes
Watts:
22W/18W/16W
