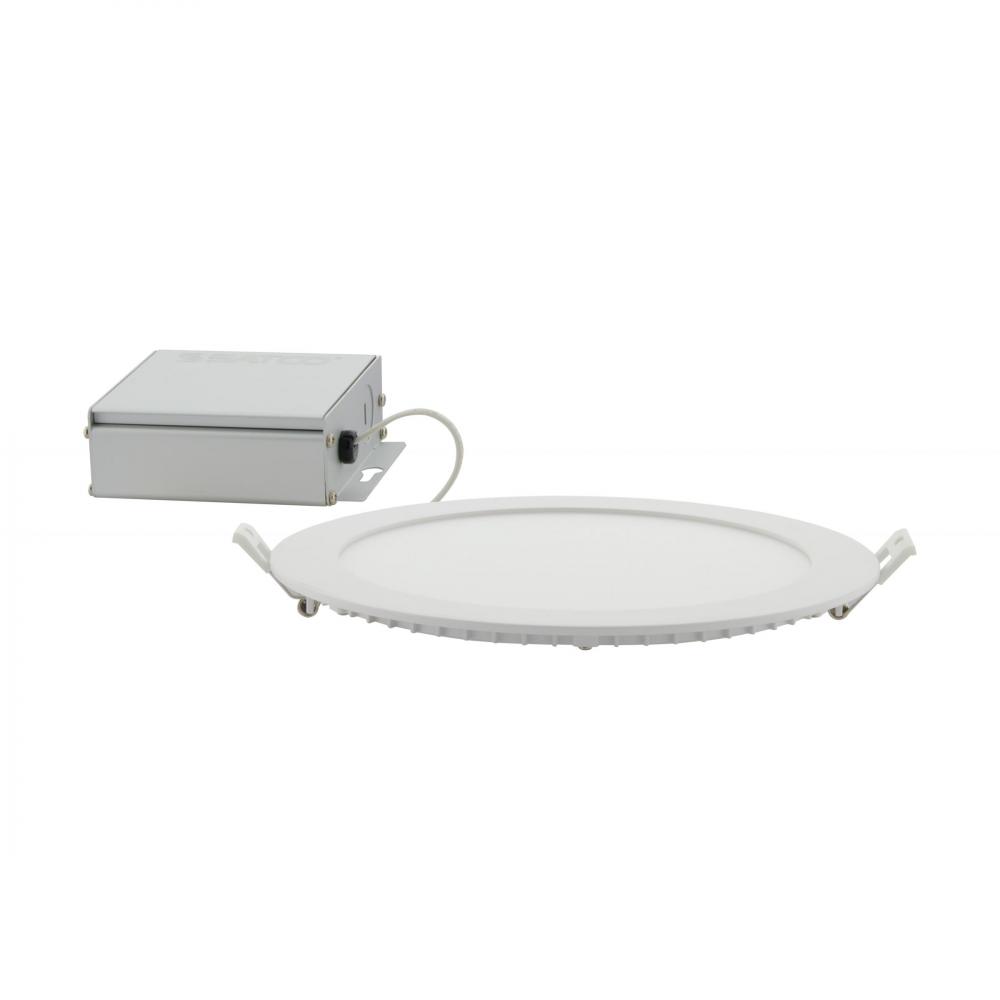

24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Round; (X3GL7)

Image may not reflect selected features

No Image
Available

24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Round;

BASE PRICE:

/ / 1

($61.50 / 1)

WAS

Call for Price

Item #:

X3GL7

Dimensions:

Height: 0.90"

Width: 8.86"

Finish:

White

Availability:

Manufacturer has 2428 items available.

Recommended Items

Description

Details

Downloads

24 Watt; LED Direct Wire Downlight; Edge-lit; 8 inch; CCT Selectable; 120 volt; Dimmable; Round; Remote Driver

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Style:

Traditional

Option:

Energy Star , LED , Prop 65

Lumens:

1601-2600

Kelvin:

4001-4500

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Additional Info:

Candlepower: 550

Bulb Hours:

50000

Bulb Kelvin:

Warm to Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

8.859999999999999

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Lumens:

2000L

Ship Carton Height:

9.41

Ship Carton Length:

9.41

Ship Carton Width:

1.81

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.200A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

108

CA Prop-65:

Lead

Can Size:

8 in.

Candle Power:

550

Carton Cubic Feet:

0.09279999999999999

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

8.11 in. Cutout

Clearance Height:

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Efficacy:

83.33 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-2369690

FCC Compliant:

Yes

Feature 1:

ColorQuick CCT Selectable

Feature 10:

120V

Feature 2:

90 CRI

Feature 3:

Wet location rated

Feature 4:

Dimmable

Feature 5:

IC Rated

Feature 6:

Air Tight Rated

Feature 7:

Title 24 Compliant

Feature 8:

ENERGY STAR Certified

Feature 9:

108-Degree Beam Angle

Finish Family:

White

Fixture shape:

Round

Has Driver:

Yes

IC Rated:

Yes

Incandescent Equivalent:

85W

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

Yes

Lens Finish:

Frost

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO|NUVO’s S11828 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. T

Material:

Aluminum

Max Drywall Thickness:

1/2 in.

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Rec Spacing Between Fixtures:

6 ft. to 8 ft.

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO’s LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A vari

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

24WLED/DW/EL/8/CCT-SEL/RND/RD

Sloped Ceiling Compatible:

Specification Notes:

Lumens (L) vary with color temperature (K): 2700K 1850L / 3000K 1950L / 3500K 2050L / 4000K 2050L / 5000K 2000L

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Color:

White

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:

1.57
