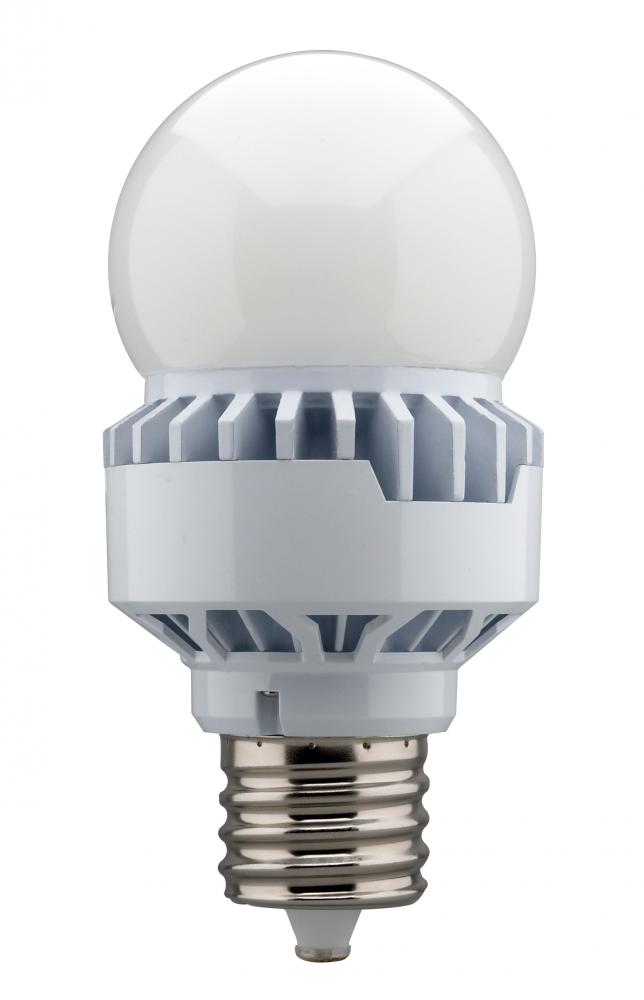

25 Watt LED A23 Hi-Pro HID Replacement; 2700K; Mogul extended base; Type B Ballast Bypass; 120-277 (LNEM4)

Image may not reflect selected features
No Image
Available
25 Watt LED A23 Hi-Pro HID Replacement; 2700K; Mogul extended base; Type B Ballast Bypass; 120-277
additional image
BASE PRICE:
$
42
50
/ / 1
($42.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LNEM4
Dimensions:
Width: 3.22"
White
Availability:
  • Manufacturer has 1081 items available.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Description
Details
Downloads
25 Watt LED A23 Hi-Pro HID Replacement; 2700K; Mogul extended base; Type B Ballast Bypass; 120-277 Volt
Category:
Light Bulbs
Subcategory:
LED Bulbs
Finish:
White
Style:
Traditional
Lumens:
3001-3300
Kelvin:
2501-3000
Wattage:
25w
Category:
LED
Sub-Category:
HID Replacements
Volts:
100V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K
Bulb Shape:
A23
Diameter:
3.22
EA Length:
3.5
Harmonized Codes:
8539.52.0010
Length:
6.66
Lumens:
3275L
Shap Carton Width:
3.5
Ship Carton Height:
7.48
Ship Weight:
1
Warranty:
5 Year Limited - Hi-Pro
Weight:
1.1
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
280
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.053
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
Country Of Origin:
China
CRI:
80
DLC Approved:
No
Efficacy:
131.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 6.66 inches, MOD: 3.22 inches
Feature 2:
Superior 80 CRI light quality, 3275 lumens, 2700K warm white light, with a 280 degree beam spread
Feature 3:
Rated for enclosed fixtures
Feature 4:
Damp location rated
Feature 5:
25 watt LED replaces 200W incandescent
Feature 6:
Frost finished bulb with white plastic housing
Feature 7:
5 Year Limited Warranty
HID Equivalent:
100W
Housing Color:
White
Incandescent Equivalent:
200W
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Location Rating:
Damp
Long Description:
Satco's S13104 25 watt A23 Hi-Pro 3275 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 2700 kel
Material:
Plastic
Minimum Compartment Size:
Diameter: 6 in. Height: 8.5 in.
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
10
RoHS Compliant:
Yes
Romance Copy:
Satco's 25 watt A23 Hi-Pro 3275 lumen LED Type B ballast bypass HID replacement lamp is suitable for damp locations and enclosed fixtures. The frost bulb features a mogul extended base and a 280 degree beam spread. With a temperature of 2700 kelvins, t
SDS class:
LED_Lamp
Short Description:
25WA23/LED/27K/100-277V/EX39
Style:
Contemporary
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
25W
