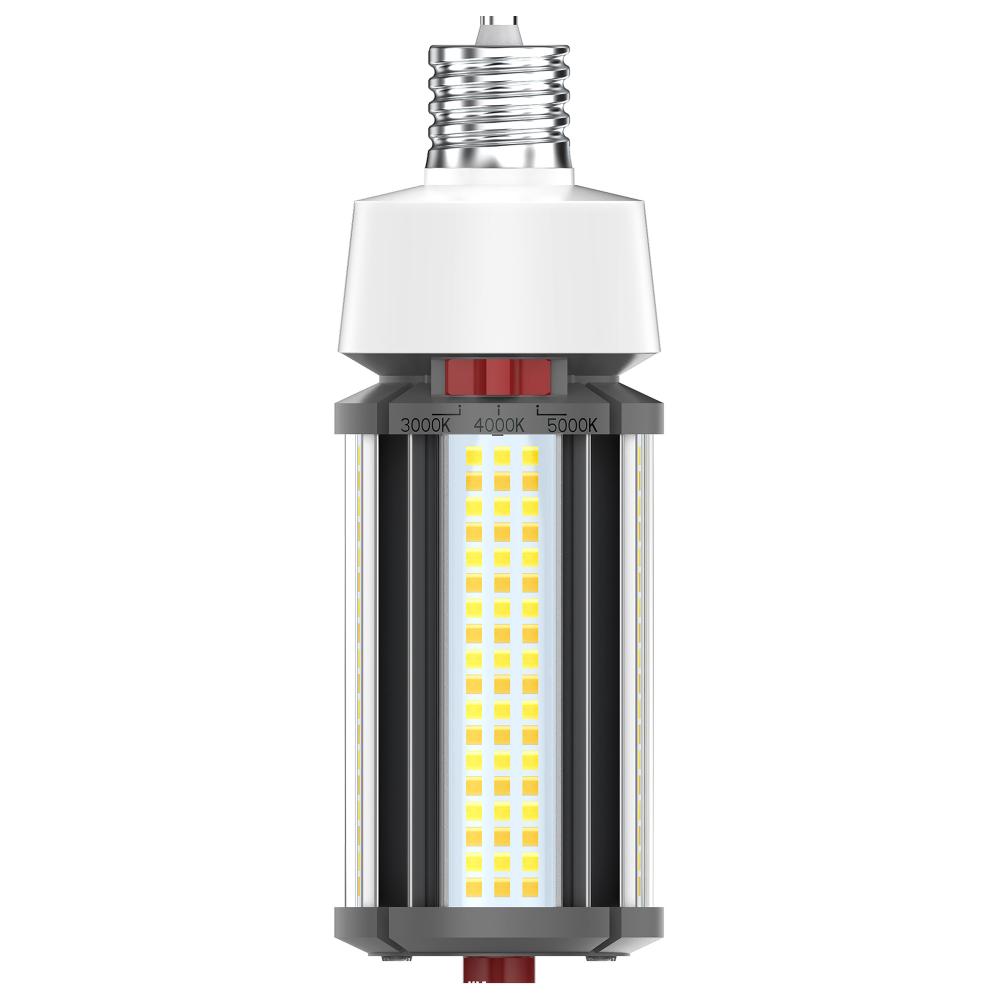

27/22/18 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended (LNLF7)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
71
50
/
/ 1
($71.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LNLF7
Dimensions:
Width: 2.32"
White
Availability:
- Manufacturer has 236 items available.
Description
Details
Downloads
27/22/18 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
3300+
Kelvin:
3001-3500
Wattage:
18w
Category:
LED
Sub-Category:
HID Replacements
Volts:
100V-277V
Bulb Dimmable:
Box
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
Corncob
Diameter:
2.32
EA Length:
8.859999999999999
Harmonized Codes:
8539.52.0091
Length:
7.48
Lumens:
3780L/3080L/2520L
Shap Carton Width:
2.83
Ship Carton Height:
2.83
Ship Weight:
0.95
Warranty:
Yes
Weight:
0.75
Additional Info:
Power selectable
B.U. G. Rating:
B1-U5-G2
BAA Compliant:
No
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0411
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
5 Year Limited - Hi-Pro
Country Of Origin:
China
CRI:
80
Dimming Type:
Step Dimming
DLC Approved:
Yes
DLC Classification:
CCT Selectable
DLC ID:
S-HJ4T6Y
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
Efficacy:
140.00/140.00/140.00 LPW
Enclosed Fixture Use:
Yes
Energy Star Category:
ColorQuick;PowerQuick
FCC Compliant:
Yes
Feature 1:
CCT Selectable-3000K, 4000K, 5000K
Feature 2:
Wattage Selectable
Feature 3:
Enclosed Fixture Rated
Feature 4:
Advanced Thermal Management
Feature 5:
Damp location rated
Feature 6:
4KV Built in Surge Protection
Feature 7:
Rated for 50,000 hours of use
Feature 8:
DLC Listed
HID Equivalent:
125W/100W/75W
Housing Color:
Dark Gray
Incandescent Equivalent:
100W
Indoor Outdoor:
Warm to Cool White
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP64
JA8 Compliant:
No
Lens Finish:
Indoor;Outdoor
Lens Material:
LED
Location Rating:
Type B
Long Description:
The newest generation of our popular Hi-pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. SATCO|NUVO's S23151 has CCT and Wattage selectable capability built
Material:
Lumileds
NSF Approved:
No
Operating Frequency:
50-60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
cULus - Certified;cULus - Classified;cULus - Listed
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
28
RoHS Compliant:
Corncob
Romance Copy:
The newest generation of SATCO|NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp
SDS class:
LED_Lamp
Short Description:
27W/LED/CCT/100-277V/EX39
Start Type:
Contemporary
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15.50%
Wattage Selectable:
Yes
Watts:
27W/22W/18W
