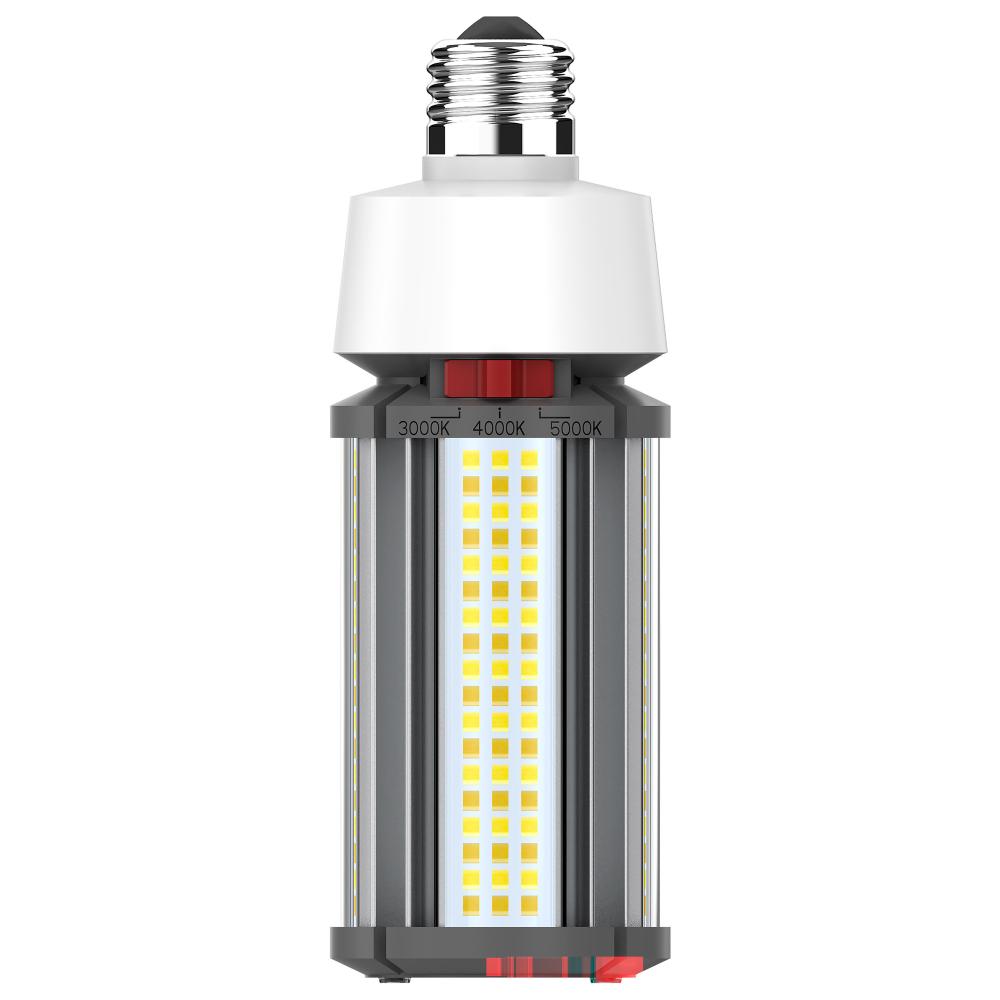

27 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium Base; 277-347 Volt; (LNLFC)

Image may not reflect selected features
No Image
Available
27 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium Base; 277-347 Volt;
additional image
BASE PRICE:
$
81
50
/ / 1
($81.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LNLFC
Dimensions:
Width: 2.36"
White
Availability:
  • Manufacturer has 37 items available.
Description
Details
Downloads
27 Watt LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Medium Base; 277-347 Volt; ColorQuick Technology
Category:
Light Bulbs
Subcategory:
LED Bulbs
Lumens:
3300+
Kelvin:
3001-3500
Category:
LED
Sub-Category:
HID Replacements
Volts:
277V-347V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/4000K/5000K
Bulb Shape:
Corncob
Diameter:
2.36
EA Length:
8.85
Harmonized Codes:
8539.52.0091
Length:
6.76
Lumens:
3510L/3780L/3645L
Shap Carton Width:
2.83
Ship Carton Height:
2.83
Ship Weight:
0.86
Warranty:
5 Year Limited - Hi-Pro
Weight:
0.66
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
300
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.041
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - >2600 Lumens
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Country Of Origin:
China
CRI:
80
DLC Approved:
No
Efficacy:
130.00/140.00/135.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
MOL: 6.76 inches, MOD: 2.36 inches
Feature 2:
Corncob Shape
Feature 3:
White Finish
Feature 4:
Medium Base
Feature 5:
300 degree beam spread
Feature 6:
Rated for 50,000 hours
Feature 7:
CCT Selectable
Feature 8:
5 Year Limited Warranty
Feature 9:
Damp rated for indoor and outdoor use
HID Equivalent:
125W
Housing Color:
Dark Gray
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP64
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Lens Material:
Plastic
Location Rating:
Damp
Long Description:
Satco's S23161 27 watt corncob lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any venue with high ceilings requiring superior light output. This CCT selectable lamp delivers 50,000 hours of clean, energy
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Length: 8.46 in. Width: 6.00 in. Height: 6.00 in.
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
No
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
18
RoHS Compliant:
Yes
Romance Copy:
Satco's 27 watt corncob lamp is the lamp of choice for large scale applications. Illuminate gymnasiums, warehouses, or any venue with high ceilings requiring superior light output. This CCT selectable lamp delivers 50,000 hours of clean, energy saving
SDS class:
LED_Lamp
Short Description:
27W/LED/CCT/277-347V/E26
Style:
Utility
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
27W
