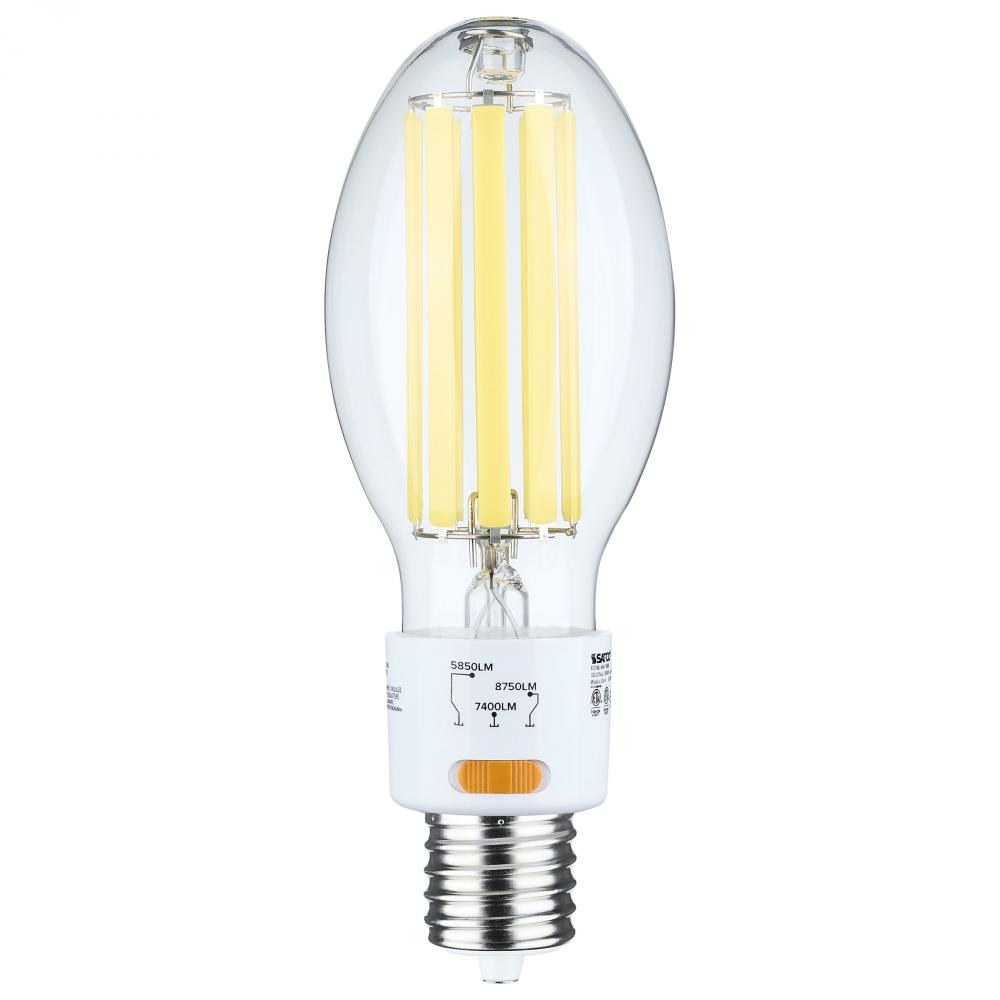

30/38/45 Wattage Selectable LED HID Replacement; ED28; 5000K; Mogul Extended Base; Clear; 120-277 Range Voltage
Sub-Category:
HID Replacements
Bulb Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Lumens:
5850L/7400L/8750L
Ship Carton Height:
10.63
Warranty:
5 Year Limited - Hi-Pro
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Bulb Base:
Mogul Extended
Burning Position:
Universal
Carton Cubic Feet:
0.0771
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Dimmable Function:
Only dimmable through wattage selection switch on lamp
Dimming Type:
Step Dimming
DLC Classification:
Standard
DLC Primary Use:
Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
Efficacy:
195.00/194.74/194.44 LPW
Enclosed Fixture Use:
Yes
Feature 1:
Wattage Selectable
Feature 2:
Type B - Ballast Bypass
Feature 3:
Range Voltage 120V-277V
Feature 4:
360-Degree Illumination
Feature 5:
Wet Location Rated
Feature 6:
Universal Operating Position
Feature 8:
EX39 Mogul base
Feature 9:
Rated for Use in Enclosed Fixtures
HID Equivalent:
150W/250W/320W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C:
Type B
Long Description:
SATCO|NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. This CCT selectable ED28 model is designed for use in type B ballast bypass applications, to make the transition to LED lamps easy. Enjoy long-lasting
Minimum Compartment Size:
Length: 14.02 in. Width: 8.03 in. Height: 8.03 in.
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Romance Copy:
SATCO|NUVO's LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. Offered in a field selectable ED28 model or CCT selectable in ED28 and ED37 models. Designed for use in type B ballast bypass applications, these lamps
Short Description:
45W/LED/HID/ED28/850/EX39/CL
Surge Protection:
Built-in surge protection - 3KV
Total Harmonic Distortion:
<20%
