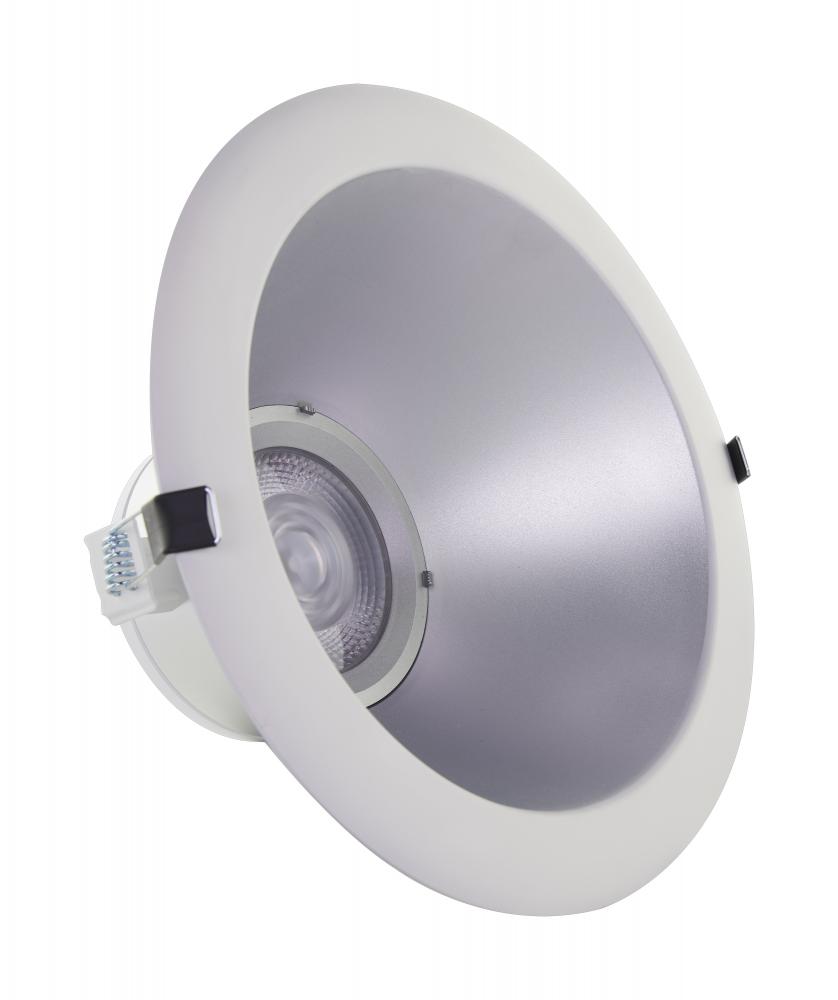

32 Watt Commercial LED Downlight; 8 in.; Color Adjustable; Lumen Adjustable; 120-277 volt (X3GKY)

Image may not reflect selected features
No Image
Available
32 Watt Commercial LED Downlight; 8 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
BASE PRICE:
$
119
50
/ / 1
($119.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3GKY
Dimensions:
Height: 5.05"
Width: 9.06"
Silver
Availability:
  • Manufacturer has 306 items available.
Recommended Items
Description
Details
Downloads
32 Watt Commercial LED Downlight; 8 in.; Color Adjustable; Lumen Adjustable; 120-277 volt
Category:
Recessed Ltg.
Subcategory:
LED Bulbs , Other Recessed Ltg.
Finish:
Silver
Style:
Traditional
Option:
Energy Star , LED , Prop 65
Lumens:
1601-2600
Kelvin:
4001-4500
Category:
Recessed
Sub Category:
Commercial
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm to Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
9.06
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.42.6000
Lumens:
1600L/2000L/2450L
Ship Carton Height:
7.48
Ship Carton Length:
9.84
Ship Carton Width:
9.84
Warranty:
5 Year Limited - LED Commercial Downlights
Air Tight:
No
Amps:
0.158-0.069/0.217-0.094/0.267-0.116A
BAA Compliant:
No
Beam Spread:
40
CA Prop-65:
Lead
Can Size:
8 in.
Carton Cubic Feet:
0.4191
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Ceiling Aperture:
8.30 in. Cutout
Connection:
Direct Wired
Country Of Origin:
China
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
Efficacy:
84.21/76.92/76.56 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-2353225
FCC Compliant:
Yes
Feature 1:
Lawful for sale in California
Feature 2:
Selectable wattage, lumens, and CCT
Feature 3:
Remote driver and J-box with knockouts
Feature 4:
Quick connect feature for easy installation
Feature 5:
ENERGY STAR listed
Feature 6:
Five year limited warranty
Finish Family:
Silver
Fixture shape:
Round
Flr Equiv:
1 x 32W CFL
Has Driver:
Yes
IC Rated:
Yes
Incandescent Equivalent:
100W/120W/150W
Indoor Outdoor:
Indoor
Installation Notes:
Can be installed with or without the rough-in plate (80-959)
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:
Satco's S11816 wattage selectable, 8 inch LED commercial downlight is the perfect solution for offices, stores, hospitals, and hotels. Dimmable and CCT selectable, this direct wired downlight installs easily even in the most challenging renovations and
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Power Factor:
0.99
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
This a commercial LED downlight with Color Quick technology: Select among a range of watts, lumens, and color temperatures. An outboard LED driver/junction box allows for easy placement, even in the most challenging renovations. The downlight mounts secure
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
32WLED/CDL/8/ADJ-CCT/40D
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Trim Color:
White
Wattage Selectable:
Yes
Weight Lb.:
1.91
