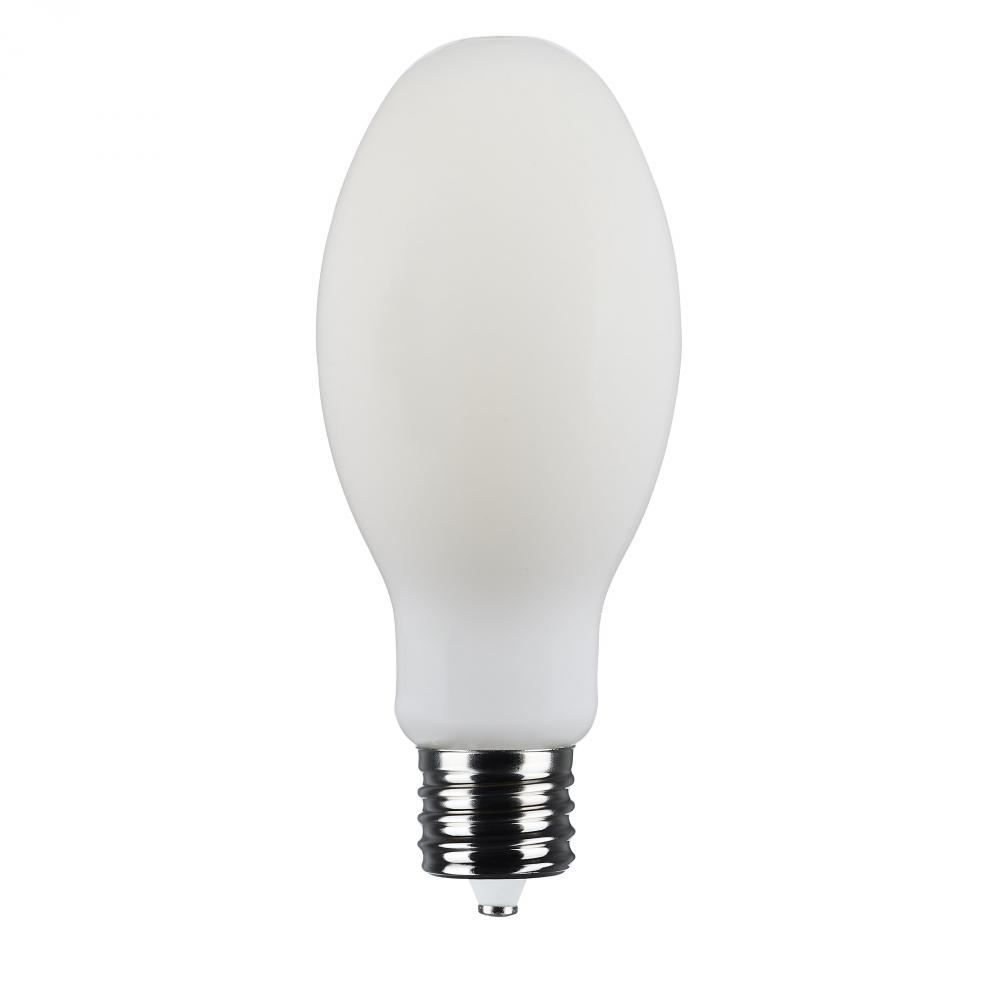

40 Watt LED HID Replacement; ED28; 5000K; Extended Mogul Base; White; 120-277 Range Voltage (X6P5E)

Image may not reflect selected features
No Image
Available
40 Watt LED HID Replacement; ED28; 5000K; Extended Mogul Base; White; 120-277 Range Voltage
additional image
BASE PRICE:
$
70
50
/ / 1
($70.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6P5E
Dimensions:
Width: 3.54"
White
Availability:
  • Manufacturer has 1723 items available.
Description
Details
Downloads
40 Watt LED HID Replacement; ED28; 5000K; Extended Mogul Base; White; 120-277 Range Voltage
Category:
Light Bulbs
Subcategory:
LED Bulbs
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
ED28
Diameter:
3.54
EA Length:
3.94
Harmonized Codes:
8539.52.0091
Length:
8.4
Lumens:
6000L
Shap Carton Width:
3.94
Ship Carton Height:
9.449999999999999
Ship Weight:
0.68
Warranty:
5 Year Limited - Hi-Pro
Weight:
0.68
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
320
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0849
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80
Dimmable Function:
120V only
Dimming Type:
Triac
DLC ID:
No
Efficacy:
150.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
ED28
Feature 10:
5 Year Warranty
Feature 2:
EX39 Base
Feature 3:
White Finish
Feature 4:
40W
Feature 5:
Range Voltage 120V-277V
Feature 6:
Ballast Bypass Type B
Feature 7:
4kV Integrated Surge Protection
Feature 8:
Non-Dimmable
Feature 9:
Wet Location Rated
HID Equivalent:
175W
Indoor Outdoor:
Indoor and Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Wet
Long Description:
Easily upgrade dated HID lamps with energy saving LED bulbs. SATCO’s long-lasting S13190 ED28 HID replacement lamps offer outstanding efficacy in applications where low-maintenance is the goal: streetlights, warehouses, retail, gymnasiums and more. Offer
Material:
Glass
Minimum Compartment Size:
Length: 9.25 in. Width: 9.25 in. Height: 17.28 in.
Operating Frequency:
60Hz
Operating Temp:
-30C (-22F) to +65C (+149F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
Easily upgrade dated HID lamps with energy saving LED bulbs. SATCO’s long-lasting HID replacement lamps offer outstanding efficacy in applications where low-maintenance is the goal: streetlights, warehouses, retail, gymnasiums and more. With a variety of
Short Description:
40W/LED/HID/ED28/850/EX39/WH
Style:
Utility
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
40W
