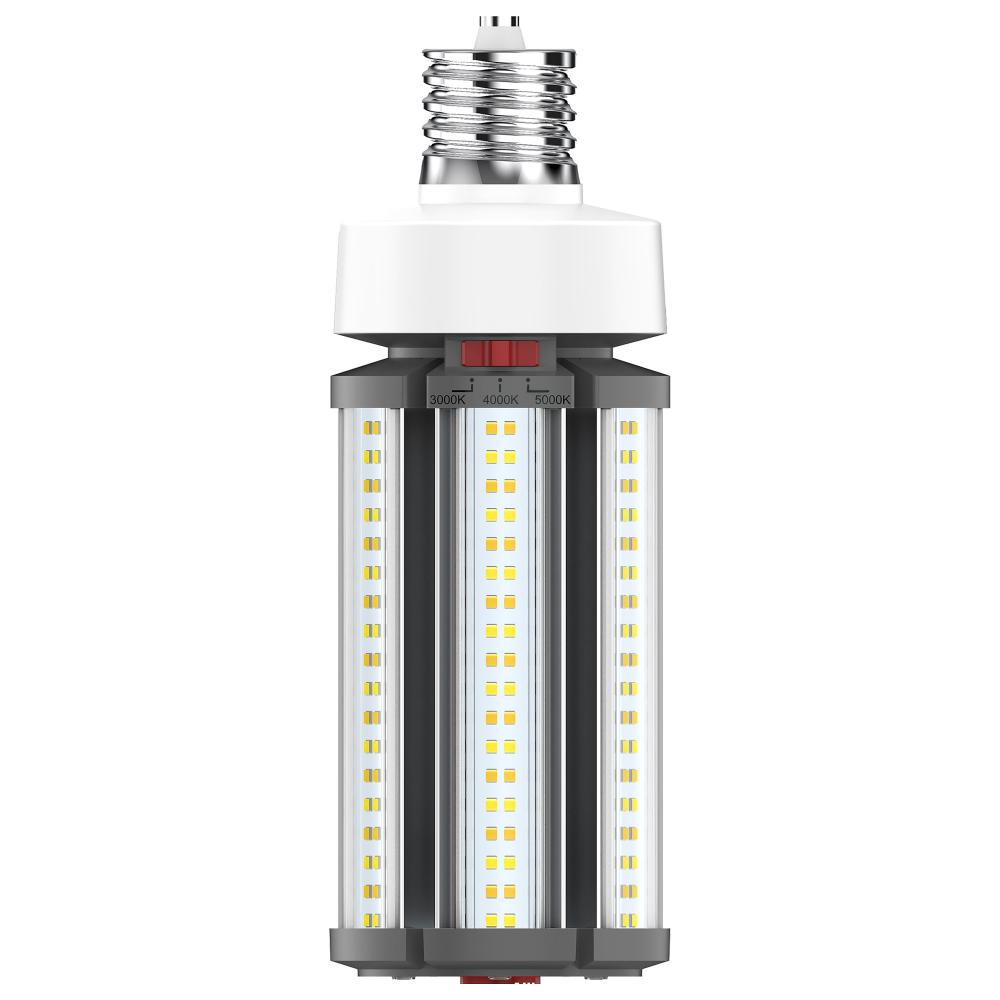

45/36/27 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended (LNLEW)

Image may not reflect selected features

No Image
Available

45/36/27 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended

BASE PRICE:

/ / 1

($79.50 / 1)

WAS

Call for Price

Item #:

LNLEW

Dimensions:

Width: 3.35"

Finish Family:

White

Availability:

Manufacturer has 230 items available.

Description

Details

Downloads

45/36/27 Wattage Selectable; LED HID Replacement; CCT Selectable; Type B; Ballast Bypass; Extended Mogul base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Category:

Light Bulbs

Subcategory:

LED Bulbs

Style:

Traditional

Lumens:

3300+

Kelvin:

3001-3500

Category:

LED

Sub-Category:

HID Replacements

Volts:

100V-277V

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

Corncob

Diameter:

3.35

EA Length:

10.98

Harmonized Codes:

8539.52.0091

Length:

9.69

Lumens:

6300L/5040L/3780L

Shap Carton Width:

3.66

Ship Carton Height:

3.66

Ship Weight:

2.02

Warranty:

5 Year Limited - Hi-Pro

Weight:

1.76

Additional Info:

Power selectable

B.U. G. Rating:

B2-U5-G3

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

300

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0851

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm to Cool White

Country Of Origin:

China

CRI:

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-086UBA

DLC Primary Use:

Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)

Efficacy:

140.00/140.00/140.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Both

FCC Compliant:

Yes

Feature 1:

CCT Selectable-3000K, 4000K, 5000K

Feature 2:

Wattage Selectable

Feature 3:

Enclosed Fixture Rated

Feature 4:

Advanced Thermal Management

Feature 5:

Damp location rated

Feature 6:

4KV Built in Surge Protection

Feature 7:

Rated for 50,000 hours of use

HID Equivalent:

175W/150W/125W

Housing Color:

Dark Gray

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Lens Material:

Plastic

Location Rating:

Damp

Long Description:

SATCO|NUVO's S23141 wattage and CCT selectable Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Illuminate gymnasiums, factory floors, health clubs, or any venue where high ceilings require superior light

Material:

Plastic (PS)

NSF Approved:

Operating Frequency:

50-60Hz

Operating Temp:

-40C (-40F) to +60C (+140F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

The newest generation of SATCO|NUVO's popular Hi-Pro commercial LED lamps provides up to 80 percent in energy savings and brings advanced features allowing them to adjust to more applications. The CCT Wattage selectable capability built into each lamp

SDS class:

LED_Lamp

Short Description:

45W/LED/CCT/100-277V/EX39

Style:

Contemporary

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

16.30%

Wattage Selectable:

Yes

Watts:

45W/36W/27W
