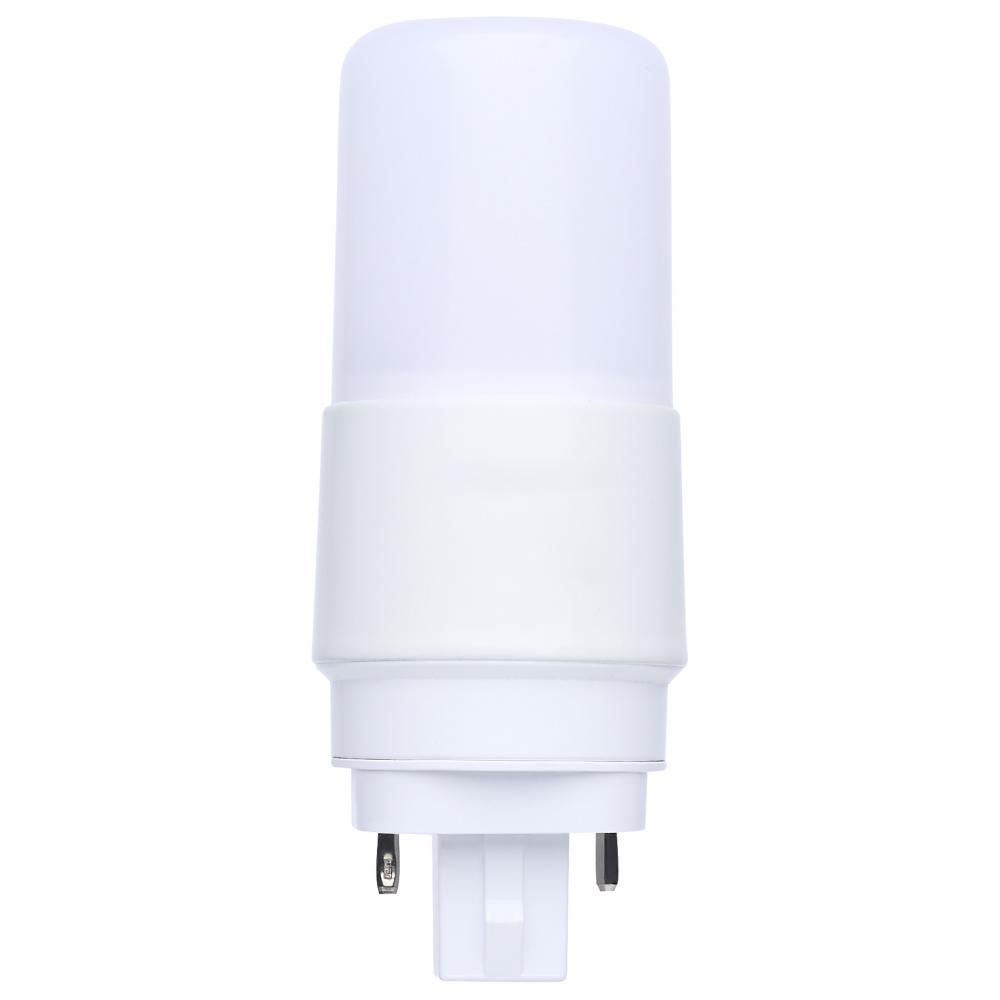

5 Watt; PL LED; G24D Base; Frost Finish; Type A/B Dual Ballast; 3500K; 120-277 Range Voltage (X9MX3)

Image may not reflect selected features
No Image
Available
5 Watt; PL LED; G24D Base; Frost Finish; Type A/B Dual Ballast; 3500K; 120-277 Range Voltage
additional image
BASE PRICE:
$
12
50
/ / 1
($12.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X9MX3
Dimensions:
Width: 1.52"
White
Availability:
  • Manufacturer has 1164 items available.
Description
Details
Downloads
5 Watt; PL LED; G24D Base; Frost Finish; Type A/B Dual Ballast; 3500K; 120-277 Range Voltage
Internal #:
X9MX3
Category:
Light Bulbs
Subcategory:
LED Bulbs
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3500K
Bulb Shape:
PL
Diameter:
1.52
EA Length:
1.77
Harmonized Codes:
8539.52.0091
Length:
3.9
Lumens:
630L
Shap Carton Width:
1.77
Ship Carton Height:
4.21
Ship Weight:
0.14
Warranty:
5-Years
Weight:
0.11
BAA Compliant:
No
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
300
Bulb ANSI Base:
G24d
Bulb Base:
G24d (2-Pin)
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0076
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White
Country Of Origin:
Thailand
CRI:
80+
DLC Approved:
No
Efficacy:
126.00 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
Type A+B Dual Mode
Feature 2:
Compact LED Design
Feature 3:
120-277V Range Voltage
Feature 4:
G24d Base
Feature 5:
Damp Location Rated
Feature 6:
50,000 Hour Functional Life
Feature 7:
5 Year Warranty
Flourescent Equivalent:
13W
Has Camera:
No
Has Emergency Battery:
No
Housing Color:
White
Indoor Outdoor:
Indoor
IOT Enabled:
No
Lamp Ballast Type A/B/C:
Type A/B
Lamp Filament:
LED
Lens Finish:
Frosted
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
SATCO NUVO's S21432 CFL replacement lamp delivers reliable, energy-efficient performance in a compact and versatile PL shape. This 5-watt model is designed to replace 13-watt CFLs, providing a 3500K neutral white light with a G24d base. A+B dual mode b
Material:
Aluminum
Minimum Compartment Size:
Length 6.10 in. Width 6.10 in. Height: 7.87 in.
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's CFL replacement lamps deliver reliable, energy-efficient performance in a compact and versatile PL shape. This comprehensive line offers 5W or 7W options to replace 13W, 18W, or 26W CFLs, with dedicated color temperatures from 2700K to 500
SDS class:
LED_Lamp
Short Description:
5CFL/L/835/G24D/AB/FR/U
Surge Protection:
Built-in-surge protection - 0.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
5W
