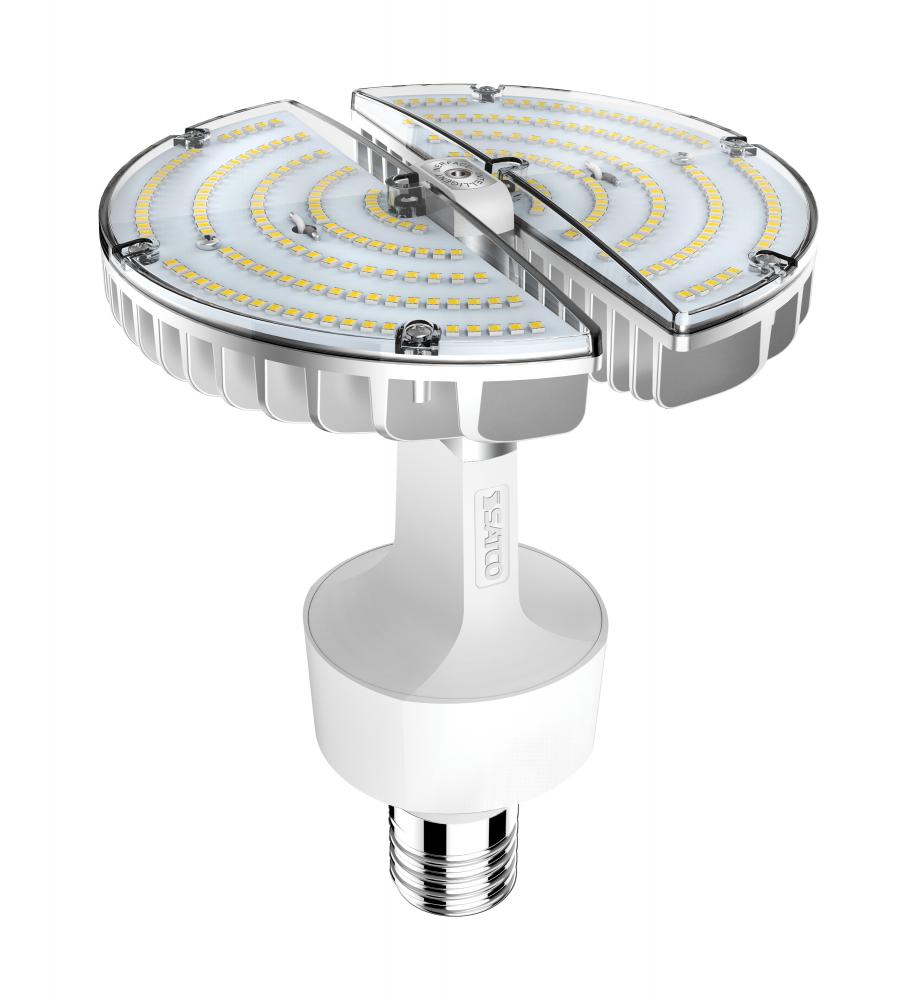

70 Watt LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass;100-277 Volt (LNFHQ)

Image may not reflect selected features
No Image
Available
70 Watt LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass;100-277 Volt
additional image
BASE PRICE:
$
199
50
/ / 1
($199.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
LNFHQ
Dimensions:
Width: 7.00"
No Finish
Availability:
  • Manufacturer has 724 items available.
Description
Details
Downloads
70 Watt LED HID Replacement; 4000K; Mogul extended base; Type B Ballast Bypass;100-277 Volt
Category:
Light Bulbs
Subcategory:
LED Bulbs
Style:
Traditional
Lumens:
3300+
Kelvin:
3501-4000
Wattage:
70w
Category:
LED
Sub-Category:
HID Replacements
Volts:
100V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
Corncob
Diameter:
7
EA Length:
7.95
Harmonized Codes:
8539.52.0091
Length:
11.59
Lumens:
10500L
Shap Carton Width:
4.65
Ship Carton Height:
12.8
Ship Weight:
3.09
Warranty:
5 Year Limited - Hi-Pro
Weight:
2.43
AC/DC:
Direct wire range voltage 100-277V
Additional Info:
80-954 - Dimmable via WiFi accessory; 80-955 - Hi-Pro Motion Sensor / PIR; 80-956 - Hi-Pro Photocell; 80-957 - Hi-Pro Motion Sensor / MW
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
EX39
Bulb Base:
Mogul Extended
Bulb Finish:
Clear
Burning Position:
Universal
Candle Power:
3377
Carton Cubic Feet:
0.2738
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Dimmable with optional modules
DLC Approved:
No
Efficacy:
150.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Cool white light
Feature 2:
LED HID
Feature 3:
Damp, Enclosed Rated Replacement Lamp
Feature 4:
L:11.59 D:7.00
Feature 5:
Type B Ballast Bypass
Has Emergency Battery:
No
HID Equivalent:
250W
Housing Color:
White
Incandescent Equivalent:
250W
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
Yes
IP Rating:
IP64
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Location Rating:
Damp
Long Description:
Satco's S13121 Hi-Pro 70W LED HID replacement bulb offers cool white light with multiple optional sensors, and a 360 degree beam spread. The lamp features dimmability with optional control modules, built-in surge protection and a Mogul extended base. W
Material:
Aluminum / Polycarbonate (PC)
Minimum Compartment Size:
Width: 8 in. Height: 8 in. Depth: 10.75 in.
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Multiple Optional Sensors Available
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
7
Romance Copy:
The Hi-Pro 70W LED HID replacement bulb offers cool white light with multiple optional sensors, and a 360 degree beam spread. The lamp features dimmability with optional control modules, built-in surge Protection and a Mogul extended base. With a high lume
SDS class:
LED_Lamp
Short Description:
70W/LED/HID/HP360/840/100-277V
Specification Notes:
This is not to be used with a ballast
Style:
Contemporary
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Thermal Management:
2 step thermal management: 1 - When the lamp body temperature is > 203F, the output of the lamps will reduce to 75 percent; 2 - When the driver temperature is >257F, the output of the lamps will reduce to 55 percent.
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
70W
