8.5 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable (X3JHQ)

Image may not reflect selected features
No Image
Available

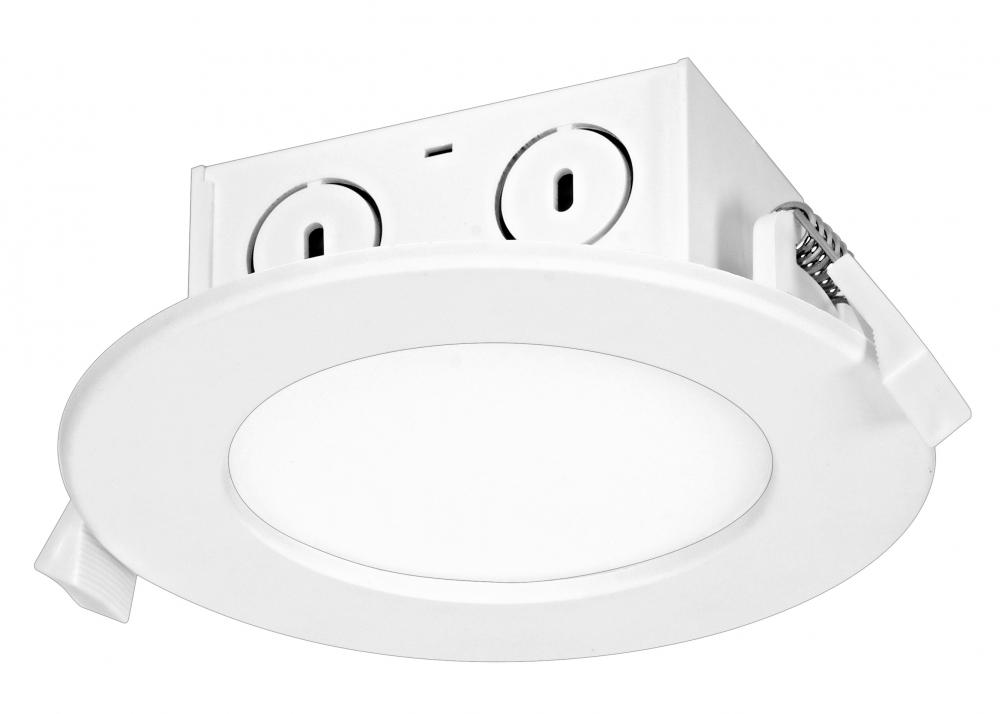

8.5 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable
BASE PRICE:
$
23
50
/ / 1
($23.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3JHQ
Dimensions:
Height: 1.94"
Width: 5.00"
White
Availability:
  • Manufacturer has 744 items available.
Recommended Items
Description
Details
Downloads
8.5 watt LED Direct Wire Downlight; Edge-lit; 4 inch; 4000K; 120 volt; Dimmable
Category:
Recessed Ltg.
Subcategory:
Other Bulbs , Other Recessed Ltg.
Finish:
White
Style:
Traditional
Option:
LED , Prop 65
Lumens:
450-800
Kelvin:
4001-4500
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Bulb Hours:
40000
Bulb Kelvin:
Cool White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
5
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
540L
Ship Carton Height:
5.12
Ship Carton Length:
6.3
Ship Carton Width:
2.56
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.071A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
100
CA Prop-65:
Lead
Carton Cubic Feet:
0.0478
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
4.3125 in. Cutout
Clearance Height:
2.36
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy:
63.53 LPW
FCC Compliant:
Yes
Feature 1:
Integrated J-Box for Direct Wire Installation
Feature 2:
Edge-lit Technology
Feature 3:
Damp rated for indoor use
Feature 4:
H:1.94 D:5.00
Feature 5:
H:1.94 D:5.00
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
45W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Long Description:
SATCO|NUVO's S39057 8.5-watt, LED 4 inch recessed fixture is edge lit. The direct wired downlight offers cool white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ce
Material:
Thermal Conductive Plastics
Max Drywall Thickness:
3/4 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.93
Quantity In Pack:
1
R9 Value:
59
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 8.5-watt, LED 4 inch recessed fixture is edge lit. The direct wired downlight offers cool white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings.
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
8.5WLED/DW/EL/4/40K/120V
Temperature (CCT):
4000K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.4
