9 watt LED Direct Wire Downlight; 5-6 inch; 2700K; 120 volt; Dimmable (X3JHJ)

Image may not reflect selected features
No Image
Available
9 watt LED Direct Wire Downlight; 5-6 inch; 2700K; 120 volt; Dimmable
BASE PRICE:
$
27
50
/ / 1
($27.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X3JHJ
Dimensions:
Height: 2.81"
Width: 6.69"
White
Availability:
  • Manufacturer has 1330 items available.
Recommended Items
Description
Details
Downloads
9 watt LED Direct Wire Downlight; 5-6 inch; 2700K; 120 volt; Dimmable
Category:
Recessed Ltg.
Subcategory:
Other Bulbs , Other Recessed Ltg.
Finish:
White
Style:
Traditional
Option:
LED , Prop 65
Lumens:
450-800
Kelvin:
2501-3000
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Bulb Hours:
40000
Bulb Kelvin:
Warm White
Bulb Shape:
Integrated LED
Bulb Type:
LED
Diameter:
6.69
Dimmable:
Yes-Dimmable
Harmonized Codes:
9405.11.8010
Lumens:
620L
Ship Carton Height:
6.93
Ship Carton Length:
6.93
Ship Carton Width:
3.66
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.075A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Spread:
100
CA Prop-65:
Lead
Carton Cubic Feet:
0.1017
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.875 in. Cutout
Clearance Height:
3.94
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
Efficacy:
68.89 LPW
FCC Compliant:
Yes
Feature 1:
Integrated J-Box for Direct Wire Installation
Feature 2:
Easy Install Spring Clips
Feature 3:
IC and Wet Location Rated
Feature 4:
No Recessed Can Required
Feature 5:
H:2.81 D:6.69
Finish Family:
White
Fixture shape:
Round
IC Rated:
Yes
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Long Description:

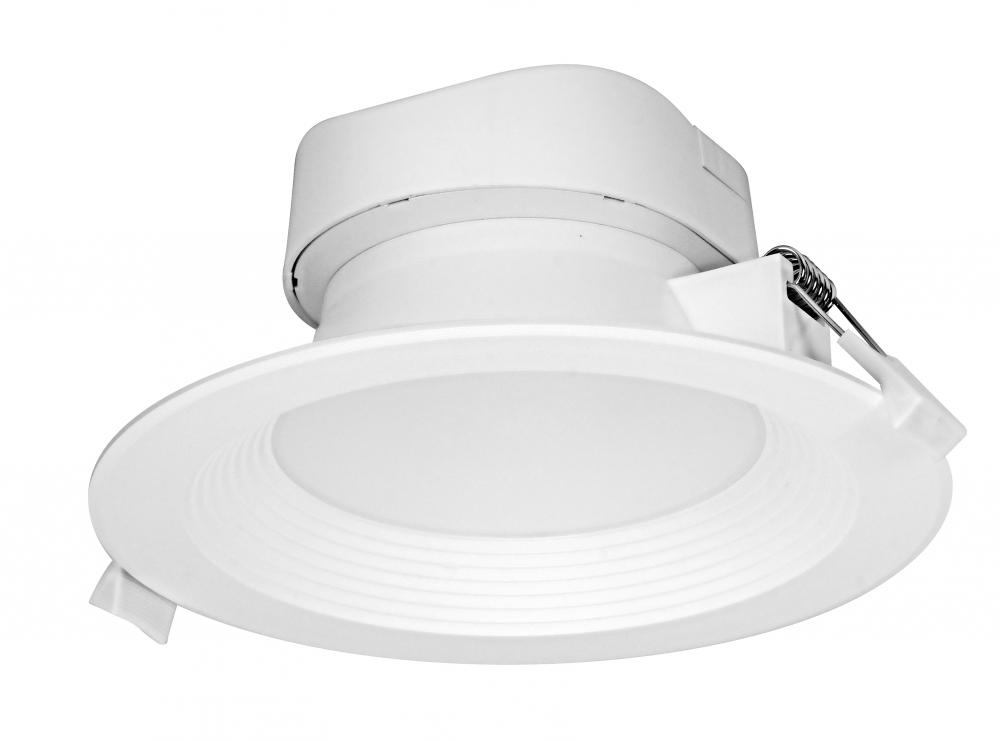

SATCO|NUVO's S39026 9-watt, LED 5-6 inch, recessed downlight fixture is direct wired and offers warm white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings. D
Material:
Thermal Conductive Plastics & Aluminum
Max Drywall Thickness:
1-1/4 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.95
Quantity In Pack:
1
R9 Value:
56
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 9-watt, LED 5-6 inch, recessed downlight fixture is direct wired and offers warm white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings. Dimmable
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
9WLED/DW/RDL/5-6/27K/120V
Temperature (CCT):
2700K
Title 20 Compliant:
No
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.44
