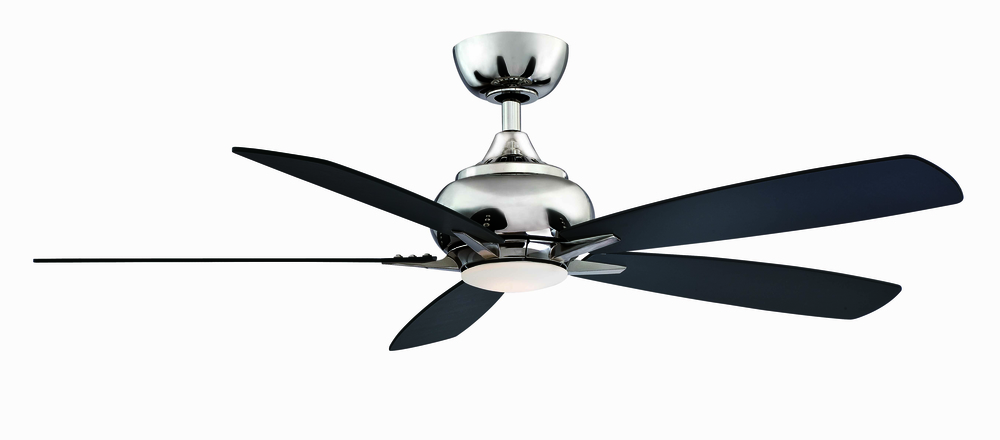

Doren - 52 inch - PN with LED Light Kit (K1DM)

Image may not reflect selected features
No Image
Available
Doren - 52 inch - PN with LED Light Kit
BASE PRICE:
$
138
50
/ / 1
($138.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
K1DM
Dimensions:
Height: 13.65"
Width: 52.00"
Length: 52.00"
Availability:
  • Manufacturer availability unavailable.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Energy Information at High Speed
Airflow:
5198 Cubic Feet per Minute
Electricity Rate:
59 Watts (excluded lights)
Airflow Efficiency:
89 Cubic Feet Per Minute Per Watt
Recommended Items
Description
Details
Downloads
This beautiful transitional ceiling fan by Fanimation will make a great addition to your space. Doren is available in two finishes and comes with a 17 watt LED light kit. This dry rated fan has a 3 speed AC motor and comes with a handheld remote. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Nickel
Style:
Traditional
Option:
Dry Rated , LED
Glass Finish or Style:
Frosted , Opal
Number of Blades:
5 Blades
Category:
Fan-Uni
Finish:
Polished Nickel
Option:
Dry Rated
Family:
Doren
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features , 5198 CFM on High , Limited Lifetime Warranty , Set of (5) 52 inch blades with multiple finish options and 17 watt LED light kit with bulb included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
5198
Air Flow Efficiency:
89
Amperage:
0.49
Blade Finish:
Black
Blade Pitch:
13
Bulb Type:
17 Watt LED Module
Canopy:
6.52 Dia x 2.59 H
Diameter:
9.12
Down Rod Included:
4.5
Electricity Used:
59
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
52
Light Kit Included:
Yes
Lumens / Light Output:
1350
Material:
Wood
Motor Fan Speed:
3
Motor RPM:
163
Motor Size:
172 X 20
Motor Type:
AC
Remote Control Included:
TR500
Ship Carton Height:
10.12
Ship Carton Length:
24.33
Ship Carton Width:
11.26
Ship Weight:
20.19
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
19.84
Airflow Efficiency Low:
160
Airflow Efficiency Medium:
114
Avg Airflow Efficiency:
97
Avg CFM Energy:
3774
Avg Energy Use Watts:
39
Avg Estimated Yearly Energy Cost:
11
Avg Estimated Yearly Energy Cost on HIGH:
17
Blade Finish Method:
Paper Overlay
Blade Material:
Wood
Blade Reversible:
No
Blade Sweep:
52
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
17
Canopy Diameter:
6.52 Dia
Canopy Height:
2.59 H
Cap Included:
No
Carton Cubic Feet:
1.6
Cartons Per Unit:
1
Case Height:
10.12
Case Length:
24.33
Case Quantity:
1
Case Weight Pounds:
20.19
Case Width:
11.26
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12.53
Ceiling To Bottom:
13.65
CFM Low:
2159
CFM Medium:
3756
Compatible Accessories:
CCK8002PN, DR1-12PN, DR1-18PN, DR1-24PN, DR1-36PN, DR1-48PN, DR1-60PN, DR1-72PN, DR1-CPPN, SCB1-52
Compatible Controls:
BTCR9, BTR9, WFR50
Compatible Wall Controls:
WC2WH, WR501WH
Country of Origin:
China
CRI:
90
Current Draw High:
0.49
Current Draw Low:
0.23
Current Draw Medium:
0.37
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Dry Rated:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
9.12
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
54
Light Kit Energy Star:
No
Max Ceiling Slope:
27
Max Watt:
59
Maximum Slope Degree:
27
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
5
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High (VI):
163
RPM Low (II):
72
RPM Medium (IV):
121
RPM Medium IV:
84
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
13
Watts Medium:
33
Watts Per Bulb:
17


Additional Information:
  • 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
  • 5198 Cfm On High
  • Limited Lifetime Warranty
  • Set Of (5) 52 Inch Blades With Multiple Finish Options And 17 Watt Led Light Kit With Bulb Included
  • Tr500 Handheld Remote With 23a Battery Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
