Edgewood 72 - 72 Inch - BL (K3CU)

Image may not reflect selected features
No Image
Available

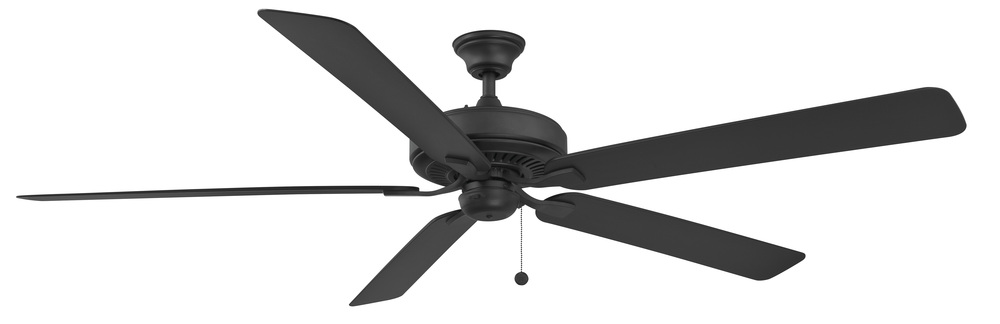

Edgewood 72 - 72 Inch - BL
additional image
BASE PRICE:
$
360
50
/ / 1
($360.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
K3CU
Dimensions:
Height: 10.54"
Width: 72.00"
Length: 72.00"
Availability:
  • Manufacturer has 45 items available.
Energy Information at High Speed
Airflow:
4863 Cubic Feet per Minute
Electricity Rate:
93 Watts (excluded lights)
Airflow Efficiency:
52 Cubic Feet Per Minute Per Watt
Description
Details
Downloads
The Edgewood by Fanimation is an aesthetically pleasing ceiling fan that has it all. The Edgewood boasts the unique capacity to operate in both dry and wet locations. This versatile ceiling fan compliments any interior or exterior design with finish options ranging from black with black blades, brushed nickel with dark walnut blades, dark bronze with dark walnut blades and matte white with matte white blades. The Edgewood includes a 4.5 inch stainless steel downrod and is ceiling slope compatible. The Edgewood can be purchased with an optional close-to-ceiling kit for a more snug fit. *Wet Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Category:
Exterior , Fans
Subcategory:
Exterior Fans , Outdoor Fans
Finish:
Black
Style:
Traditional
Option:
Wet Rated
Voltage:
10-99
Number of Blades:
5 Blades
Location Rating:
Wet Rated
Category:
Fan-Uni
Finish:
Black
Option:
Wet
Family:
Edgewood 72
Voltage:
120 V
Additional Info:
3 speed AC motor with reverse switch , 4863 CFM on High , Limited Lifetime Warranty , Pull Chain Operated , Set of (5) wet rated blades in multiple finish options included and light kit adaptable (sold separa , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
4863
Air Flow Efficiency:
52
Amperage:
0.78
Blade Finish:
Black
Blade Pitch:
13.5
Canopy:
5.97 Dia x 2.36 H
Diameter:
12.6
Down Rod Included:
4.5
Electricity Used:
93
Harmonized Codes:
8414.51.3000
Length:
72
Light Kit Included:
No
Material:
Composite
Max Height:
14.17
Motor Fan Speed:
3
Motor RPM:
97
Motor Size:
212 X 35
Motor Type:
AC
Ship Carton Height:
11.3
Ship Carton Length:
31.81
Ship Carton Width:
15.2
Ship Weight:
41.01
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
36.84
Airflow Efficiency Low:
127
Airflow Efficiency Medium:
84
Avg Airflow Efficiency:
64
Avg CFM Energy:
3720
Avg Energy Use Watts:
58
Avg Estimated Yearly Energy Cost:
16
Avg Estimated Yearly Energy Cost on HIGH:
26
Blade Finish Method:
Injected
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
72
Canopy Diameter:
5.97 Dia
Canopy Height:
2.36 H
Cap Included:
No
Carton Cubic Feet:
3.16
Cartons Per Unit:
1
Case Height:
11.3
Case Length:
31.81
Case Quantity:
1
Case Weight Pounds:
41.01
Case Width:
15.2
CEC Uploaded:
Yes
Ceiling To Blade Edge:
8.88/12.51
Ceiling To Bottom:
10.54/14.17
Ceiling to Bottom with LK:
18.7
CFM Low:
2424
CFM Medium:
3620
Compatible Accessories:
DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCK1-52BLW
Compatible Controls:
BTCR9, BTR9, CR500, CRL4WH, WFR50
Compatible Light Kits:
F5BL, F6BL, F8BL, G1FW, G1MS, G1TST, G2OP, G2TST, G3CL, G3OP, G3OPS, G4CL, G4OPS, G4TST, G5OP, G5TST, G6CL, G6OP, G6TST, LK179BLW
Compatible Wall Controls:
CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin:
China
Current Draw High:
0.78
Current Draw Low:
0.35
Current Draw Medium:
0.53
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
12.6
Included Control Type:
Pull Chain
Leadwire:
80
Max Ceiling Slope:
17
Max Watt:
93
Maximum Slope Degree:
17
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
5
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High (VI):
97
RPM Low (II):
40
RPM Medium (IV):
63
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
19
Watts Medium:
43
Wet Rated:
Yes


Additional Information:
  • 3 Speed Ac Motor With Reverse Switch
  • 4863 Cfm On High
  • Limited Lifetime Warranty
  • Pull Chain Operated
  • Set Of (5) Wet Rated Blades In Multiple Finish Options Included And Light Kit Adaptable (sold Separately)
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
