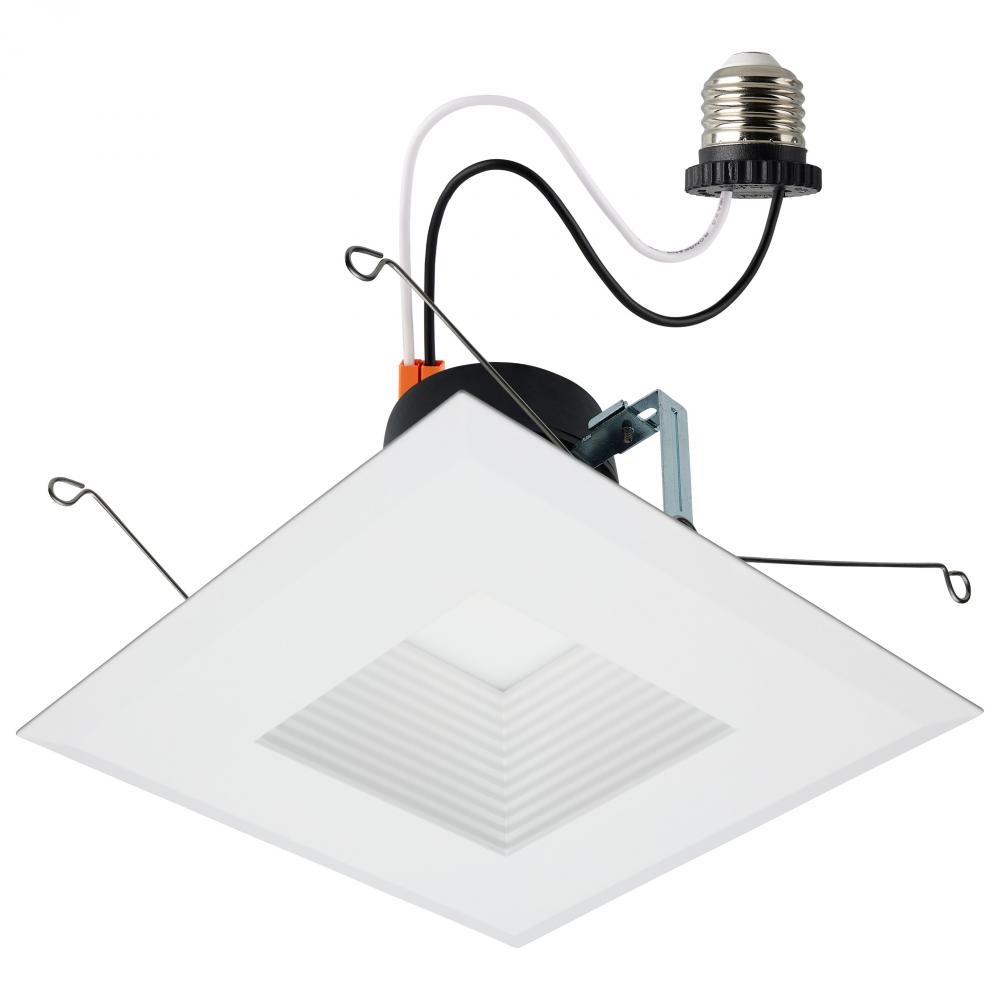

Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT; (X6N4F)

Image may not reflect selected features
No Image
Available
Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT;
additional image
BASE PRICE:
$
30
50
/ / 1
($30.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6N4F
Dimensions:
Height: 4.21"
Width: 7.13"
White
Availability:
  • Manufacturer has 1180 items available.
Recommended Items
Description
Details
Downloads
Field Selectable LED Downlight Retrofit; Deep Baffle; 8/10.5/13.5 Watts; 27K/30K/35K/40K/50K CCT; 5-6 Inch; Square Shape; White Finish; 120 Volts
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Kelvin:
Warm White to Natural Light
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Length:
7.13
Lumens:
800L/1000L/1200L
Ship Carton Height:
8.460000000000001
Ship Carton Length:
7.28
Ship Carton Width:
4.41
Warranty:
5 Year Limited - Fixtures
Air Tight:
No
Amps:
0.071/0.092/0.115A
ANSI Base:
E26 Adapter
Beam Spread:
80
CA Prop-65:
Lead
Can Size:
5-6 in.
Carton Cubic Feet:
0.1572
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.00 in. Cutout
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Efficacy:
100.00/95.24/88.89 LPW
ES Unique ID:
ESID-3354724
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable
Feature 2:
Stepped Baffle for Reduced Glare
Feature 3:
Dimmable
Feature 4:
E26 Adapter Included
Feature 5:
90 CRI
Feature 6:
Wet Location Rated
Feature 7:
Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements
Feature 8:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Square
IC Rated:
No
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO’s S11885 5/6-inch square field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users c
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Color Box
Power Factor:
0.96
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO’s LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enhanc
Safety Listing:
cETLus - Classified
Short Description:
13.5WLED/DLR/5-6/WS/5CCT/SQ/DB
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<25%
Wattage Selectable:
Yes
Weight Lb.:
0.8
