Kwad - 52 Inch - CH with Light (K2DT)

Image may not reflect selected features
No Image
Available

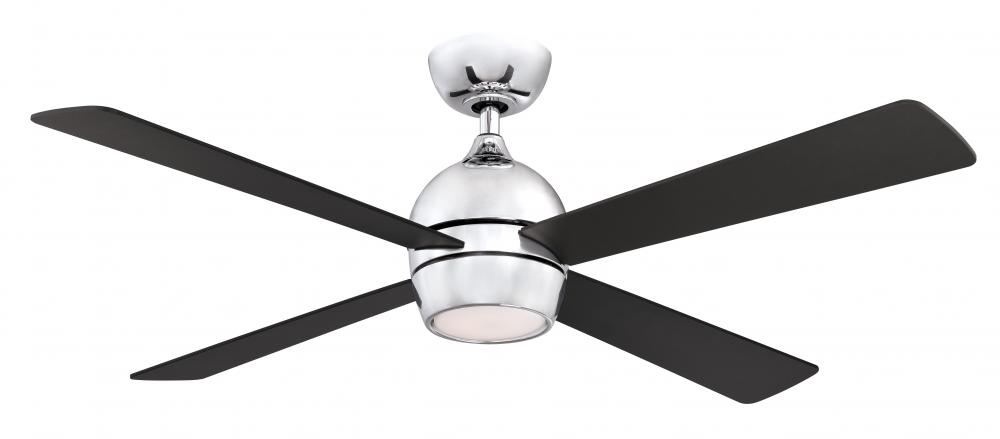

Kwad - 52 Inch - CH with Light
BASE PRICE:
$
160
50
/ / 1
($160.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
K2DT
Dimensions:
Height: 15.05"
Width: 52.00"
Length: 52.00"
Availability:
  • Manufacturer availability unavailable.
  • This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
Energy Information at High Speed
Airflow:
4738 Cubic Feet per Minute
Electricity Rate:
56 Watts (excluded lights)
Airflow Efficiency:
85 Cubic Feet Per Minute Per Watt
Recommended Items
Description
Details
Downloads
Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Chrome
Style:
Traditional
Option:
Dry Rated , LED
Glass Finish or Style:
Frosted , Opal
Number of Blades:
4 Blades
Category:
Fan-Uni
Finish:
Chrome
Option:
Dry Rated
Family:
Kwad 52
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
3 speed AC motor with reverse switch - fan speed, light and sleep timer functions , 3533 CFM on High , Limited Lifetime Warranty , Set of 4 blades with multiple finish options and 18 watt LED light kit included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
4738
Air Flow Efficiency:
85
Amperage:
0.47
Blade Finish:
Black
Blade Pitch:
12
Bulb Type:
18 Watt LED Module
Canopy:
6.5 Dia x 2.58 H
Diameter:
8.4
Down Rod Included:
4.5
Electricity Used:
56
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
52
Light Kit Included:
Yes
Lumens / Light Output:
1500
Material:
Wood
Motor Fan Speed:
3
Motor RPM:
170
Motor Size:
153 X 13
Motor Type:
AC
Remote Control Included:
TR500
Ship Carton Height:
10.12
Ship Carton Length:
25.91
Ship Carton Width:
10.87
Ship Weight:
18.23
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
16.31
Airflow Efficiency Low:
156
Airflow Efficiency Medium:
107
Avg Airflow Efficiency:
96
Avg CFM Energy:
3533
Avg Energy Use Watts:
37
Avg Estimated Yearly Energy Cost:
10
Avg Estimated Yearly Energy Cost on HIGH:
16
Blade Finish Method:
Paper Overlay
Blade Material:
Wood
Blade Reversible:
No
Blade Sweep:
52
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
18
Canopy Diameter:
6.5 Dia
Canopy Height:
2.58 H
Cap Included:
No
Carton Cubic Feet:
1.65
Cartons Per Unit:
1
Case Height:
10.12
Case Length:
25.91
Case Quantity:
1
Case Weight Pounds:
18.23
Case Width:
10.87
CEC Uploaded:
Yes
Ceiling To Blade Edge:
12.27
Ceiling To Bottom:
15.05
CFM Low:
2168
CFM Medium:
3677
Compatible Accessories:
CCK8002CH, DR1-12CH, DR1-18CH, DR1-24CH, DR1-36CH, DR1-48CH, DR1-60CH, DR1-72CH, DR1-CPCH, SCB1-52
Compatible Controls:
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls:
CWRL4LA, CWRL4WH, WC2WH, WR501WH
Country of Origin:
China
CRI:
90
Current Draw High:
0.47
Current Draw Low:
0.24
Current Draw Medium:
0.38
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Dry Rated:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
8.4
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
54
Light Kit Energy Star:
No
Max Ceiling Slope:
27
Max Watt:
56
Maximum Slope Degree:
27
Motor Finish Method Type:
Plated
Motor Reversible:
Yes
Number of Blades:
4
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High (VI):
170
RPM Low (II):
77
RPM Medium (IV):
127
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
14
Watts Medium:
34
Watts Per Bulb:
18


Additional Information:
  • 3 Speed Ac Motor With Reverse Switch - Fan Speed, Light And Sleep Timer Functions
  • 3533 Cfm On High
  • Limited Lifetime Warranty
  • Set Of 4 Blades With Multiple Finish Options And 18 Watt Led Light Kit Included
  • Tr500 Handheld Remote With 23a Battery Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
