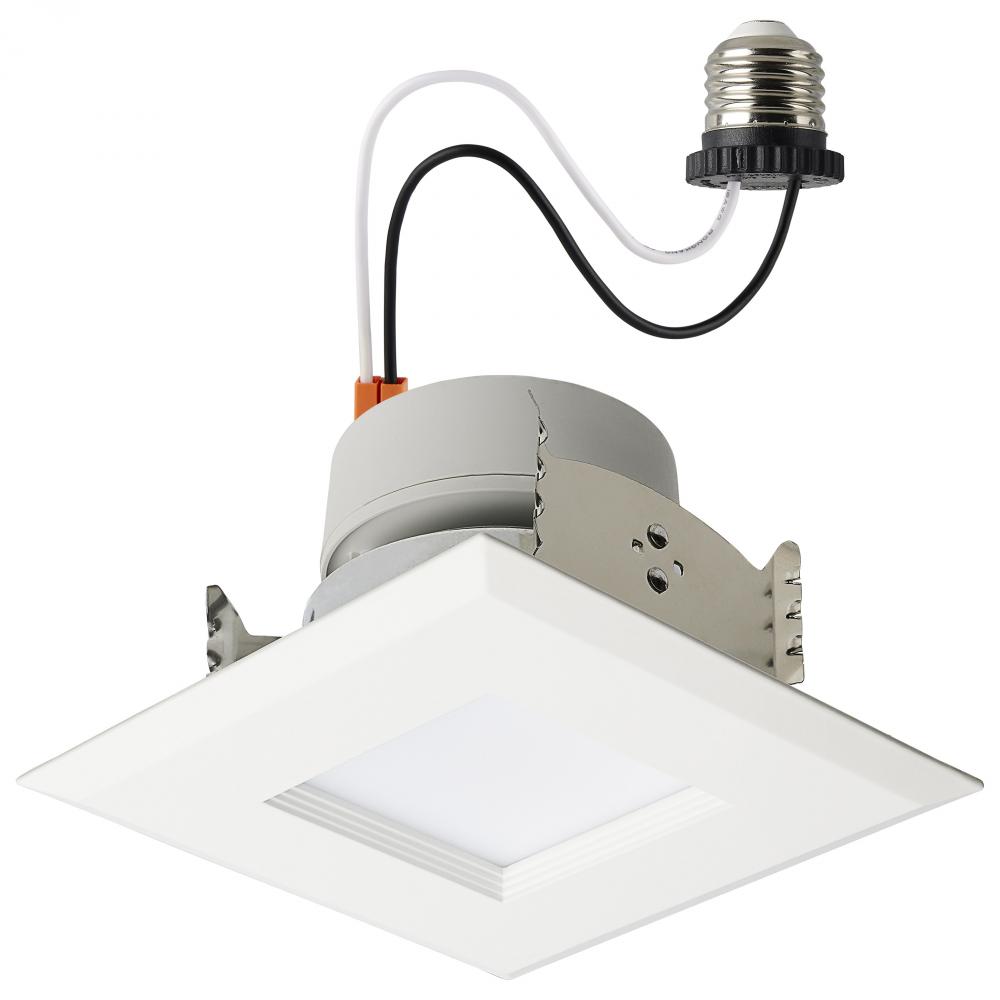

LED Retrofit Downlight; 5.5/6.5/8 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; (X6M6W)

Image may not reflect selected features
No Image
Available
LED Retrofit Downlight; 5.5/6.5/8 Wattage Selectable; CCT and Lumens Selectable; 120 Volt;
additional image
BASE PRICE:
$
24
50
/ / 1
($24.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
X6M6W
Dimensions:
Height: 3.13"
Width: 5.31"
White
Availability:
  • Manufacturer has 4237 items available.
Recommended Items
Description
Details
Downloads
LED Retrofit Downlight; 5.5/6.5/8 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; ColorQuick and PowerQuick Technology; Square; White Finish
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Option:
Energy Star , LED , Prop 65
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Bulb Hours:
50000
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Yes-Dimmable
Harmonized Codes:
8539.52.0091
Length:
5.31
Lumens:
500L/600L/700L
Ship Carton Height:
5.51
Ship Carton Length:
5.51
Ship Carton Width:
3.35
Warranty:
5 Year Limited - Fixtures
Air Tight:
No
Amps:
0.046/0.054/0.067A
ANSI Base:
E26 Adapter
BAA Compliant:
No
Beam Spread:
90
CA Prop-65:
Lead
Can Size:
4 in.
Carton Cubic Feet:
0.0589
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90
Dimmable Down To:
100 to 10 percent
Dimming Type:
Triac
Efficacy:
90.91/92.31/87.50 LPW
ES Category:
Downlight Solid State Retrofit
ES Unique ID:
ESID-2617816
FCC Compliant:
Yes
Feature 1:
Field Selectable (CCT and Wattage)
Feature 2:
Stepped Baffle for Reduced Glare
Feature 3:
90 CRI
Feature 4:
E26 Adapter Included
Feature 5:
T20 and T24 Compliant
Feature 6:
Aluminum Construction with PolyCarbonate Lens
Feature 7:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Square
Has Driver:
Yes
IC Rated:
No
Incandescent Equivalent:
60W
Includes:
E26 Adapter included (S9001)
Indoor Outdoor:
Indoor
IOT Enabled:
No
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's new S18802, LED Field Selectable Retrofit Downlight, is the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows
Material:
Aluminum ADC12
Operating Frequency:
60Hz
Operating Temprature:
-20C (-4F) to +40C (+104F)
Pack Type:
Color Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
73
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED Field Selectable Retrofit Downlights are the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows for the pe
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
8LED/RDL/4/WS/5CCT/SQ
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
Yes
Weight Lb.:
0.59
