Odyn Custom Motor - GRW with LED Light Kit (G7KC)

Image may not reflect selected features
No Image
Available

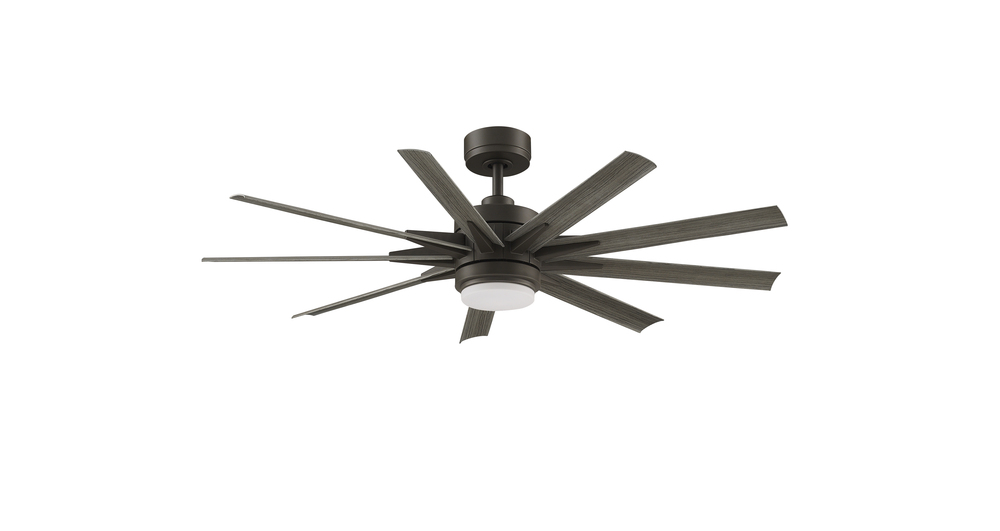

Odyn Custom Motor - GRW with LED Light Kit
BASE PRICE:
$
600
50
/ / 1
($600.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
G7KC
Dimensions:
Height: 22.64"
Width: 56.00"
Length: 56.00"
22.33 , 22.64
Availability:
  • Manufacturer has 84 items available.
Energy Information at High Speed
Airflow:
8741 Cubic Feet per Minute
Electricity Rate:
34 Watts (excluded lights)
Airflow Efficiency:
329 Cubic Feet Per Minute Per Watt
Recommended Items
Description
Details
Downloads
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Fan Motor Without Blades
Finish:
Gray , Miscellaneous
Style:
Traditional
Option:
Energy Star , Wet Rated , LED
Voltage:
10-99
Glass Finish or Style:
Frosted , Opal
Lumens:
1101-1600
Number of Blades:
8+ Blades
Location Rating:
Wet Rated
Wattage:
18w
Category:
Fan-Multi
Finish:
Matte Greige
Option:
Wet
Family:
Odyn Custom
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
18 watt LED light kit with cover and bulb included; Set of 9 Wet Rated blades with multiple finish o , 8813 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and , ENERGY STAR Most Efficient 2020 , TR205D handheld remote with CR2032 batteries included
Air Flow CFM:
8741
Air Flow Efficiency:
329
Amperage:
0.44
Blade Pitch:
12
Bulb Type:
18 Watt LED Module
Canopy:
6.46 Dia x 2.58 H
Diameter:
8.27
Down Rod Included:
6
Electricity Used:
34
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
56, 64, 72
Light Kit Included:
Yes
Lumens / Light Output:
1500
Max Length:
72
Max Width:
72
Motor Fan Speed:
16
Motor RPM:
84
Motor Size:
DC165NM
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
10.91
Ship Carton Length:
27.48
Ship Carton Width:
14.8
Ship Weight:
28.89
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
25.91
Airflow Efficiency Low:
978
Airflow Efficiency Medium:
581
Avg Airflow Efficiency:
347
Avg CFM Energy:
7476
Avg Energy Use Watts:
22
Avg Estimated Yearly Energy Cost:
6
Avg Estimated Yearly Energy Cost on HIGH:
8
Blade Reversible:
No
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
18
Canopy Diameter:
6.46 Dia
Canopy Height:
2.58 H
Cap Included:
Yes
Carton Cubic Feet:
2.57
Cartons Per Unit:
1
Case Height:
10.91
Case Length:
27.48
Case Quantity:
1
Case Weight Pounds:
28.89
Case Width:
14.8
CEC Uploaded:
Yes
Ceiling To Blade Edge:
18.46
Ceiling To Bottom:
22.33 , 22.64
CFM Low:
3138
CFM Medium:
6086
Compatible Accessories:
CCK8002GRW, DR1-CPGR, DR1SS-12GRW, DR1SS-18GRW, DR1SS-24GRW, DR1SS-36GRW, DR1SS-48GRW, DR1SS-60GRW, DR1SS-72GRW, SCB1-52
Compatible Blades:
BPW8152-56BLW, BPW8152-56BNW, BPW8152-56DWAW, BPW8152-56MWW, BPW8152-56WEW, BPW8152-64BLW, BPW8152-64BNW, BPW8152-64DWAW, BPW8152-64MWW, BPW8152-64WEW, BPW8152-72BLW, BPW8152-72BNW, BPW8152-72DWAW, BPW8152-72MWW, BPW8152-72WEW
Compatible Wall Controls:
TW306
Country of Origin:
China
CRI:
90
Current Draw High:
0.36
Current Draw Low:
0.06
Current Draw Medium:
0.16
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
12
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
8.27
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Light Kit Energy Star:
Yes
Max Ceiling Slope:
27
Max Watt:
27
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
9
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
78
RPM Low (II):
29
RPM Medium (IV):
56
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
3
Watts Medium:
10
Watts Per Bulb:
18
Wet Rated:
Yes


Additional Information:
  • 18 Watt Led Cct Select Light Kit With Cover And Bulb Included; Set Of (9) Wet Rated Blades With Multiple Finish Options Available (sold Separately)
  • 8813 Cfm On High
  • Compatible With Most Smart Home Devices (required Controls Sold Separately)
  • Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
  • Energy Star Most Efficient 2022
  • Tr305 Handheld Remote With 23a Battery Included
