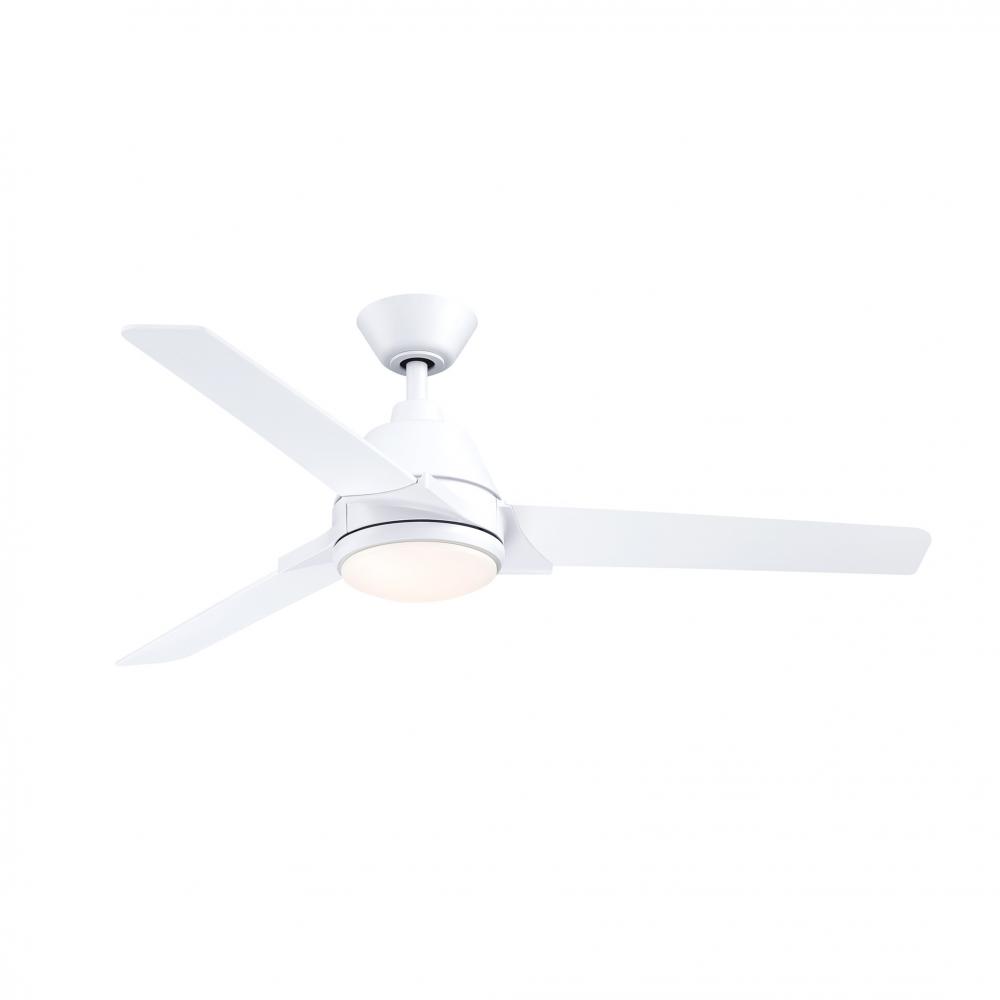

Pyramid - 52 inch - MW with MW Blades and LED LK (K4D3)

Image may not reflect selected features

No Image
Available

Pyramid - 52 inch - MW with MW Blades and LED LK

BASE PRICE:

320

/ / 1

($320.50 / 1)

WAS

Call for Price

Item #:

K4D3

Dimensions:

Height: 14.52"

Width: 52.00"

Length: 52.00"

Finish:

Changes Other Selections...

Availability:

Manufacturer availability unavailable.

Description

Details

Downloads

A stunning addition to your home, the 52 inch Pyramid ceiling fan features an elegant aged bronze finish that blends well in both modern and traditional decors, while a simple design and easy operation make this fan easy to install. This charming fan with 3 blades is perfect for any indoor or covered outdoor space. 3 speed settings make it easy to maintain the ideal comfort level. Includes TR400S remote, so you can control the fan from anywhere in the room.

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Option:

Damp Rated

Voltage:

10-99

Lumens:

1101-1600

Number of Blades:

3 Blades

Kelvin:

2501-3000

Wattage:

18w

Category:

Fan-Uni

Finish:

Matte White

Option:

Damp Rated

Family:

Pyramid

Glass:

Opal Frosted

Voltage:

120V

Number of Bulbs:

1 Bulbs

Air Flow CFM:

5217

Air Flow Efficiency:

Blade Pitch:

Bulb Type:

18W LED Module

Canopy:

6.1 Dia, 2.24 H

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

Light Kit Included:

Yes

Lumens / Light Output:

1400

Motor Size:

153 x 20

Motor Type:

Ship Carton Height:

8.98

Ship Carton Length:

24.41

Ship Carton Width:

9.65

Ship Weight:

19.29

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

17.4

Airflow Efficiency Low:

171

Airflow Efficiency Medium:

119

Avg Airflow Efficiency:

110

Avg CFM Energy:

4165

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

6.1

Canopy Height:

2.24

Cap Included:

Yes

Case Quantity:

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.18

Ceiling to Bottom No LK:

13.15

Ceiling to Bottom with LK:

14.52

CFM Low:

2166

CFM Medium:

3638

Compatible Accessories:

CCK8002MW, DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, SCK1-52MW

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

Current Draw High:

0.47

Current Draw Low:

0.22

Current Draw Medium:

0.35

Damp Rated:

Yes

DOE Classification:

LSSD

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

Housing Diameter:

8.27

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High (VI):

187

RPM Low (II):

RPM Medium (IV):

131

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60HZ

Watts Low:

Watts Medium:

Watts Per Bulb:

Additional Information:

3-Speed, Reversible AC Motor provides airflow up to 5,217 CFM. Compatible with Fanimation Bluetooth fanSync and most smart home devices (required controls sold separately)
Damp Rated for indoor and outdoor use
Downrod included - 1" diameter x 4.5" length
Features 3 blades and an 18-watt LED light kit with frosted glass shade
TR500 hand-held remote control is included. Push button remote control with variable fan speeds, infinite light levels and off button
