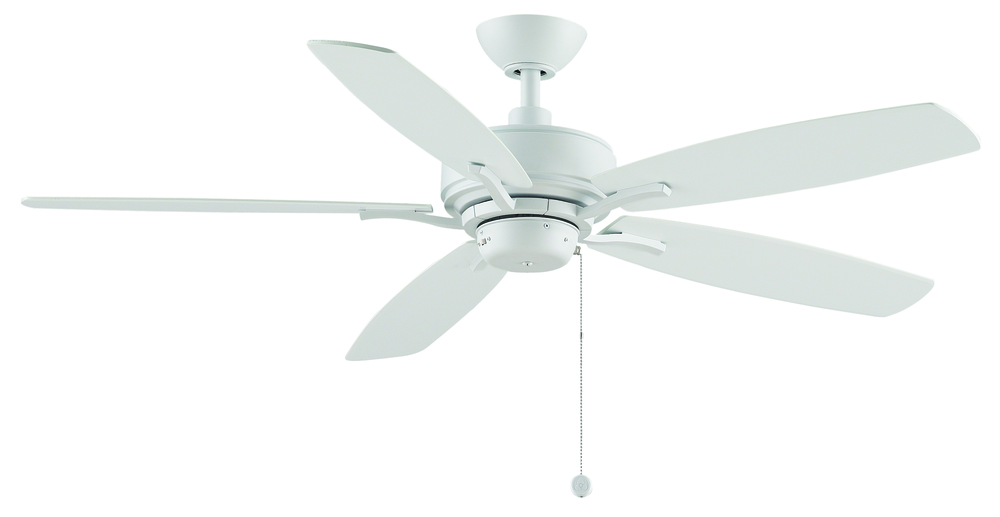

Aire Deluxe - 52 inch - MW with MW Blades (G2QT)

Image may not reflect selected features

No Image
Available

Aire Deluxe - 52 inch - MW with MW Blades

BASE PRICE:

160

/ / 1

($160.50 / 1)

WAS

Call for Price

Item #:

G2QT

Dimensions:

Height: 12.77"

Width: 52.00"

Length: 52.00"

Availability:

Manufacturer has 94 items available.

Energy Information at High Speed

Airflow:

4908 Cubic Feet per Minute

Electricity Rate:

55 Watts (excluded lights)

Airflow Efficiency:

89 Cubic Feet Per Minute Per Watt

Description

Details

Downloads

Aire Deluxe from Fanimation is an exceptional transitional design for any and every indoor space. Available in 52 and 44 inch blade sweeps, three different finishes, a variety of blade finishes, and with the option of a light kit. With all of the possibilities, there is an Aire Deluxe for everyone. The Aire Deluxe features an AC motor that operates on three forward and three reverse speeds. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Style:

Traditional

Option:

Dry Rated

Voltage:

10-99

Number of Blades:

5 Blades

Location Rating:

Dry Rated

Category:

Fan-Uni

Finish:

Matte White

Option:

Dry Rated

Family:

Aire Deluxe

Voltage:

120 V

Additional Info:

3 speed AC motor with reverse switch , 3941 CFM on High , Lifetime Limited Warranty , Pull Chain Operated , Set of 5 reversible 52 inch blades and (2) 9 watt LED bulbs and light kit included , WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

4908

Air Flow Efficiency:

Amperage:

0.46

Blade Finish:

Matte White

Blade Pitch:

Blade Span:

Canopy:

5.91 Dia x 2.13 H

Diameter:

9.06

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Material:

Wood

Motor Fan Speed:

Motor RPM:

158

Motor Size:

153 X 15

Motor Type:

Pull Chain Included:

Yes

Ship Carton Height:

9.3

Ship Carton Length:

Ship Carton Width:

10.9

Ship Weight:

17.67

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

15.36

Airflow Efficiency Low:

183

Airflow Efficiency Medium:

126

Avg Airflow Efficiency:

102

Avg CFM Energy:

3496

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Paper Overlay

Blade Material:

Wood

Blade Reversible:

Blade Sweep:

Canopy Diameter:

5.91 Dia

Canopy Height:

2.13 H

Cap Included:

Carton Cubic Feet:

1.35

Cartons Per Unit:

Case Height:

9.3

Case Length:

Case Quantity:

Case Weight Pounds:

17.67

Case Width:

10.9

CEC Uploaded:

Yes

Ceiling To Blade Edge:

10.59

Ceiling To Bottom:

12.77

CFM Low:

1897

CFM Medium:

3288

Compatible Accessories:

CCK8002MW, DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCK1-52MW

Compatible Controls:

BTCR9, BTR9, CR500, CRL4WH, WFR50

Compatible Wall Controls:

CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

Current Draw High:

0.46

Current Draw Low:

0.2

Current Draw Medium:

0.33

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Dry Rated:

Yes

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

9.06

Included Control Type:

Pull Chain

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

158

RPM Low (II):

RPM Medium (IV):

113

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Additional Information:

3 Speed Ac Motor With Reverse Switch
3941 Cfm On High
Lifetime Limited Warranty
Pull Chain Operated
Set Of 5 Reversible 52 Inch Blades And (2) 9 Watt Led Bulbs And Light Kit Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)

Click Here to View Spec Sheet Details

Click Here to View Owners Manual
