Edgewood 52 - 52 Inch - BL (K3CK)

Image may not reflect selected features
No Image
Available

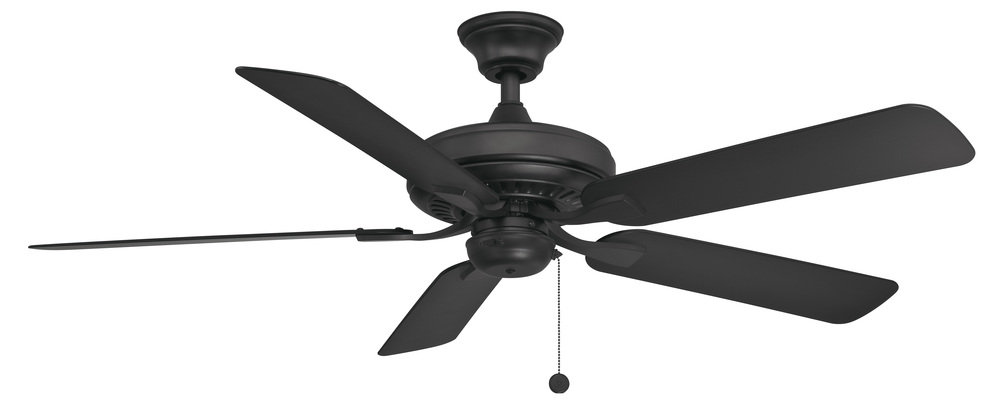

Edgewood 52 - 52 Inch - BL
additional image
BASE PRICE:
$
280
50
/ / 1
($280.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
K3CK
Dimensions:
Height: 10.03"
Width: 52.00"
Length: 52.00"
Availability:
  • Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
5939 Cubic Feet per Minute
Electricity Rate:
74 Watts (excluded lights)
Airflow Efficiency:
81 Cubic Feet Per Minute Per Watt
Description
Details
Downloads
The Edgewood by Fanimation is an aesthetically pleasing ceiling fan that has it all. The Edgewood boasts the unique capacity to operate in both dry and wet locations. This versatile ceiling fan compliments any interior or exterior design with finish options ranging from black with black blades, brushed nickel with dark walnut blades, dark bronze with dark walnut blades and matte white with matte white blades. The Edgewood includes a 4.5 inch stainless steel downrod and is ceiling slope compatible. The Edgewood can be purchased with an optional close-to-ceiling kit for a more snug fit. *Wet Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Category:
Exterior , Fans
Subcategory:
Exterior Fans , Outdoor Fans
Finish:
Black
Style:
Traditional
Option:
Wet Rated
Voltage:
10-99
Number of Blades:
5 Blades
Location Rating:
Wet Rated
Category:
Fan-Uni
Finish:
Black
Option:
Wet
Family:
Edgewood 52
Voltage:
120 V
Additional Info:
3 speed AC motor with reverse switch , 5939 CFM on High , Limited Lifetime Warranty , Pull Chain Operated , Set of (5) wet rated blades in multiple finish options included and light kit adaptable (sold separa , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
5939
Air Flow Efficiency:
81
Amperage:
0.61
Blade Finish:
Black
Blade Pitch:
15
Canopy:
5.97 Dia x 2.36 H
Diameter:
11.42
Down Rod Included:
4.5
Electricity Used:
74
Harmonized Codes:
8414.51.3000
Length:
52
Light Kit Included:
No
Material:
Composite
Max Height:
13.66
Motor Fan Speed:
3
Motor RPM:
172
Motor Size:
188 x 25
Motor Type:
AC
Ship Carton Height:
9.72
Ship Carton Length:
22.76
Ship Carton Width:
15.2
Ship Weight:
25.26
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
22.93
Airflow Efficiency Low:
166
Airflow Efficiency Medium:
109
Avg Airflow Efficiency:
92
Avg CFM Energy:
4185
Avg Energy Use Watts:
45
Avg Estimated Yearly Energy Cost:
21
Avg Estimated Yearly Energy Cost on HIGH:
17
Blade Finish Method:
Injected
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Canopy Diameter:
5.97 Dia
Canopy Height:
2.36 H
Cap Included:
No
Carton Cubic Feet:
1.95
Cartons Per Unit:
1
Case Height:
9.72
Case Length:
22.76
Case Quantity:
1
Case Weight Pounds:
25.26
Case Width:
15.2
CEC Uploaded:
Yes
Ceiling To Blade Edge:
8.36 / 11.99
Ceiling To Bottom:
10.03 / 13.66
CFM Low:
2197
CFM Medium:
3828
Compatible Accessories:
DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCK1-52BLW
Compatible Controls:
BTCR9, BTR9, CR500, CRL4WH, WFR50
Compatible Light Kits:
F5BL, F6BL, F8BL, G1FW, G1MS, G1TST, G2OP, G2TST, G3CL, G3OP, G3OPS, G4CL, G4OPS, G4TST, G5OP, G5TST, G6CL, G6OP, G6TST, LK179BLW
Compatible Wall Controls:
CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH
Country of Origin:
China
Current Draw High:
0.61
Current Draw Low:
0.26
Current Draw Medium:
0.42
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
11.42
Included Control Type:
Pull Chain
Leadwire:
54
Max Ceiling Slope:
17
Max Watt:
74
Maximum Slope Degree:
17
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
5
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High (VI):
172
RPM Low (II):
71
RPM Medium (IV):
117
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
13
Watts Medium:
35
Wet Rated:
Yes


Additional Information:
  • 3 Speed Ac Motor With Reverse Switch
  • 5939 Cfm On High
  • Limited Lifetime Warranty
  • Pull Chain Operated
  • Set Of (5) Wet Rated Blades In Multiple Finish Options Included And Light Kit Adaptable (sold Separately)
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
