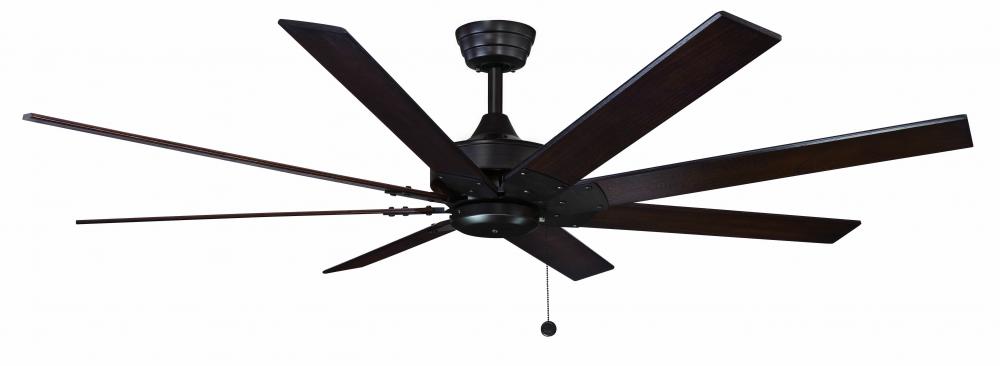

Levon - 63 inch - DZ with CYDWA Blades (K2EM)

Image may not reflect selected features

No Image
Available

BASE PRICE:

158

/ / 1

($158.50 / 1)

WAS

Call for Price

Item #:

K2EM

Dimensions:

Height: 14.50"

Width: 63.00"

Length: 63.00"

Availability:

Manufacturer has 118 items available.
This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.

Energy Information at High Speed

Airflow:

5878 Cubic Feet per Minute

Electricity Rate:

66 Watts (excluded lights)

Airflow Efficiency:

89 Cubic Feet Per Minute Per Watt

Description

Details

Downloads

The Levon by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levons eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon is available in oil rubbed bronze finish with walnut blades and accommodates a ceiling slope up to 30 degrees. *Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Bronze

Style:

Traditional

Option:

Dry Rated

Voltage:

10-99

Number of Blades:

8+ Blades

Subfinish:

Dark Bronze

Location Rating:

Dry Rated

Category:

Fan-Uni

Finish:

Dark Bronze

Option:

Dry Rated

Family:

Levon Ac

Voltage:

120 V

Additional Info:

3 speed AC motor with reverse switch , 5878 CFM on High , Limited Lifetime Warranty , Pull Chain Operated , Set of (8) 63 inch blades with optional finishes included , WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

5878

Air Flow Efficiency:

Amperage:

0.55

Blade Finish:

Cherry/Dark Walnut

Blade Pitch:

Canopy:

5.75 Dia x 2.57 H

Diameter:

9.06

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

Light Kit Included:

Material:

Buttonwood

Motor Fan Speed:

Motor RPM:

105

Motor Size:

188 x 25

Motor Type:

Ship Carton Height:

11.02

Ship Carton Length:

28.62

Ship Carton Width:

12.09

Ship Weight:

26.5

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

23.8

Airflow Efficiency Low:

168

Airflow Efficiency Medium:

121

Avg Airflow Efficiency:

102

Avg CFM Energy:

4273

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Painted

Blade Material:

Buttonwood

Blade Reversible:

Yes

Blade Sweep:

Canopy Diameter:

5.75 Dia

Canopy Height:

2.57 H

Cap Included:

Carton Cubic Feet:

2.21

Cartons Per Unit:

Case Height:

11.02

Case Length:

28.62

Case Quantity:

Case Weight Pounds:

26.5

Case Width:

12.09

CEC Uploaded:

Yes

Ceiling To Blade Edge:

Ceiling To Bottom:

14.5

CFM Low:

2454

CFM Medium:

3607

Compatible Accessories:

CCK8002DZ, DR1-12DZ, DR1-18DZ, DR1-24DZ, DR1-36DZ, DR1-48DZ, DR1-60DZ, DR1-72DZ, DR1-CPDZ, SCB1-52

Compatible Controls:

BTCR9, BTR9, CR500, CRL4WH, WFR50

Compatible Light Kits:

F5DZ, F6DZ, F8DZ, LK179DZW

Compatible Wall Controls:

CW5LA, CW5WH, CWRL4LA, CWRL4WH, WC1WH, WC2WH, WR500WH, WR501WH

Country of Origin:

China

Current Draw High:

0.55

Current Draw Low:

0.26

Current Draw Medium:

0.37

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

Dry Rated:

Yes

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

9.06

Included Control Type:

Pull Chain

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

105

RPM Low (II):

RPM Low II:

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Additional Information:

3 Speed Ac Motor With Reverse Switch
5878 Cfm On High
Limited Lifetime Warranty
Pull Chain Operated
Set Of (8) 63 Inch Blades With Optional Finishes Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
