Obvi - 22 inch - BL (K3C5)

Image may not reflect selected features
No Image
Available
Obvi - 22 inch - BL
additional image
BASE PRICE:
$
720
50
/ / 1
($720.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
K3C5
Dimensions:
Height: 19.96"
Width: 26.43"
Length: 26.43"
Availability:
  • Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
1426 Cubic Feet per Minute
Electricity Rate:
26 Watts (excluded lights)
Airflow Efficiency:
55 Cubic Feet Per Minute Per Watt
Recommended Items
Description
Details
Downloads

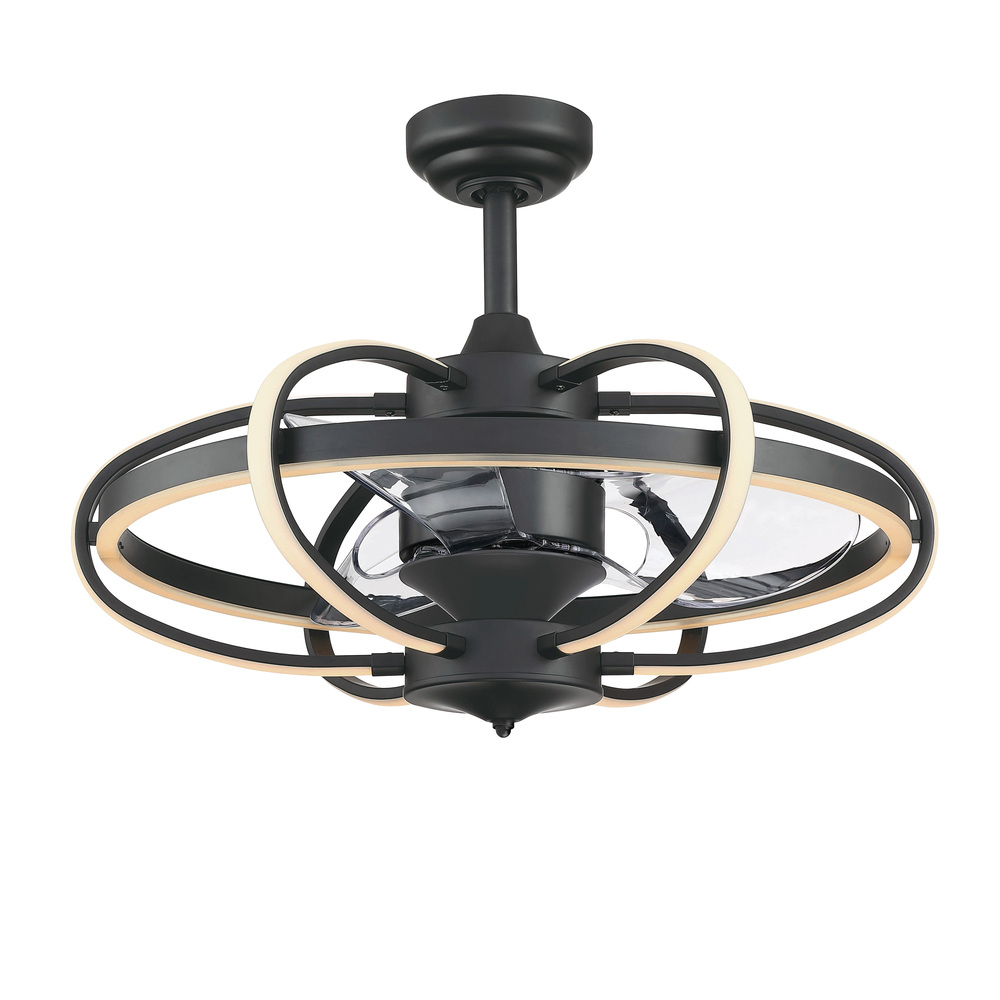

The Obvi by Fanimation is the obvious choice for uniqueness in trend and style. This ceiling fan includes a set of three clear blades and six LED side lights as well as a LED center band light with opal frosted shades. The Obvi encompasses comfort and design that is perfect for any room in the home. ?Dry Rated for indoor use only ?Can be controlled using the Fanimation Bluetooth fanSync app ?Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Black
Style:
Traditional
Option:
Dry Rated , LED
Voltage:
10-99
Lumens:
1101-1600
Number of Blades:
3 Blades
Location Rating:
Dry Rated
Wattage:
20w
Category:
Fan-Uni
Finish:
Black
Option:
Dry Rated
Family:
Obvi
Voltage:
120 V
Number of Bulbs:
6 Bulbs
Additional Info:
1516 CFM on High , Compatible with most Smart home devices (required controls sold separately) , Limited Lifetime Warranty , Set of (3) clear blades and (6) 4 watt LED side lights and 24 watt LED center band included , TR205D handheld remote with 23A battery included , Variable speed DC Motor with reverse switch
Air Flow CFM:
1426
Air Flow Efficiency:
55
Amperage:
0.42
Blade Finish:
Clear
Blade Pitch:
Varied
Bulb Type:
4 Watt LED
Canopy:
5.83 Dia x 2.17 H
Diameter:
26.43
Down Rod Included:
6
Electricity Used:
26
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
26.43
Light Kit Included:
Yes
Lumens / Light Output:
2580
Material:
Composite
Motor Fan Speed:
16
Motor RPM:
382
Motor Size:
153 X 12
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
15.71
Ship Carton Length:
29.02
Ship Carton Width:
27.44
Ship Weight:
29.34
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
21.16
Airflow Efficiency Low:
123
Airflow Efficiency Medium:
64
Avg Airflow Efficiency:
62
Avg CFM Energy:
1177
Avg Energy Use Watts:
19
Avg Estimated Yearly Energy Cost:
5
Avg Estimated Yearly Energy Cost on HIGH:
7
Blade Finish Method:
Injected
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
22
Bulb Base:
Connector Pin
Bulb Color Temp 2:
3000
Bulb CRI:
90
Bulb CRI 2:
90
Bulb Lumens 2:
1370
Bulb Max Wattage 2:
6
Bulb Quantity 2:
4
Bulb Type-2:
6 W LED
Bulb Wattage:
4
Canopy Diameter:
5.83 Dia
Canopy Height:
2.17 H
Cap Included:
No
Carton Cubic Feet:
7.24
Cartons Per Unit:
1
Case Height:
15.71
Case Length:
29.02
Case Quantity:
1
Case Weight Pounds:
29.34
Case Width:
27.44
CEC Uploaded:
Yes
Ceiling To Blade Edge:
14.91
Ceiling To Bottom:
19.8
CFM Low:
817
CFM Medium:
1310
Compatible Accessories:
CCK8002BL, DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, DR1-CPBL, SCK1-52BL
Compatible Wall Controls:
TW206D
Country of Origin:
China
CRI:
90
Current Draw High:
0.39
Current Draw Low:
0.11
Current Draw Medium:
0.32
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
6
Dry Rated:
Yes
Exempt from DOE Procedure:
Yes
Fan Energy Star:
No
Housing Diameter:
26.43
Included Control:
TR205D
Included Control Type:
Handheld
Leadwire:
54
Light Kit Energy Star:
No
Max Ceiling Slope:
19
Max Watt:
26
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
386
RPM Low (II):
219
RPM Medium (IV):
356
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
7
Watts Medium:
20
Watts Per Bulb:
4, 6


Additional Information:
  • 1516 Cfm On High
  • Compatible With Most Smart Home Devices (required Controls Sold Separately)
  • Limited Lifetime Warranty
  • Set Of (3) Clear Blades And (6) 4 Watt Led Side Lights And 24 Watt Led Center Band Included
  • Tr205d Handheld Remote With 23a Battery Included
  • Variable Speed Dc Motor With Reverse Switch
