Odyn - 84 inch - BLW with BL Blades and LED Light Kit (G7JG)

Image may not reflect selected features
No Image
Available

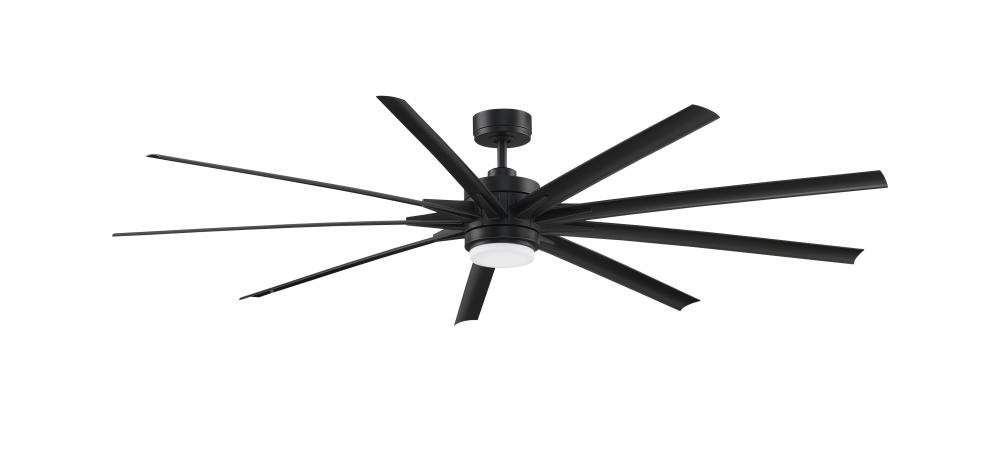

Odyn - 84 inch - BLW with BL Blades and LED Light Kit
BASE PRICE:
$
968
50
/ / 1
($968.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
G7JG
Dimensions:
Height: 22.64"
Width: 84.00"
Length: 84.00"
22.33 , 22.64
Availability:
  • Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
11293 Cubic Feet per Minute
Electricity Rate:
34 Watts (excluded lights)
Airflow Efficiency:
325 Cubic Feet Per Minute Per Watt
Recommended Items
Description
Details
Downloads
The Odyn, by Fanimation, knows its the boss whenever it enters a room. Its magnificence commands immediate attention and will surely dazzle onlookers. The Odyn's DC motor allows this fan to consume up to 70% less energy. The Odyn can accommodate up to an 84 inch blade sweep and operates on six forward and reverse speeds. The fan includes a remote control, integrated LED with CCT Select Temperature settings, and a cap for use without the light. Blades sold separately. *Wet Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use
Category:
Exterior , Fans
Subcategory:
Exterior Fans , Outdoor Fans
Finish:
Black
Style:
Traditional
Option:
Energy Star , Wet Rated , LED
Voltage:
10-99
Glass Finish or Style:
Frosted , Opal
Lumens:
1101-1600
Number of Blades:
8+ Blades
Location Rating:
Wet Rated
Wattage:
18w
Category:
Fan-Uni
Finish:
Black
Option:
Wet
Family:
Odyn 84
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
10,236 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable fan speeds, light control, sleep timer, home away, fresh air , ENERGY STAR Most Efficient 2020 , Set of (9) 84 inch Wet Rated blades and 18 watt LED light kit with cover and bulb included , TR205 handheld remote with CR2032 batteries included
Air Flow CFM:
11293
Air Flow Efficiency:
325
Amperage:
0.45
Blade Finish:
Black
Blade Pitch:
12
Blade Span:
84
Bulb Type:
18 Watt LED Module
Canopy:
6.46 Dia x 2.58 H
Diameter:
8.27
Down Rod Included:
6
Electricity Used:
34
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
84
Light Kit Included:
Yes
Lumens / Light Output:
1500
Material:
Composite
Motor Fan Speed:
16
Motor RPM:
70
Motor Size:
DC165NL
Motor Type:
DC
Remote Control Included:
TR205D
Ship Carton Height:
12.87
Ship Carton Length:
40.08
Ship Carton Width:
10.47
Ship Weight:
38.5
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
34.73
Airflow Efficiency Low:
1181
Airflow Efficiency Medium:
627
Avg Airflow Efficiency:
399
Avg CFM Energy:
9916
Avg Energy Use Watts:
25
Avg Estimated Yearly Energy Cost:
7
Avg Estimated Yearly Energy Cost on HIGH:
10
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
84
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
18
Canopy Diameter:
6.46 Dia
Canopy Height:
2.58 H
Cap Included:
Yes
Carton Cubic Feet:
3.13
Cartons Per Unit:
1
Case Height:
12.87
Case Length:
40.08
Case Quantity:
1
Case Weight Pounds:
38.5
Case Width:
10.47
CEC Uploaded:
Yes
Ceiling To Blade Edge:
18.2
Ceiling To Bottom:
22.33 , 22.64
CFM Low:
4630
CFM Medium:
8460
Compatible Accessories:
CCK8002BLW, DR1-CPBL, DR1SS-12BLW, DR1SS-18BLW, DR1SS-24BLW, DR1SS-36BLW, DR1SS-48BLW, DR1SS-60BLW, DR1SS-72BLW, SCB1-52
Compatible Wall Controls:
TW306
Country of Origin:
China
CRI:
90
Current Draw High:
0.46
Current Draw Low:
0.07
Current Draw Medium:
0.2
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
12
Exempt from DOE Procedure:
No
Fan Energy Star:
Yes
Housing Diameter:
8.27
Included Control:
TR305
Included Control Type:
Handheld
Leadwire:
80
Light Kit Energy Star:
Yes
Max Ceiling Slope:
27
Max Watt:
35
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
9
Number Of Speeds:
16
Regulated Product:
Yes
Reverse Switch Location:
Control
RPM High (VI):
69
RPM Low (II):
29
RPM Medium (IV):
50
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
4
Watts Medium:
14
Watts Per Bulb:
18
Wet Rated:
Yes


Additional Information:
  • 10,236 Cfm On High
  • Compatible With Most Smart Home Devices (required Controls Sold Separately)
  • Dc Motor With Reverse Switch, Variable Fan Speeds, Light Control, Sleep Timer, Home Away, Fresh Air
  • Energy Star Most Efficient 2022
  • Set Of (9) 84 Inch Wet Rated Blades And 18 Watt Led Cct Select Light Kit With Cover And Bulb Included
  • Tr305 Handheld Remote With 23a Battery Included
