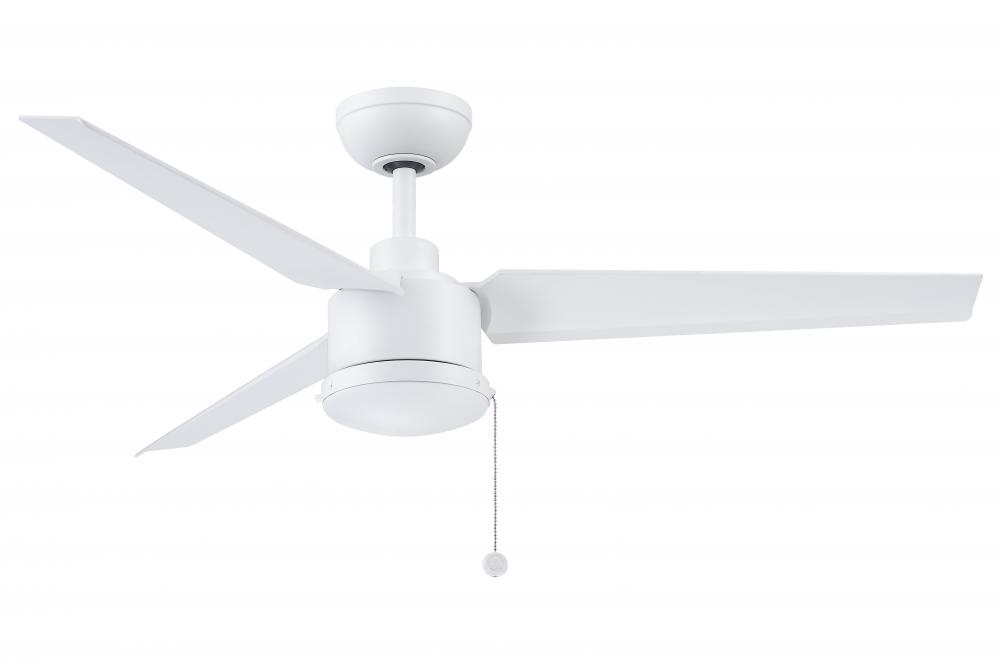

PC/DC - 52 Inch - MW with MW Blades (K4AV)

Image may not reflect selected features
No Image
Available
PC/DC - 52 Inch - MW with MW Blades
BASE PRICE:
$
300
50
/ / 1
($300.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
K4AV
Dimensions:
Height: 14.91"
Width: 52.00"
Length: 52.00"
Availability:
  • Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
5664 Cubic Feet per Minute
Electricity Rate:
28 Watts (excluded lights)
Airflow Efficiency:
201 Cubic Feet Per Minute Per Watt
Description
Details
Downloads
The Fanimation PC/DC Ceiling Fan is one of the newest inspirations, featuring Fanimation's first Pull Chain Ceiling Fan with a DC motor. The PC/DC is an indoor/outdoor 52 inch Ceiling Fan that offers Black, Matte White and Silver wet rated finishes with blades included, as well as an optional LED light kit. The PC/DC Fanimation Ceiling Fan has a look of sophistication and smooth structure, that can be displayed inside or outside the home. *Wet rated for Indoor/Outdoor use *Reverse airflow for multi-season use *Pull Chain motor control
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
White
Style:
Traditional
Option:
Wet Rated
Voltage:
10-99
Number of Blades:
3 Blades
Location Rating:
Wet Rated
Wattage:
8w
Category:
Fan-Uni
Finish:
Matte White
Option:
Wet
Family:
Pc/dc
Voltage:
120 V
Additional Info:
16 speed DC motor with reverse switch, fan and light control , CHINA , Energy Star Most Efficient 2022 , Limited Lifetime Motor Warranty , Pull Chain Control , Set of (3) 52 inch wet rated blades included with optional 18 watt LED light kit (sold separately)
Air Flow CFM:
5664
Air Flow Efficiency:
201
Amperage:
0.44
Blade Finish:
Matte White
Blade Pitch:
13
Blade Span:
52
Canopy:
6.3 Dia x 2.56 H
Diameter:
7.52
Down Rod Included:
6
Electricity Used:
28
Harmonized Codes:
8414.51.3000
Length:
52
Light Kit Included:
No
Material:
Composite
Motor Fan Speed:
16
Motor RPM:
171
Motor Size:
100 X 30
Motor Type:
DC
Ship Carton Height:
12.2
Ship Carton Length:
27.95
Ship Carton Width:
9.84
Ship Weight:
18.96
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
13.01
Airflow Efficiency Low:
902
Airflow Efficiency Medium:
449
Avg Airflow Efficiency:
202
Avg CFM Energy:
3813
Avg Energy Use Watts:
19
Avg Estimated Yearly Energy Cost:
5
Avg Estimated Yearly Energy Cost on HIGH:
8
Blade Finish Method:
Painted
Blade Material:
Composite
Blade Pitch Degrees:
13
Blade Reversible:
No
Blade Sweep:
52
Canopy Diameter:
6.3 Dia
Canopy Height:
2.56 H
Cap Included:
No
Carton Cubic Feet:
1.94
Case Height:
12.2
Case Length:
27.95
Case Quantity:
1
Case Weight Pounds:
18.96
Case Width:
9.84
CEC Uploaded:
Yes
Ceiling To Blade Edge:
10.24
Ceiling To Bottom:
14.91
CFM Low:
1641
CFM Medium:
3693
Compatible Accessories:
CCK8002MWW, DR1-CPMW, DR1SS-12MWW, DR1SS-18MWW, DR1SS-24MWW, DR1SS-36MWW, DR1SS-48MWW, DR1SS-60MWW, DR1SS-72MWW, SCB1-52
Country of Origin:
China
Current Draw High:
0.44
Current Draw Low:
0.06
Current Draw Medium:
0.16
DOE Classification:
LSSD
DOEFTC Uploaded:
Yes
Downrod Length:
6
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
7.52
Included Control Type:
Pull Chain
Leadwire:
54
Light Kit Energy Star:
No
Max Ceiling Slope:
27
Max Watt:
28
Maximum Slope Degree:
27
Motor Finish Method:
Painted
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High (VI):
171
RPM Low (II):
54
RPM Medium (IV):
114
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
2
Watts Medium:
8
Wet Rated:
Yes


Additional Information:
  • 3 Speed Dc Motor With Reverse Switch, Fan And Light Control
  • Energy Star Most Efficient 2022
  • Limited Lifetime Motor Warranty
  • Pull Chain Control
  • Set Of (3) 52 Inch Wet Rated Blades Included With Optional 18 Watt Led Light Kit (sold Separately)
