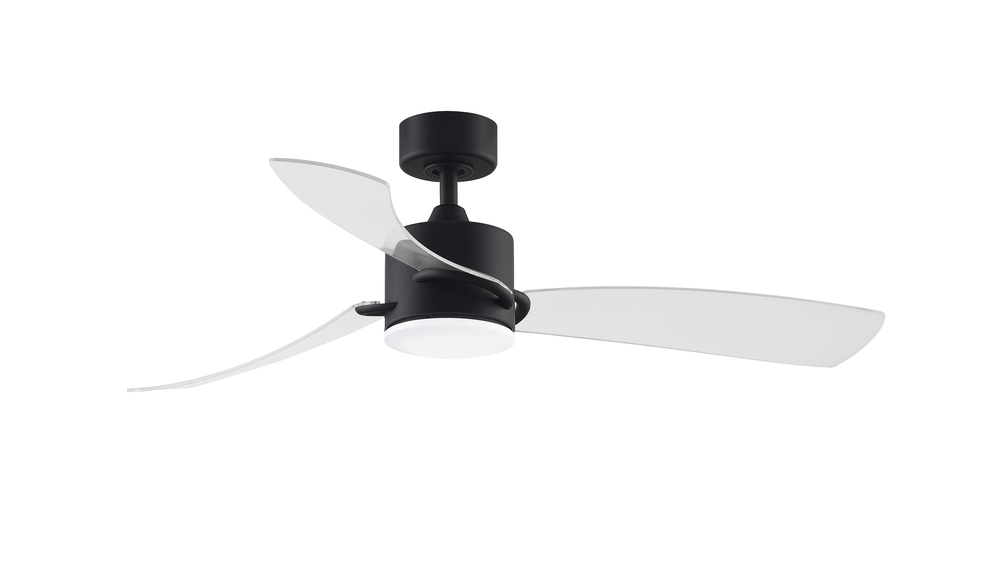

SculptAire - 52 inch - BL with LED Light (K1DH)

Image may not reflect selected features
No Image
Available
SculptAire - 52 inch - BL with LED Light
additional image
BASE PRICE:
$
484
50
/ / 1
($484.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
K1DH
Dimensions:
Height: 13.88"
Width: 52.00"
Length: 52.00"
Availability:
  • Manufacturer availability unavailable.
Energy Information at High Speed
Airflow:
4663 Cubic Feet per Minute
Electricity Rate:
58 Watts (excluded lights)
Airflow Efficiency:
80 Cubic Feet Per Minute Per Watt
Recommended Items
Description
Details
Downloads
Whether you choose a Black, Chrome, Brushed Satin Brass, or Matte White finish, the clear blades on SculptAire will keep you looking and feeling cool. This 52 inch fan has a 3 speed AC motor and comes with an 18 watt LED light kit and cover. *Brushed Satin Brass and Chrome finishes are Dry Rated for indoor use; while the Black and Matte White finishes are Damp Rated for indoor or outdoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Black
Style:
Transitional
Option:
Damp Rated , LED
Voltage:
10-99
Glass Finish or Style:
Frosted , Opal
Lumens:
1101-1600
Number of Blades:
3 Blades
Location Rating:
Damp Rated
Wattage:
18w
Category:
Fan-Uni
Finish:
Black
Option:
Damp
Family:
Sculptaire
Glass:
Opal Frosted
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Additional Info:
3 speed AC motor with reverse switch, fan speed, light controls and sleep timer features , 4663 CFM on High , Limited Lifetime Warranty , Set of (3) 52 inch clear blades and 18 watt LED light kit with cover and bulb included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)
Air Flow CFM:
4663
Air Flow Efficiency:
80
Amperage:
0.48
Blade Finish:
Clear
Blade Pitch:
13
Bulb Type:
18 Watt LED Module
Canopy:
5.75 Dia x 2.57 H
Diameter:
7.48
Down Rod Included:
4.5
Electricity Used:
58
Harmonized Codes:
8414.51.3000
Kelvin:
3000
Length:
52
Light Kit Included:
Yes
Lumens / Light Output:
1500
Material:
Composite
Motor Fan Speed:
3
Motor RPM:
130
Motor Size:
153 x 20
Motor Type:
AC
Remote Control Included:
TR500
Ship Carton Height:
10
Ship Carton Length:
25.98
Ship Carton Width:
11.93
Ship Weight:
21.61
Sold By:
Each
Warranty:
Limited Lifetime
Weight:
18.11
Airflow Efficiency Low:
147
Airflow Efficiency Medium:
105
Avg Airflow Efficiency:
101
Avg CFM Energy:
3868
Avg Energy Use Watts:
38
Avg Estimated Yearly Energy Cost:
11
Avg Estimated Yearly Energy Cost on HIGH:
16
Blade Finish Method:
Injected
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Bulb Base:
Connector Pin
Bulb CRI:
90
Bulb Wattage:
18
Canopy Diameter:
5.75 Dia
Canopy Height:
2.57 H
Cap Included:
Yes
Carton Cubic Feet:
1.79
Cartons Per Unit:
1
Case Height:
10
Case Length:
25.98
Case Quantity:
1
Case Weight Pounds:
21.61
Case Width:
11.93
CEC Uploaded:
Yes
Ceiling To Blade Edge:
11.83
Ceiling To Bottom:
13.88
CFM Low:
1980
CFM Medium:
3276
Compatible Accessories:
CCK8002BL, DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, DR1-CPBL, SCB1-52
Compatible Controls:
BTCR9, BTR9, CRL4WH, WFR50
Compatible Wall Controls:
CWRL4LA, CWRL4WH, WC2WH, WR501WH
Country of Origin:
China
CRI:
90
Current Draw High:
0.48
Current Draw Low:
0.23
Current Draw Medium:
0.35
Damp Rated:
Yes
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
DOEFTC Uploaded:
Yes
Downrod Length:
4.5
Exempt from DOE Procedure:
No
Fan Energy Star:
No
Housing Diameter:
7.48
Included Control:
TR500
Included Control Type:
Handheld
Leadwire:
54
Light Kit Energy Star:
No
Max Ceiling Slope:
27
Max Watt:
58
Maximum Slope Degree:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Regulated Product:
Yes
Reverse Switch Location:
Motor Housing
RPM High (VI):
130
RPM Low (II):
56
RPM Medium (IV):
93
Safety Rating:
UL Approved, cUL Approved
Voltage Cycles:
60 hz
Watts Low:
14
Watts Medium:
31
Watts Per Bulb:
18


Additional Information:
  • 3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Controls And Sleep Timer Features
  • 4663 Cfm On High
  • Limited Lifetime Warranty
  • Set Of (3) 52 Inch Clear Blades And 18 Watt Led Light Kit With Cover And Bulb Included
  • Tr500 Handheld Remote With 23a Battery Included
  • Wifi Or Bluetooth Compatible (required Controls Sold Separately)
