Swell 80" Smart Fan (9WXMA)

Image may not reflect selected features
No Image
Available

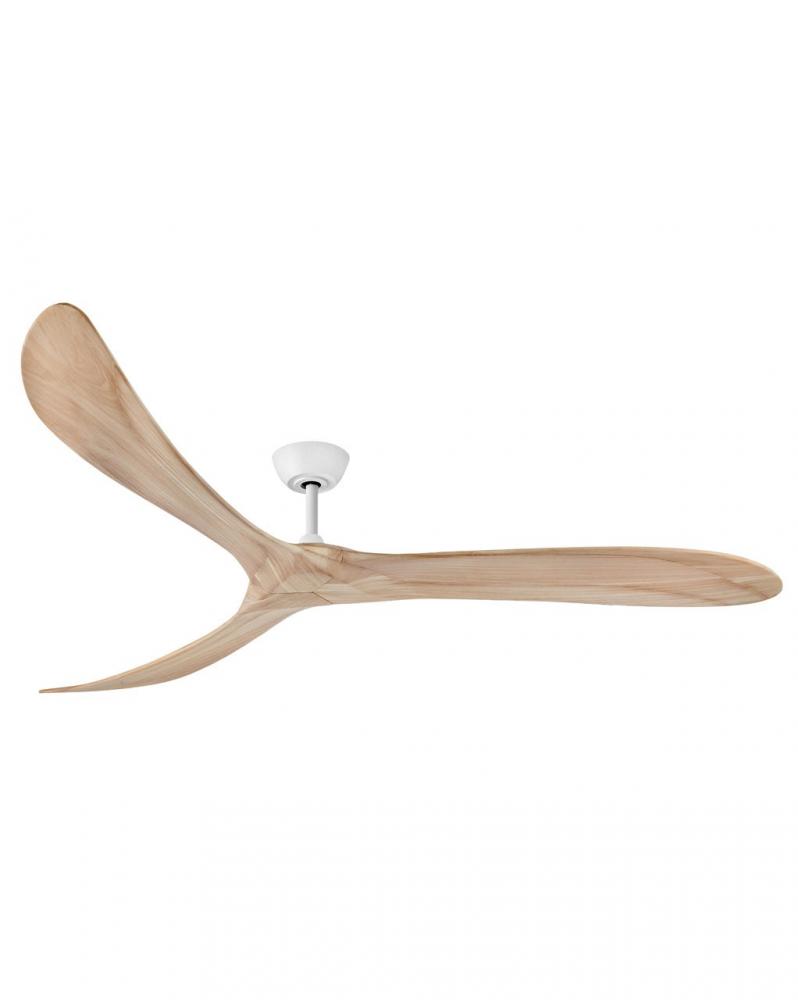

Swell 80" Smart Fan
additional image
BASE PRICE:
$
1011
50
/ / 1
($1011.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
9WXMA
Dimensions:
Height: 13.75"
Width: 80.00"
Length: 80.00"
Changes Other Selections...
Availability:
  • Manufacturer has 23 items available.
Description
Details
Downloads
Swell is sophisticated and distinct in design without sacrificing its purpose. Available in a variety of finish colors and combinations, Swell sets the tone for all contemporary spaces. Swell is damp rated, making it perfect for both interior and outdoor settings. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
White
Style:
Modern
Option:
Damp Rated
Category:
Fan
Finish:
Matte White
Style:
Modern
Family:
Swell
Voltage:
120 V
Air Flow Efficiency:
10955
Amperage:
0.5
Blade Finish:
Natural
Blade Pitch:
14
Blade Span:
80
Blades Included:
Yes
Canopy:
6 Dia. x 2.5 D
Introduction Date:
06/01/2023
Light Kit Included:
No
Material:
Steel
Motor Size:
130 x 16
Motor Type:
DC
Ship Carton Height:
11.42
Ship Carton Length:
42.91
Ship Carton Width:
12.6
Ship Weight:
20.29
Vendor Ship Method:
Parcel
Weight:
17.42
Airflow Avg:
8554
AMPS Avg:
0.3
Avg Energy Use:
20
Blade Material:
Wood
Blade Options Available:
No
Blade To Ceiling Height:
13.75
Blades Reversible:
No
Bulb Included:
No
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
Taiwan
Dual Mount:
No
Efficiency Avg:
433
Efficiency High:
276
Energy Cost Avg:
6
Energy Cost High:
11
Energy Use High:
39.7
Fan Control:
Yes
Flush Mount Fan:
No
Light Kit Adaptable:
Yes
Location Rating:
Damp Rated
Motor Fan Speed:
6
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
74
RPMS High:
102
Safety Rating:
ETL Approved, C-US Approved
Single Power Switch:
Yes
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
0.2
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No


Additional Information:
  • Add an optional light kit to customize the functionality of the fan
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Bold silhouette with dramatic details creates a modern statement
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • Motor carries a lifetime warranty
  • Powered by a highly efficient and quiet DC motor
  • Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
  • This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • This item may be hung on a sloped ceiling
  • WiFi compatible with included fan control
