Swell Illuminated 72" LED Smart Fan (9WXM7)

Image may not reflect selected features
No Image
Available

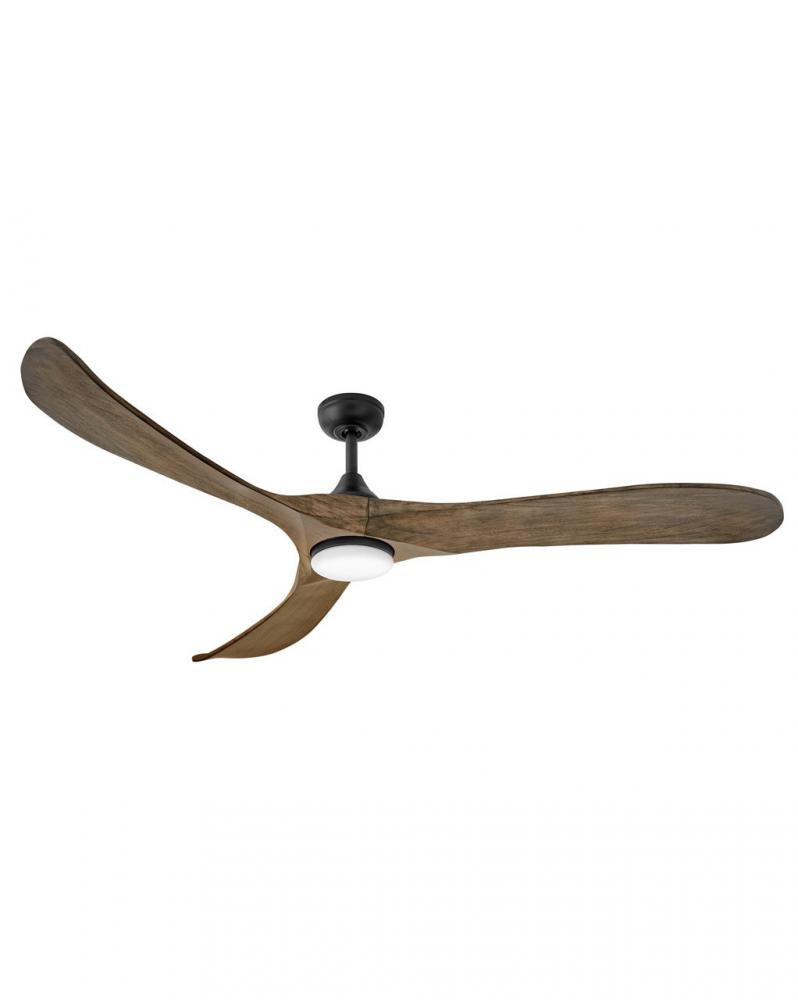

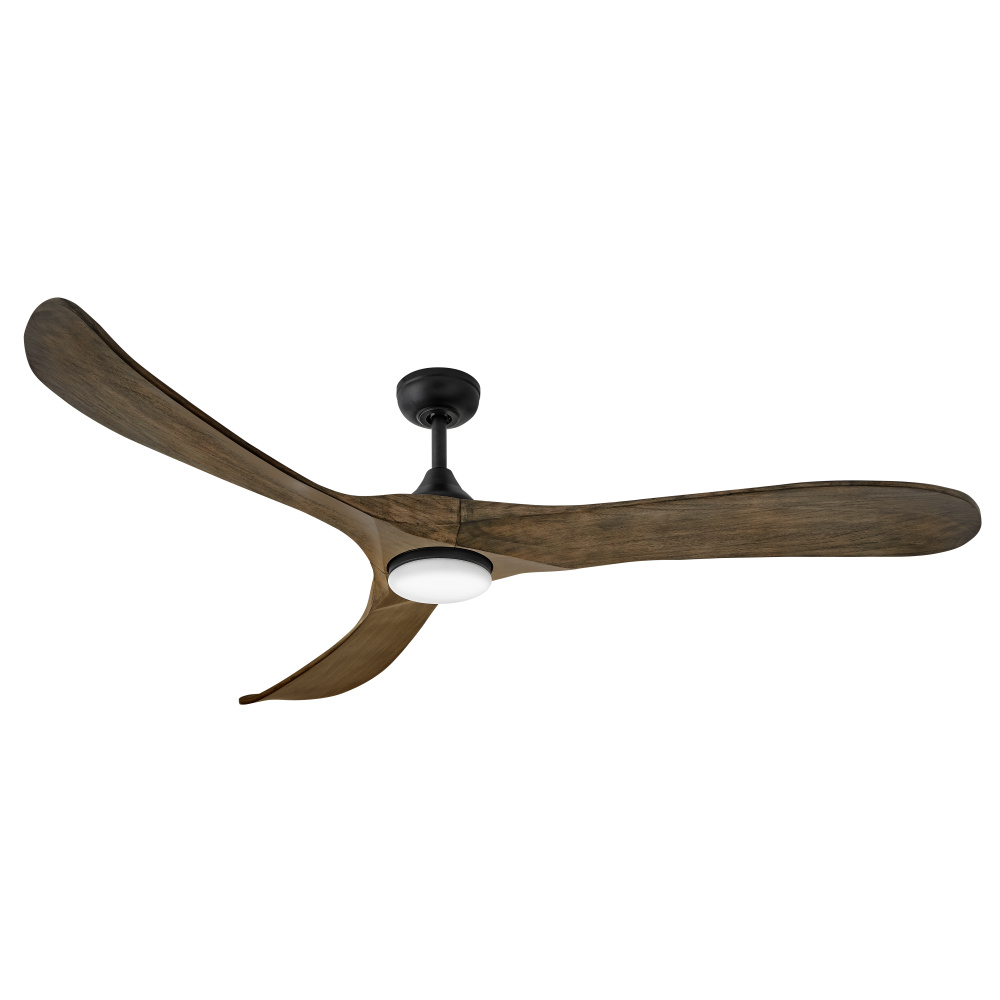

Swell Illuminated 72" LED Smart Fan
additional image
BASE PRICE:
$
1034
50
/ / 1
($1034.50 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
9WXM7
Dimensions:
Height: 15.00"
Width: 72.00"
Length: 72.00"
Changes Other Selections...
Changes Other Selections...
Availability:
  • Manufacturer has 127 items available.
Description
Details
Downloads
Sophisticated and distinct, Swell Illuminated perfectly sets the scene in contemporary spaces without sacrificing functionality - featuring integrated LEDs complemented by a variety of classic finish combinations. A versatile, damp-rated design makes Swell perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Black
Style:
Modern
Option:
Damp Rated
Category:
Fan
Finish:
Matte Black
Style:
Modern
Family:
Swell
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
8499
Amperage:
0.47
Blade Finish:
Driftwood
Blade Pitch:
10
Blade Span:
72
Blades Included:
Yes
Bulb Dimmable:
Yes - CL Type Dimmer (SSL7A)
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
6 Dia. x 2.25 D
Introduction Date:
01/01/2024
Kelvin:
3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Size:
DCS-30NS
Motor Type:
DC
Ship Carton Height:
12.1
Ship Carton Length:
37.9
Ship Carton Width:
15.4
Ship Weight:
31.9
Vendor Ship Method:
Parcel
Weight:
29.7
Airflow Avg:
6268
AMPS Avg:
0.27
Avg Energy Use:
24
Blade Material:
Wood
Blade Options Available:
No
Blade To Ceiling Height:
10.75
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
Taiwan
Dual Mount:
No
Efficiency Avg:
266
Efficiency High:
246
Energy Cost Avg:
7
Energy Cost High:
9.67
Energy Use High:
34.5
Fan Control:
Yes
Flush Mount Fan:
No
Incandescent Equivalency:
100 W
Light Kit Adaptable:
No
Light Source:
Integrated LED
Location Rating:
Damp Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
81
RPMS High:
112
Safety Rating:
UL Approved, C-US Approved
Single Power Switch:
No
Slope:
20
Sloped Ceiling Adaptable:
Yes
Stand By Power:
1.19
Title 24:
No
WIFI Control Included:
Yes
WIFI Control Optional:
No


Additional Information:
  • Blades, controls, switches, capacitors and hardware carry a 1-year warranty
  • Bold silhouette with dramatic details creates a modern statement
  • Fan Control included, HIRO Control - 6 Speed Reversing
  • Fans should be installed at a minimum of 7 feet from the floor
  • For more information on how to control your ceiling fan via the Hinkley Home Automation App, click here.
  • LED components carry a 5-year limited warranty
  • Motor carries a lifetime warranty
  • Suitable for use in damp locations as defined by NEC and CEC. Meets United States UL Underwriters Laboratories & CSA Canadian Standards Association Product Safety Standards.
  • This item includes a 6" down rod. Other various lengths of down rods are available and sold separately to customize the installation height.
  • This item includes a light kit cover
  • This item may be hung on a sloped ceiling
  • This product uses recyclable or limited packaging materials to help reduce waste.
  • WiFi compatible with included fan control
